16 Groups ID Code LED Zigbee DMX Transmitter/Receiver

16 Groups ID Code LED Zigbee DMX Transmitter/Receiver photo-1
Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Showjockey
Model Number:
SJ-DMX-WT16/SJ-DMX-WR16
Use:
Universal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Showjockey
Model Number SJ-DMX-WT16/SJ-DMX-WR16
Use Universal
Place of Origin Guangdong, China

Specifications

2.4G Wireless DMX512 Transmitter/Receiver
16 groups ID code for setting.
400M DMX Signal commnication
Easy for large project.

Features



1) 2.4G DMX512 wireless receiver/transmitter.



2) DMX signal terminal:3/5 pin XLR



3) Dimension:75*147*43 mm



4) Max transmitting power:20dBm



5) Receive sensitive:-94dBm



6) 2X8 bit LCD to display working condition.



7) 4 grades power output for option.



8) 2.4G ISM,126 frequencies band, FH design, and frequency-hopping synchronization automatically.



9)16 groups ID code for setting,User can use 16 groups individual wireless net without any interfere each other in the same place.



10) Input voltage9-12VDC 300mA min.



11) Communication distance: 400m(visible distance)











Application



Ideas for bars, disco, small programs, dance halls, music stores, mobile DJ, Stage lighting,  Disco hall,  Large literature performance,  Gymnasium lighting, Temporary stage performance,City lighting system, TV stationConference center,  professional showplace,  Topic park,  Bar lighting and so on.







Establishment of Communication



a. Power on DMX512 wireless receiver/transmitter



b. Press “PA” key to set transmitting power rate value, then press “ID” key to set ID code, receiver and transmitter must be the same ID value in the same grade net.



c. Please setting different ID code if you need use more than 1 group wireless net at the same time at the place.





Connection

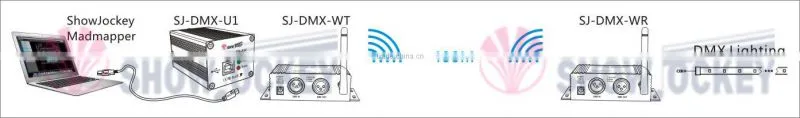

One DMX LED Controller and one group of DMX Wireless transmitter/Receiver.



16 Groups ID Code LED Zigbee DMX Transmitter/Receiver

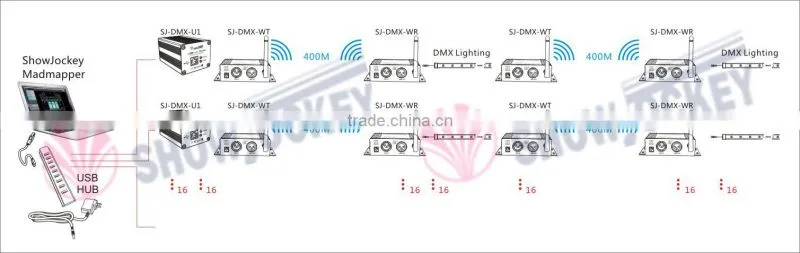

Several DMX LED Controllers and groups of DMX Wireless transmitters/Receivers



16 Groups ID Code LED Zigbee DMX Transmitter/Receiver

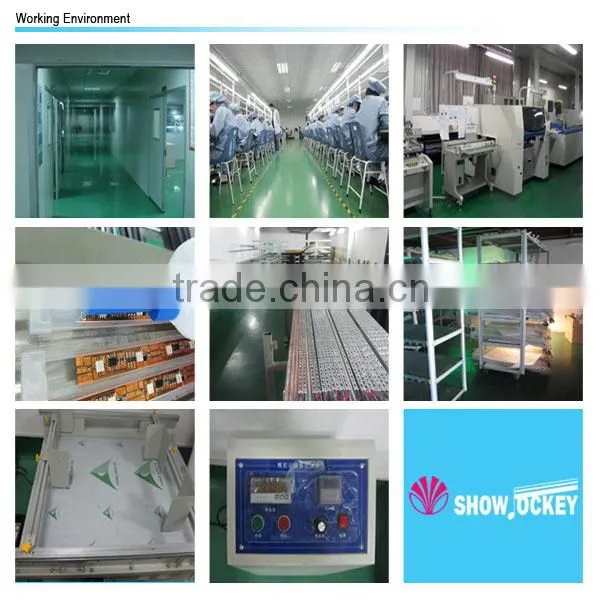

Working Environment

 16 Groups ID Code LED Zigbee DMX Transmitter/Receiver
