Specifications

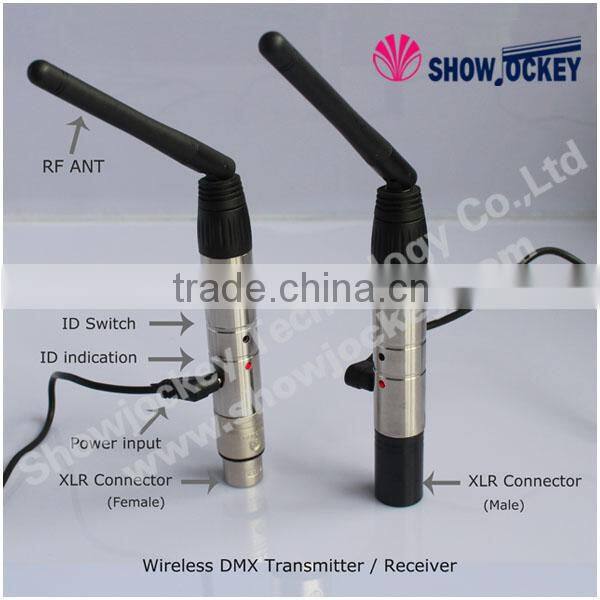

2.4G Wireless DMX512 Transmitter/Receiver7 groups ID code for setting.
400M DMX Signal commnication
Easy for large project.
v Features
1) 2.4G wireless DMX512 R/T.
2) Transmitting/receiving standard DMX512 protocol data of console,and the master-slaver on line signal of the same kind of lighting each other.
3) Single key to operate, tricolor LED indicator.
4) The LED indicator bright: No DMX or wireless signal.
5) Red LED flash:Transmitting.
6) Green LED flash:Receiving
7) 126 frequencies band, FH design, and frequency-hopping synchronization automatically.
8) 7 groups ID code to set these different wireless nets without any interfere each other in the same place.
9) Input voltage: 5VDC 500mA min.
10) Communication distance:500m(visible distance).
11) Max transmitting power: 20dBm.
12) Receiver sensitive: -94dBm.
13) Communication distance: 400M (visible distance).
14) Signal socket: 3/5pin male XLR.
v Application
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting,Temporary stage performance,City lighting system, TV station, Conference center, professional showplace, Topic park, Bar lighting and so on.
v Product Introduction.
v Establishment of Communication
a. Power on DMX512 wireless received board first and then following to power up the transmitted boards.
b. Press “ID Switch” button to set same ID value of transmitted board and received board;
Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
c. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section.
Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
d. Communication was established correctly.
v Connection

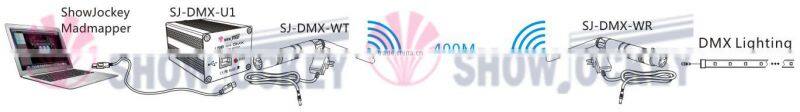

l One DMX LED Controller and one group of DMX Wireless transmitter/Receiver.

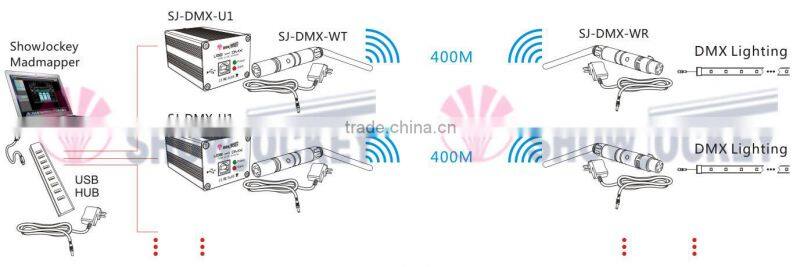

l Several DMX LED Controllers and groups of DMX Wireless transmitters/Receivers

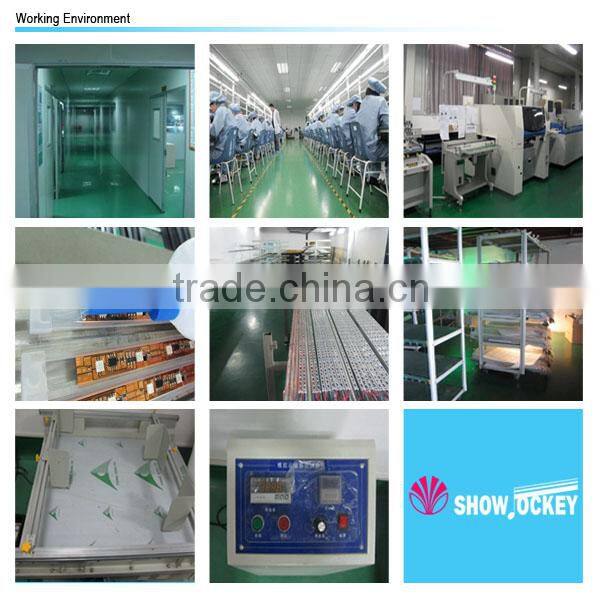

v Working Environment
v R&D Team
v Certification
v Our Service
1. Your inquiry related to our products or price will be replied within 24 hours.
2. All your inquiries will be well explained by our experienced staff .
3. Support customization, and more your ideas.
5. We will keep secret for customer area, design ideas and all private information.
v Why Showjockey
1) Supplier & Partner of Top 10 VJ softwares in worldwide.
2) Shopping mall supplier of Gaint LED Christmas Tree in worldwide.
3) Honest Operation, best after sales service, strong technique support.
