Application materials and industrial applications
1. By Industry: Widely used in sheet metal, metal products, steel, precision machinery, auto parts,
nameplates, advertising, handicrafts, electronics, toys, packaging and other industries.
2. Applicable material: Professional for cutting a variety of thin metal sheet, designed for cutting sheet 8mm
or less, can be processed carbon steel, stainless steel, aluminum, galvanized steel, titanium, galvanized plates and other metal materials.
Configuration parameters
1. Mechanical motion systems
Bilateral drive beam structure, including the basic structure beam body and bed, the main structure of the
main body driving beam and parallel structure compensation mechanism. X, Y direction of movement of both
ends of travel limit switches control travel, supplemented by an elastic cushion on both sides.

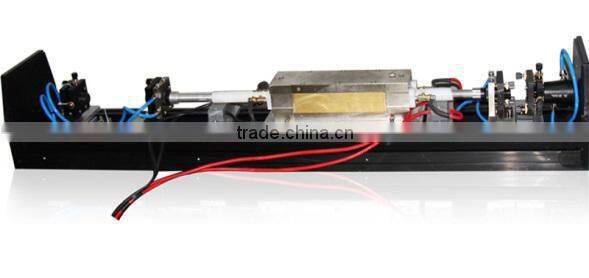

2. YAG laser source
Our company are cooperating with Shandong famous university, we together has been committed to the laser crystal, YAG lasers and the development, production and sales of cutting servo system, has for many years
for the domestic and foreign enterprises supply YAG laser system.
main technical parameters:
Laser type |
solid-state lasers |
||
Lasing medium |
Nd:YAG |
||
Laser wavelength |
1064 nm |
||
Rated output power |
600 W |
||
Effective cutting range |
1200×1200(mm) |
||
Maximum table bearing |
1600KG |
||
Rated power |
Three phase AC380V 50Hz |
||
Electrical power |
Z32KW |
||
|
Maximum cutting sheet metal thickness / pipe diameter range |
YAG-600W |
Carbon Steel: 8mm / stainless steel: 6mm |
Pipe diameter: 40-160mm |
YAG-750W |
Carbon Steel: 8mm / stainless steel: 6mm |
Pipe diameter: 40-160mm |
|
YAG-850W |
Carbon steel:10mm stainless steel:6mm |
Pipe diameter: 40-160mm |
|
Cost cutting process parameters and consumption analysis
Part of the process parameter
materiall |
thickness(MM) |
gas |
Maximum cutting speed |
Carbon steel |
1 |
Oxygen |
3m/min |
2 |
Oxygen |
1.2m/min |
|
5 |
Oxygen |
0.5m/min |
|
Stainless steel |
1 |
Oxygen |
3m/min |
3 |
Oxygen |
0.5m/min |
|
Aluminum alloy |
1 |
nitrogen |
2m/min |
2 |
nitrogen |
0.5m/min |

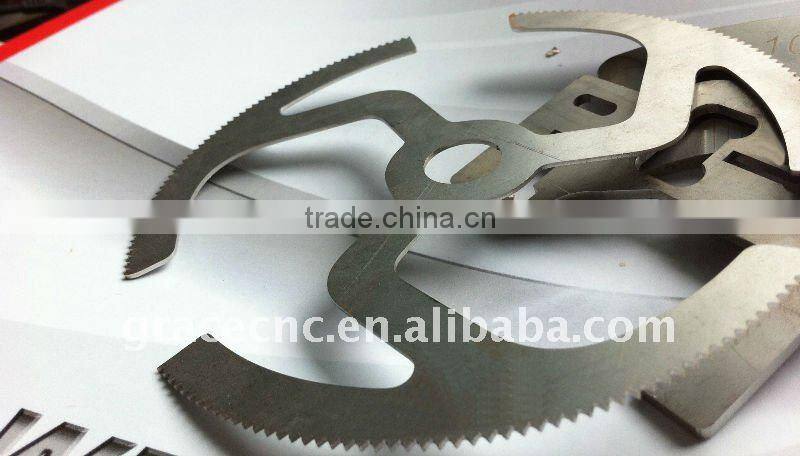

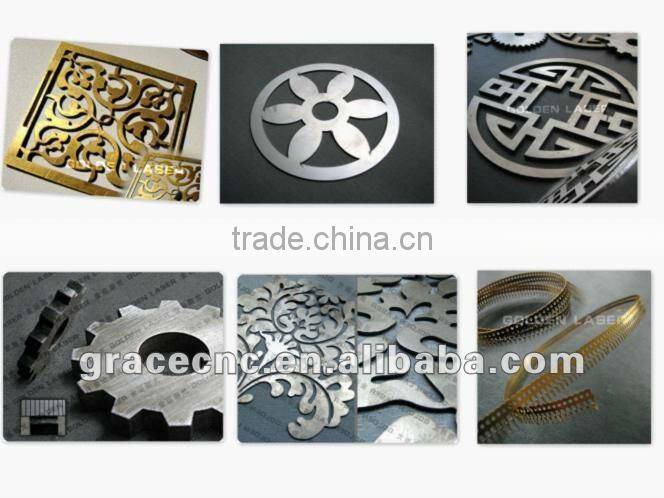

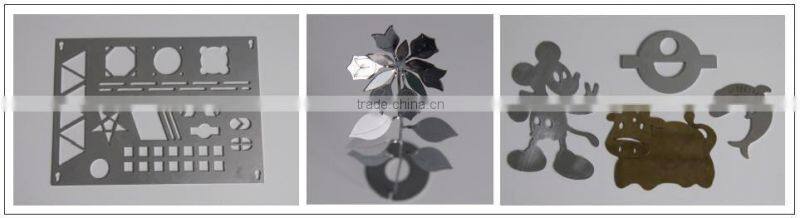

samples:

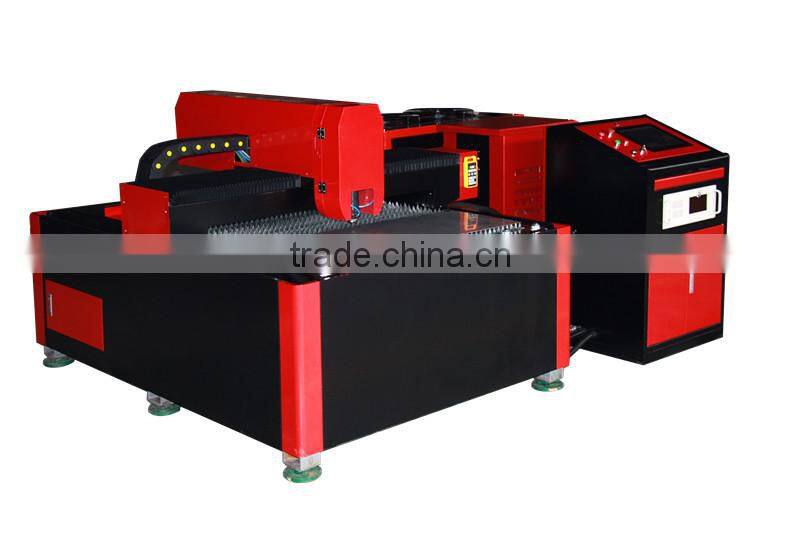

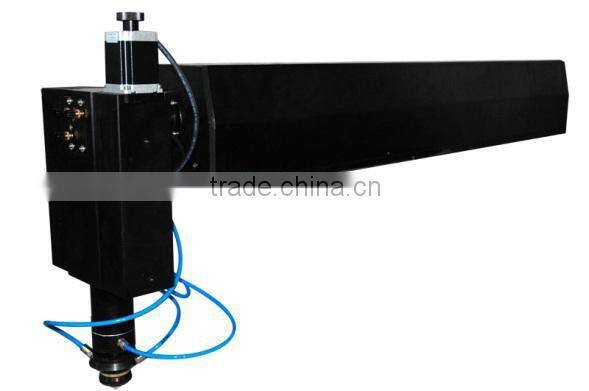

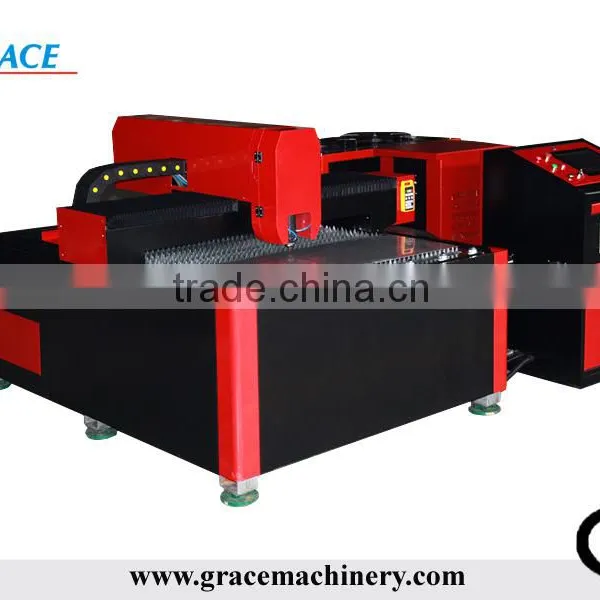

Machine pictures:
