High-power CO2 laser (mixed) Cutting Machine
Machine application:
For sheet metal manufacturing, aerospace, agricultural machinery, environmental protection machinery,
locomotive manufacturing and other manufacturing and processing industries, and equipment for metal
and nonmetal materials can be high-precision, high-quality, high efficiency machining. Safety and environmental protection and efficient, is the weapon of the
production and manufacturing of sheet metal processing industry.
Main features:
1, the laser generator shall axis fast flow CO2 laser.
2, cutting metal materials, but also cutting non-metallic materials, cutting thickness of 0.2-25mm
3, the device must have a constant laser optical technology, efficient heat exchange technology.
4, the laser generator must have the laser resonator technology and mechanical shutter technology.
5, the transmission shall be in gear, rack and chain support means mechanically transfer
6, the device must all be closed to ensure the safety and environmental processing.
7, the machine must have a feeder exchange system.
8, the machine upside down shall beam structure to ensure machine stability and creep minimized.
9, NC console operator can support the rotating easy operation.
10, the device must have genuine laser systems, laser cutting machine tool systems and servo system
11, the laser generator control required PLC control, the machine need to use special laser cutting machine
CNC CNC control operations.
12. The apparatus shall be equipped with special automatic nesting CAM software.
Parameters:
Machine processing capacity |
Machine name |
High-power CO2 laser (mixed) Cutting Machine |
|
|
Model |
G1530-CO2 |
|
|
Cutting range |
Flatbed material |
|
|
Cutting area |
1500×3000mm |
|
|
Cutting materials |
Carbon steel, stainless steel, wood, rubber, acrylic, metal and non-metallic materials |
|
|
Material thickness |
According to material density 0.2-25mm |
|
Laser technology indicators |
Laser type |
Axis fast flow co2 laser |
|
|
Incentives |
DC incentives |
|
|
Power adjustable range |
50W-4000W |
|
|
Wave |
10640nm |
|
|
Polarized form |
45°line polarization |
|
|
Adjustable pulse frequency range |
0-1khz |
|
|
Spot size |
Around 18mm |
|
|
Divergence angle |
≤1.5mrad(half-size) |
|
|
Laser radiation damage |
No radiation or trace radiation |
|
|
Control method |
PLC Automatic control + manual mode |
|
|
Working gas |
CO2,N2,He |
|
|
Weight |
2000kg |
|
Machine specifications |
x-axis travel |
3020mm |
|
|
y-axis travel |
1520mm |
|
|
z-axis travel |
150mm |
|
|
x/y-axis air-way speed |
120000mm/min |
|
|
x/y-axis positioning accuracy |
±0.03mm/m |
|
|
x/y-axis repeatability |
±0.01mm |
|
|
Rotary shaft positioning accuracy |
±0.01° |
|
|
Rotary shaft repeatability |
±0.005° |
|
|
x/y-axis transmission |
Imported gear rack drive |
|
|
Processing criteria |
Automatic processing head servo means |
|
|
Control system |
Germany PA8000CNC |
|
|
Machine guard |
Fully enclosed machine guard, automatic lift door |
|
|
countertops |
Interactive automatic double mesa |
|
|
weight |
Around 9600kg |
|
Advantages:
1, the narrowest kerf, minimal heat-affected zone, local deformation of the workpiece is extremely small, no mechanical deformation can start at any
point in any direction from the material cut;
2. A good controllability of non-contact processing, no tool wear, hardness of any material (including non-metallic) can be cut;
3, has a wide range of adaptability and flexibility, ease of automation, have unlimited profile cutting capacity;
4, no matter how simple or complex parts, can be a precision cut with a laser rapid prototyping;
5, the high degree of automation, simple operation, low labor intensity, no pollution; low production cost, good
economic returns.
Machine photos:

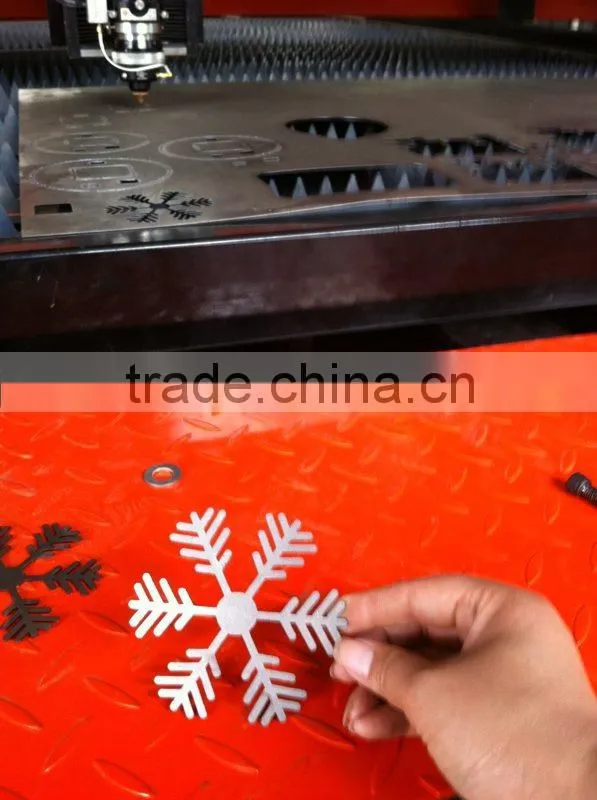

Samples:
Certificate:

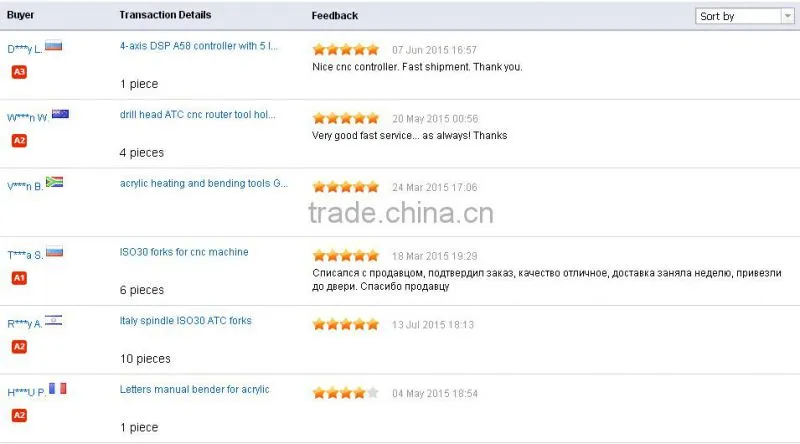

Customer feedback:
Contact us:
sales:Ma Qi
Skpe ID:Grace005
Tel:+86-531-88682639
Fax+86-531-88682638/39
Web:
