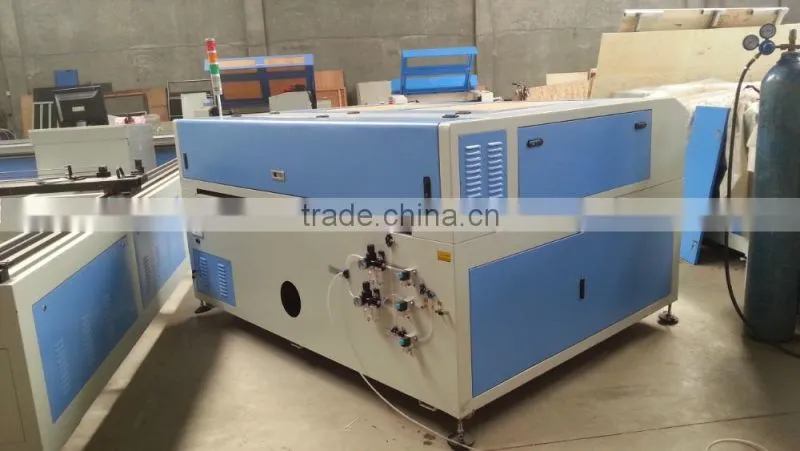

thin stainless steel cutting co2 laser G1612
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Machine Type: | Engraving Machine / CNC Router | Place of Origin: | Shandong, China |
Brand Name: | Grace | Model Number: | G1612 | Voltage: | 220v |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

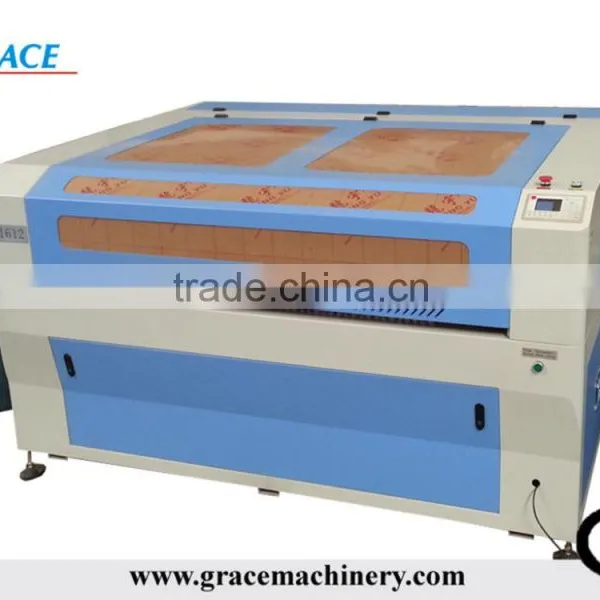

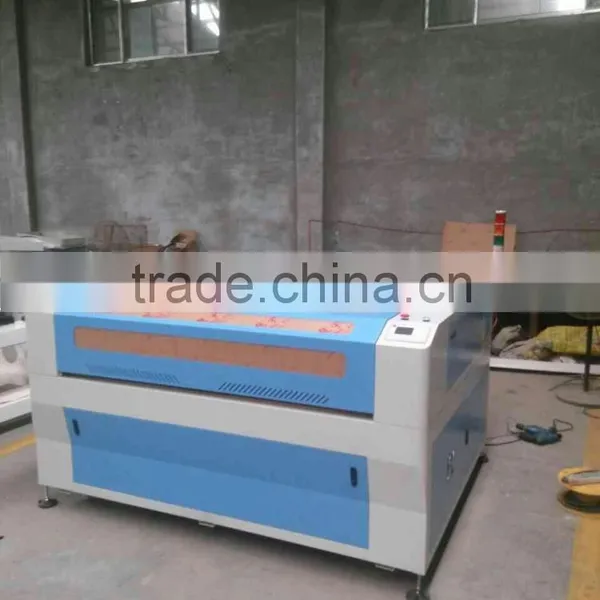

laser cutting machine G1612
Working area: 1600x1200mm
Power: 150w RECI
Laser tube type: 8000-10000 hours working life time
Control mode: USB interface
File export Software: READER
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: chiller cw5200
Table type: (engraving and cutting) strip type table.
360 degree slope engrave: Support
Specifications:
Laser power : | 150W (optional) |
Laser tube type: | CO2 glass tube |
Power supply: | AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Cooling way: | Water cooled with protection system |
Working area: | 1600mmx1200mm |
Max travel speed: | 60000mm/min |
Worktable: | Honey comb worktable (mainly engraving and small pieces cutting) /aluminum knife (engraving and cutting) /normal table (engraving) (optional) |
Locating precision: | <0.01mm |
Min shaping character: | Character:2mm,letter:<1mm |
Operating temperature: | 5°C-35°C |
Working humidity | 5%-95%(without condensed water) |
Resolution ratio: | 4500dpi |
Control configuration: | READER |
Data transfer interface: | USB(offline) |
System environment: | WINDOWS 2000/WINDOWS XP/ windows 7 |
Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT, CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT, FMV,GEM,CMX) etc. |
Compatible software | CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness | 0-20mm also (depends on different material) |
Color separation | Separation of cutting up to 256 colors |
Sloping engraving | Yes, slope can be designed discretionarily |
Cuts off the water supply the protection | yes |
Packing | Plywood case (veneer wood case for export) |
Application
1. Wood, bamboo, jade article, marble, organic glass, plastic, cloth, rubber, acrylic, paper, leather, ceremic, glass and other nonmetallic materials.
2. It can used in the fileds of advertising, gift working, leather, toy, model, building industry, computer embroidery cutting, paper packing and so on.
3. laser cutting machine nonmetallic materials engraving, cutting machine, materials like: wood, acrylic, rubber, leather, cloth

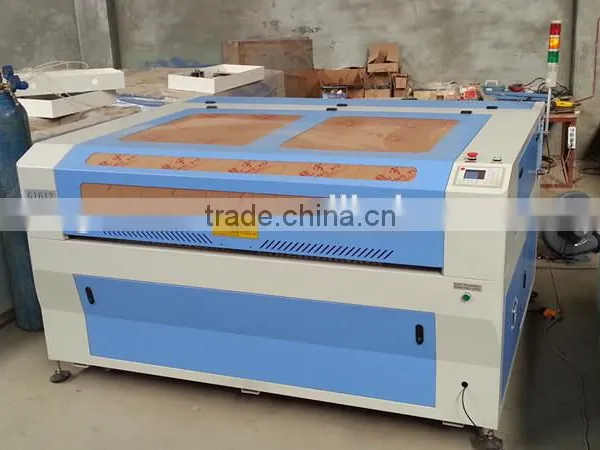

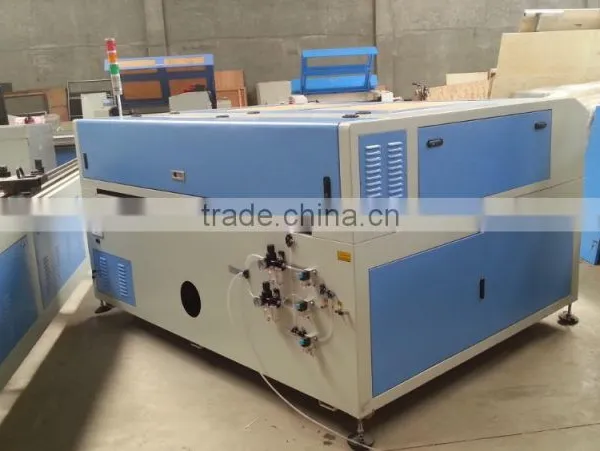

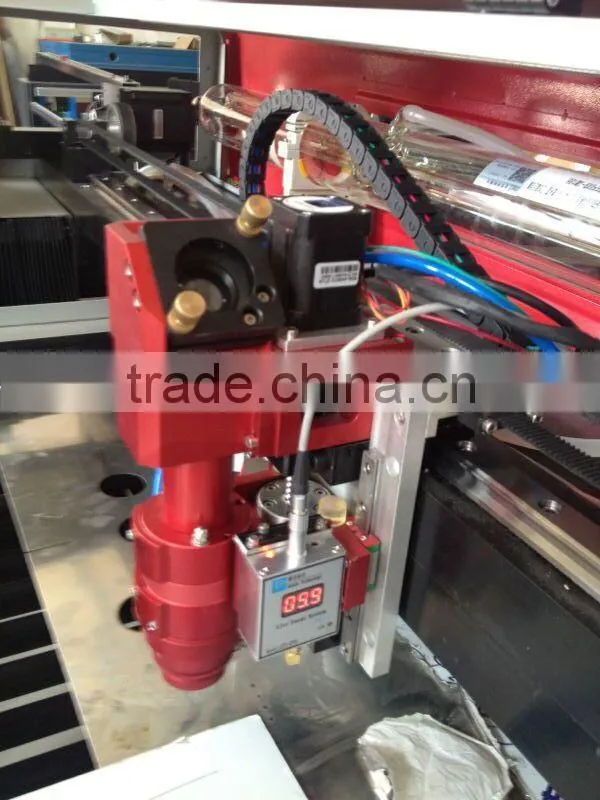

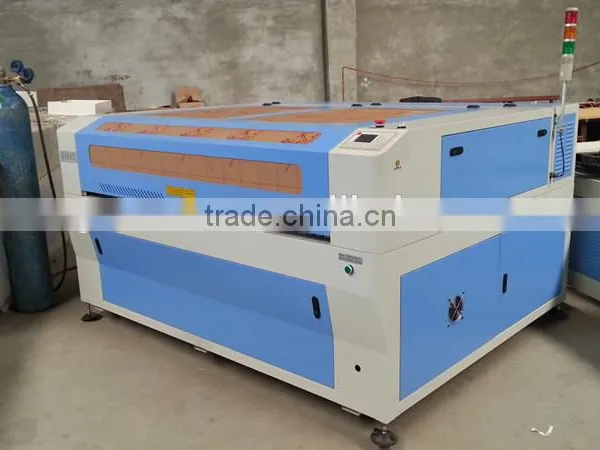

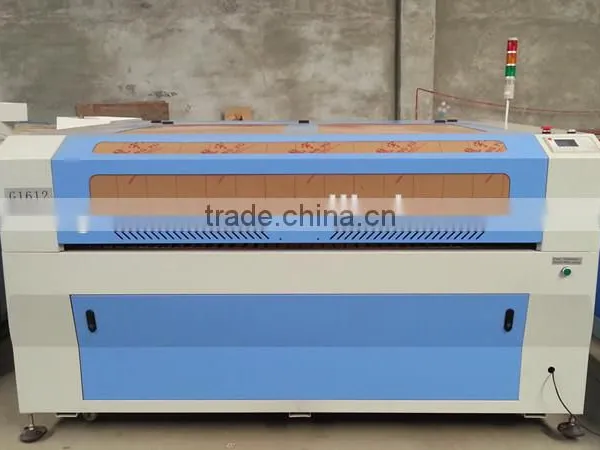

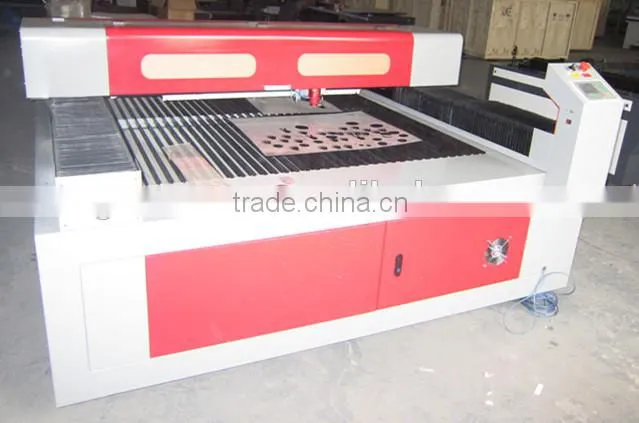

Other pictures
Packing and Transportion
Cetificate and machines at customer's place
Feedbacks from customers
