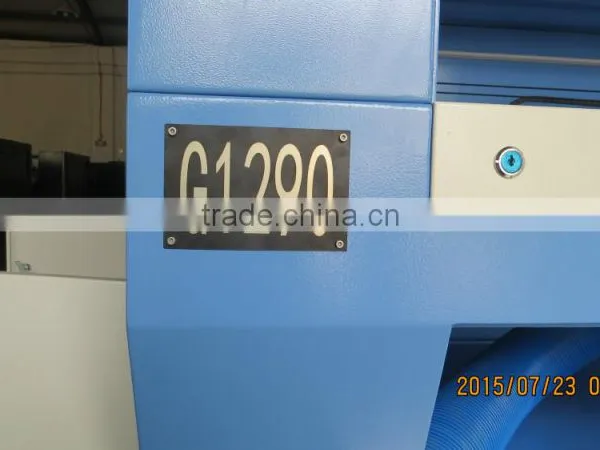

G1290 SS Laser cutting machine
Product features:
Working area: 1240X940mm
Laser head: Professional metal cutting laser head.
Power: 150 w RECI( S6)
Laser tube type: 8000-10000 hours working life time
Control mode: USB interface
File export Software: READER
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.

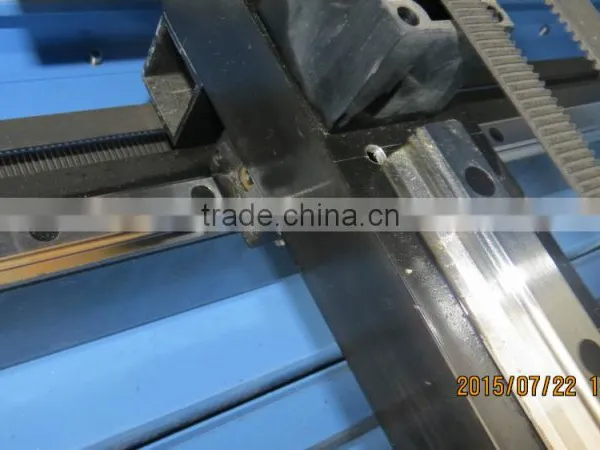

Mechanical orbits: Taiwan HIWINbrand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: Chiller CW5200
Table type: (engraving and cutting) strip type table.
360 degree slope engrave: Support
Lens and mirriors: USA imported lenses and mirrors.
Application:
Applicable materials: Mainly use to within 1.5mm Stainless steel cutting.
And also can cut wood, bamboo, organic glass, crystal, plastic, garments, paper, leather,
rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting,
building, packaging, paper industry
Specifications:
Laser power : |
150 W RECI |
Laser tube type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ-60HZ |
Cooling way: |
Water cooled with protection system |
Working area: |
1240x940mm |
Max travel speed: |
1500mm/min |
Worktable: |
knife Table(engraving and cutting) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2mm,letter:<1mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
READER |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT, CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV, GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-30mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
1870x1460x1300(mm) |
Gross weight |
380kgs |

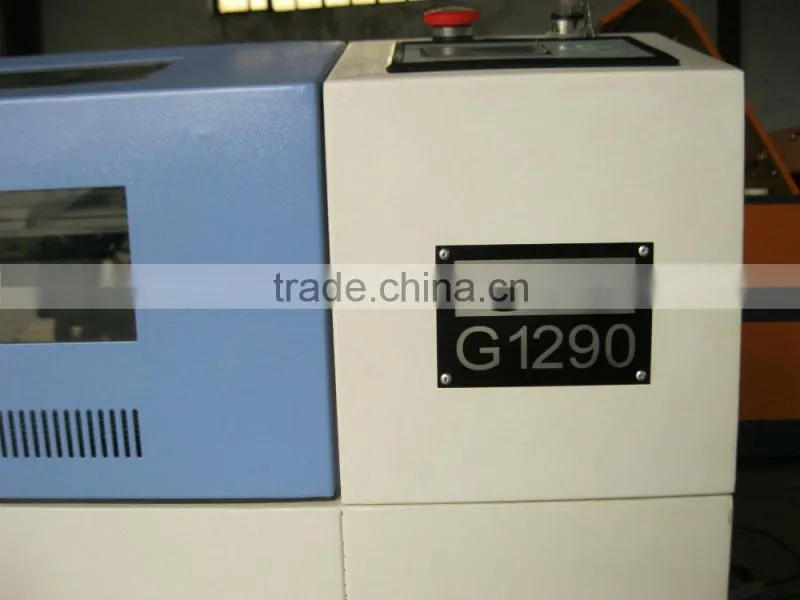

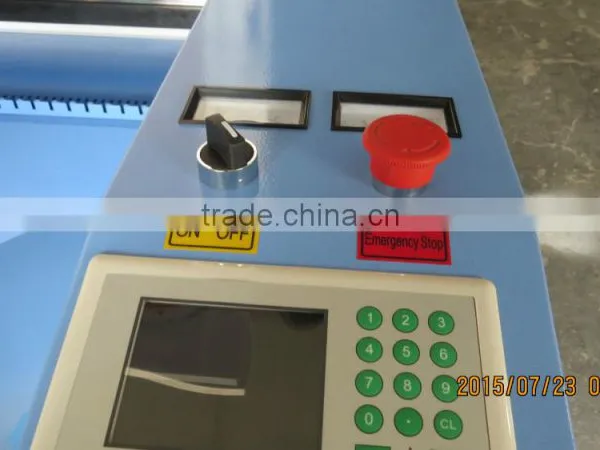

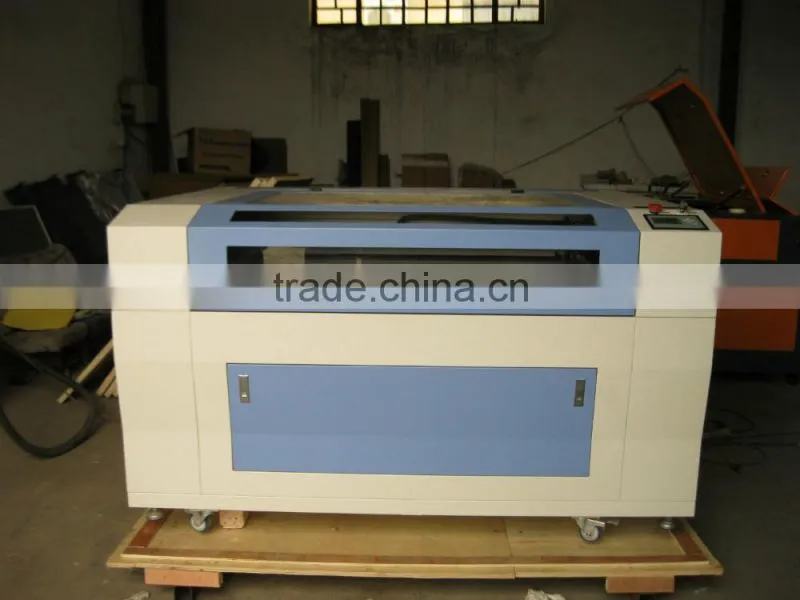

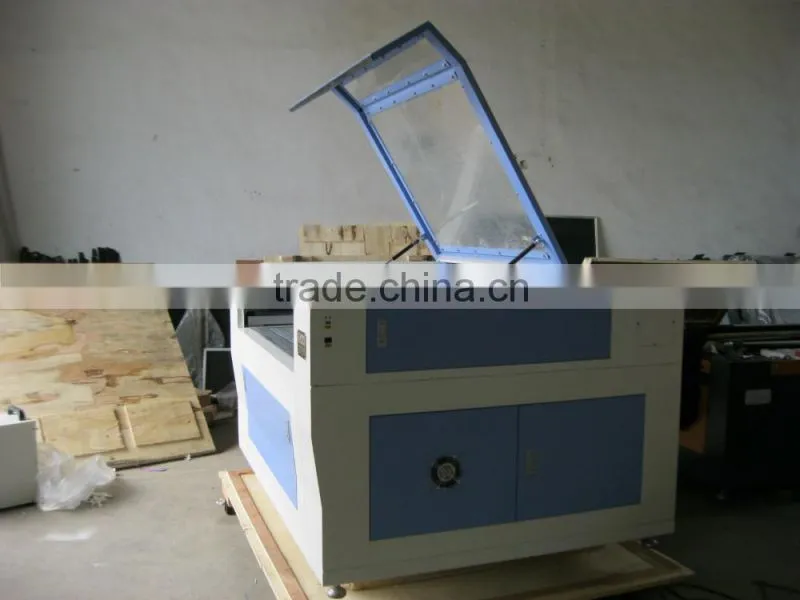

Machine photos:

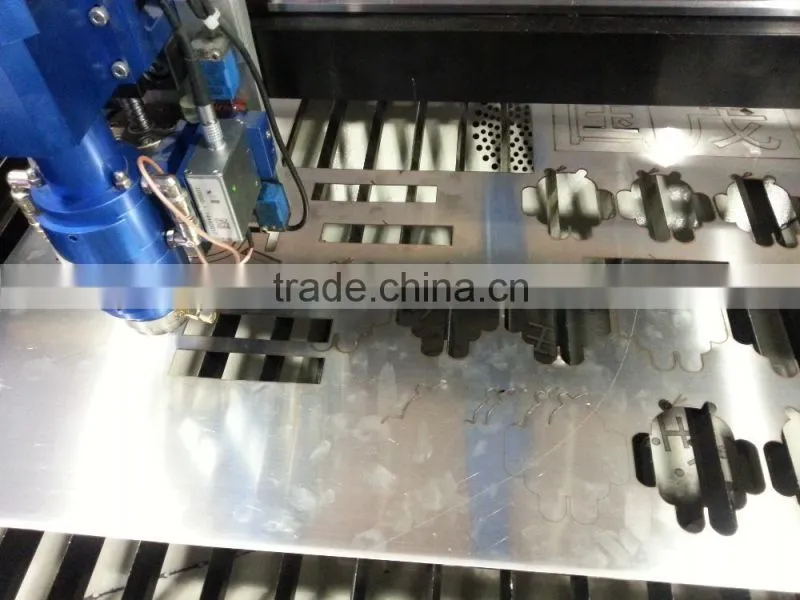

Samples:

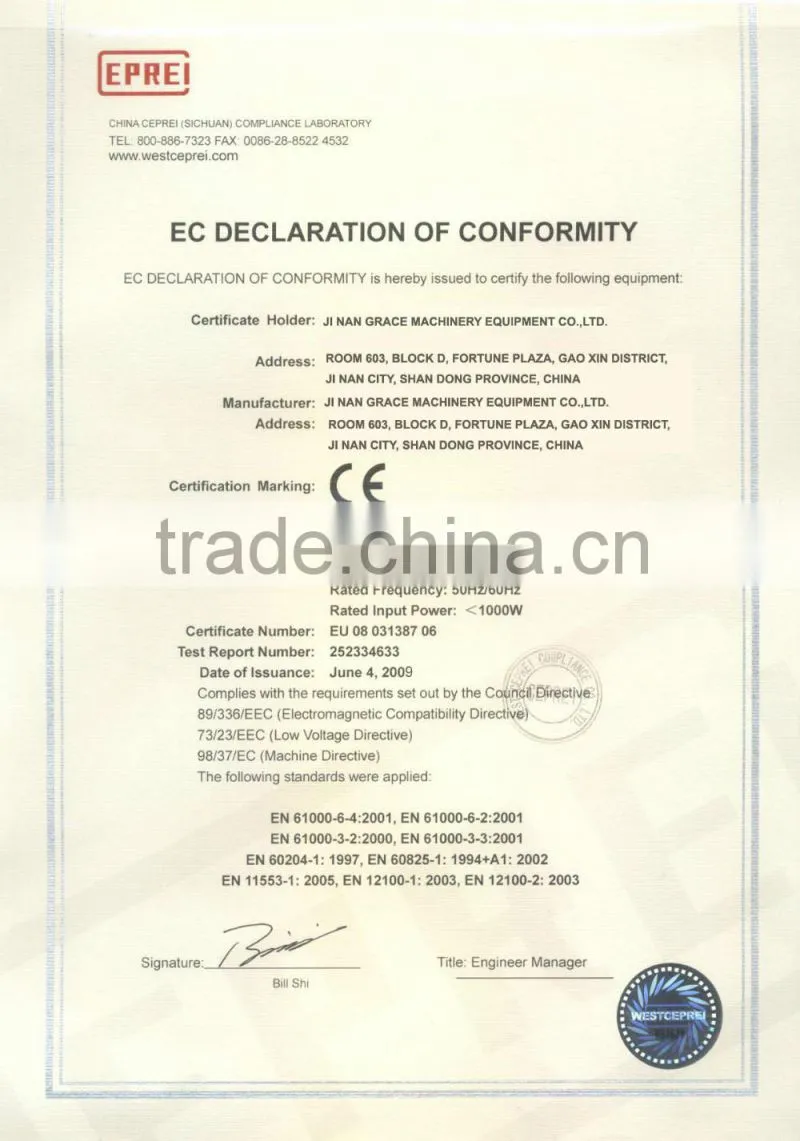

Certificate:

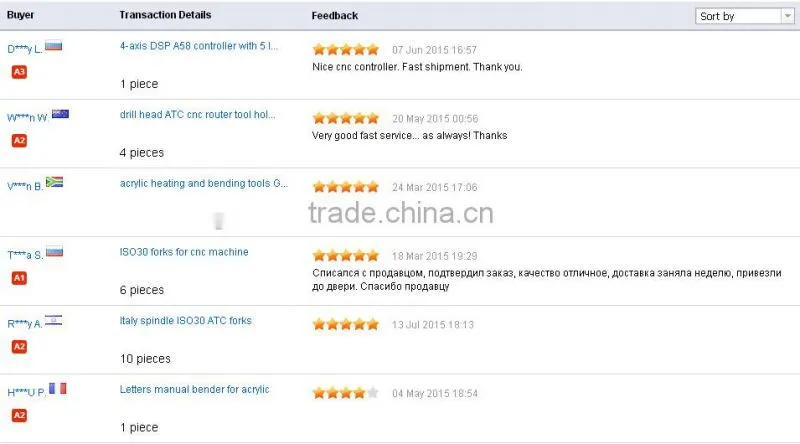

Customer feedback:
Contact us:
MAQI
Tel: +86-531-88682639
Fax: +86-531-88682639/38
Website:
Skype ID: grace005
