Help CenterCutting Plotter G800
Related Products
cutting plotter G800 Instructions of Features:
1 serial paralled interface,large memory, fast offline.
2 softland, small noise, long life of lifespan.
3. high speed, unfailing paper advance.
4. reverse paper delivery.
5. large screen Chinese characters LCD.
6. the lastest fractionize electrocircuit of the USA
7. high quality aluminium alloy roller.
8. emergency stop function,RAM detection function, repeated output function.
Technique Specification:
Model No. |
G800 |
Max. Paper Width |
800mm |
Max. Cutting Range |
790mm |
Blade |
Rotary blade |
Pen Type |
ball-point |
Cutting Speed |
5mm~600mm/s |
Knife Pressure |
50~500g |
Mechanic Resolution |
0.025mm/step |
Software Resolution |
0.025mm/step |
Repeat Precision |
0.2mm/1.2m |
Motor |
High-speed stepper motor |
Data Format |
8 data bits, 1 stop bits, non-parity |
Instruction |
Automatically recognize DMPL or PGL |
Buffer |
4MBit standard |
Cartridge Positioning |
Set on panel |
Power Source |
High quality switch powers source |
Working Temperature |
32 to 104 °F |
Working Humidity |
5%-95% (no condensation) |
Automatic Paper Testing |
Yes |

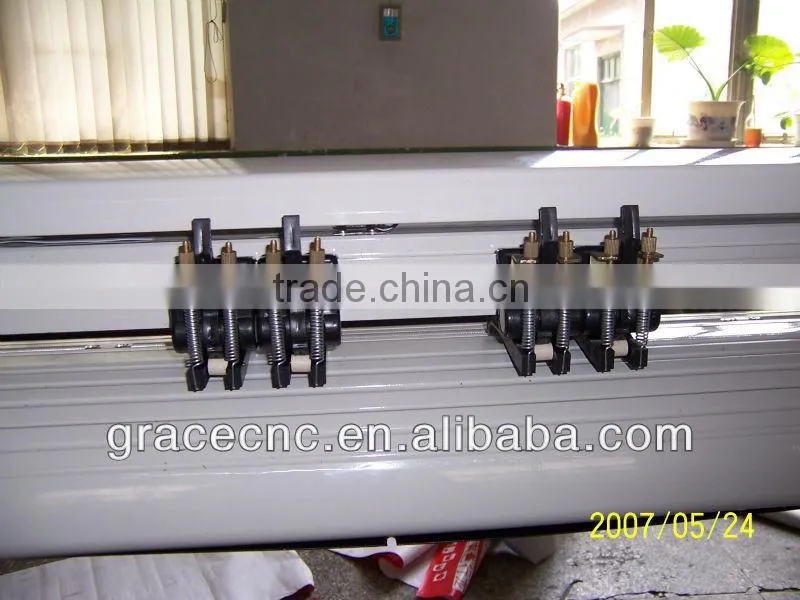

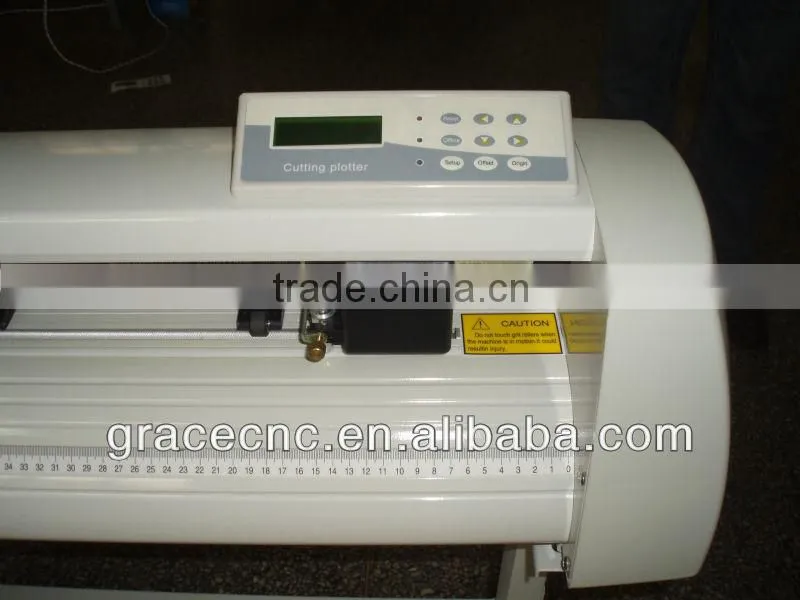

Machine pictures:
Delivery time
Around 3-5 days after recived your prepayments.
Payment terms
1. By sea T/T 50% in advance, balance before delivery.
2. By air express 100% T/T in advance, such as the DHL, TNT, EMS, FedEx and so on.
3 .We also accept West Union ,Paypal ,Escrow etc .
Package
Carton
Customer feedkback:
