Ceramic Pulse Thyratron ZQM2-400/16

Ceramic Pulse Thyratron ZQM2-400/16 thumbnail-1
Ceramic Pulse Thyratron ZQM2-400/16 thumbnail-2
Ceramic Pulse Thyratron ZQM2-400/16 thumbnail-3
Ceramic Pulse Thyratron ZQM2-400/16 thumbnail-4

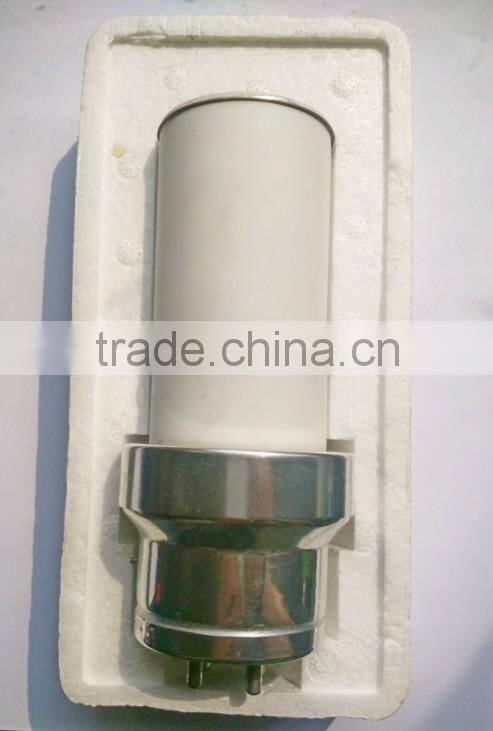

Ceramic Pulse Thyratron ZQM2-400/16 photo-1

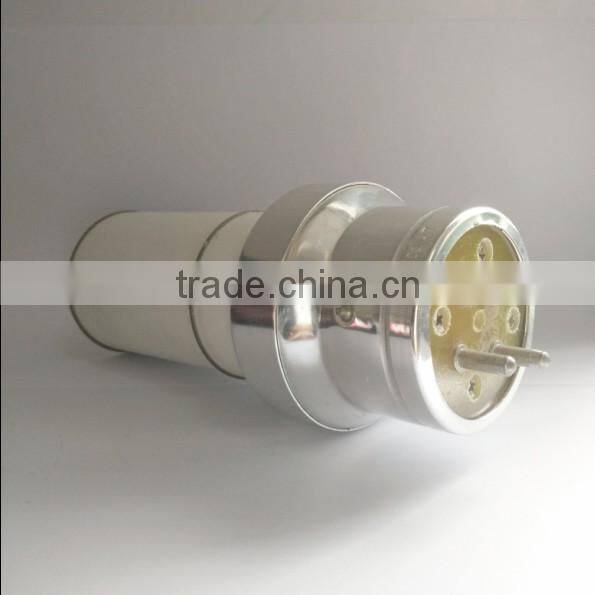

Ceramic Pulse Thyratron ZQM2-400/16 photo-2

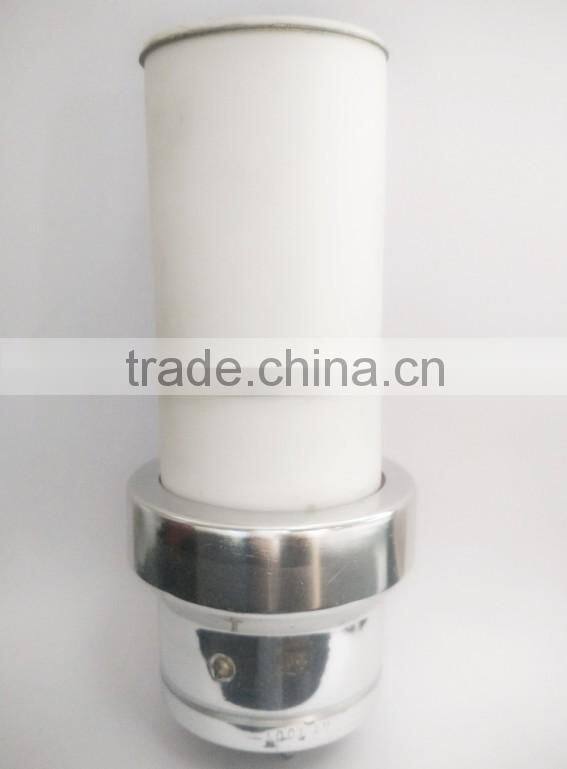

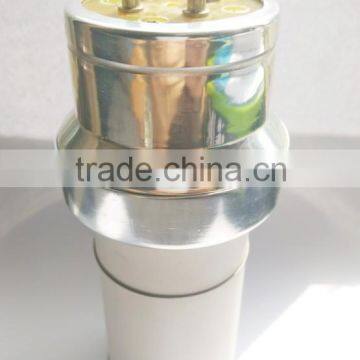

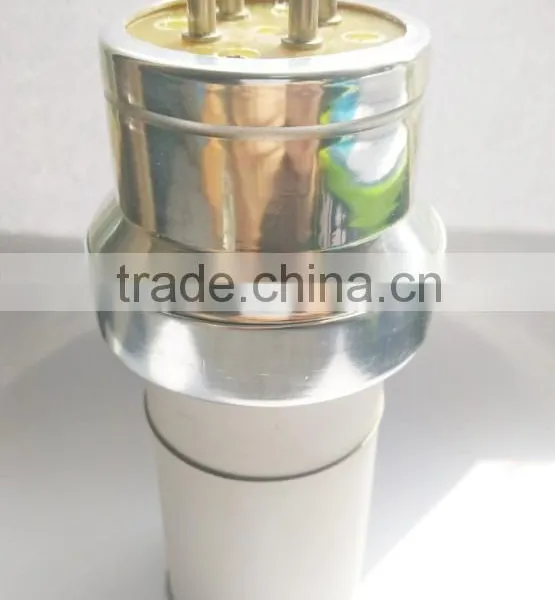

Ceramic Pulse Thyratron ZQM2-400/16 photo-3

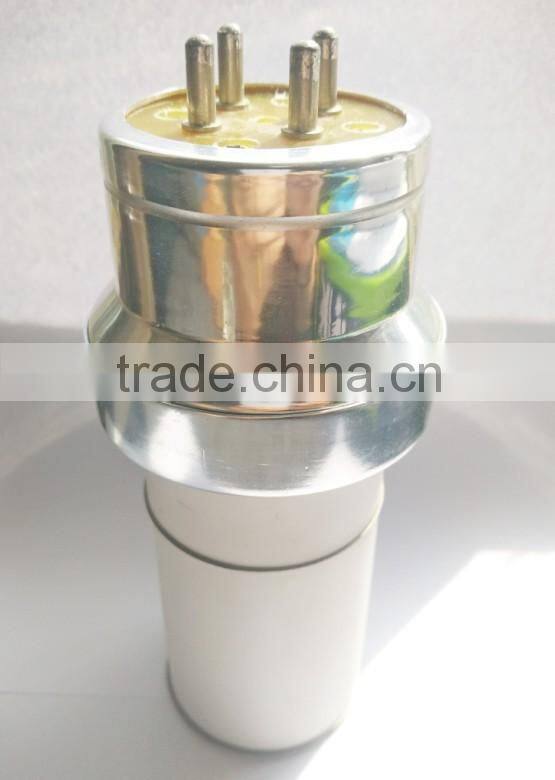

Ceramic Pulse Thyratron ZQM2-400/16 photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Pls contact us for more information
Model Number:
ZQM2-400/16
Contact Supplier Request Quote Chat Now
Jinzhou Huaguang Electron Tube Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Pls contact us for more information
Model Number ZQM2-400/16

Ceramic Pulse Thyratron

ZQM2-500/16

Structure Type:

Indirectly heated oxygen cathode metal- ceramic structure

Application:

The tube is mainly used as high voltage pulse switch in 408 586 589-adjustment radar application.

Cooling

Nature Cooling

Rated Parameters

Minimum

Standard

Maximum

Heater voltage Uf(V)

6.0

6.3

6.6

Heater current(If(A)





11

Cathode heating time tkyr(min)

5





Anode direct peak voltage  (kV)





16

Anode direct peak Current(A)





400

Anode average current `I a(mA)





0.5

Anode current pulse width (μS)



3



Grid trigger pulse voltage (V)



200

4

Pulse repetition frequency

200

400

1000

Life(h)

1000



4

Note:

1.Cathode heating time not less than 5 minutes

2. Heater voltage does not allow long time off center value

3.Vertical orientation

Ceramic Pulse Thyratron ZQM2-400/16Ceramic Pulse Thyratron ZQM2-400/16Ceramic Pulse Thyratron ZQM2-400/16Ceramic Pulse Thyratron ZQM2-400/16Ceramic Pulse Thyratron ZQM2-400/16
