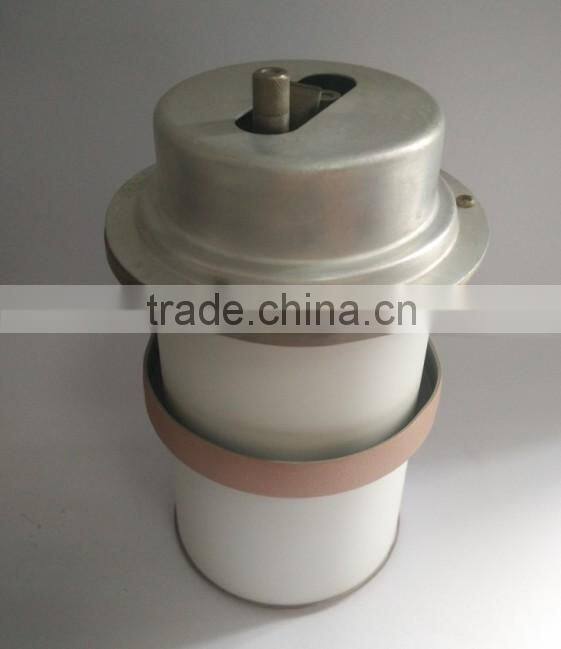

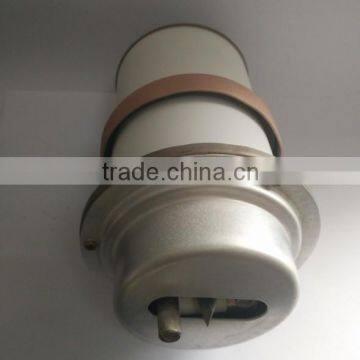

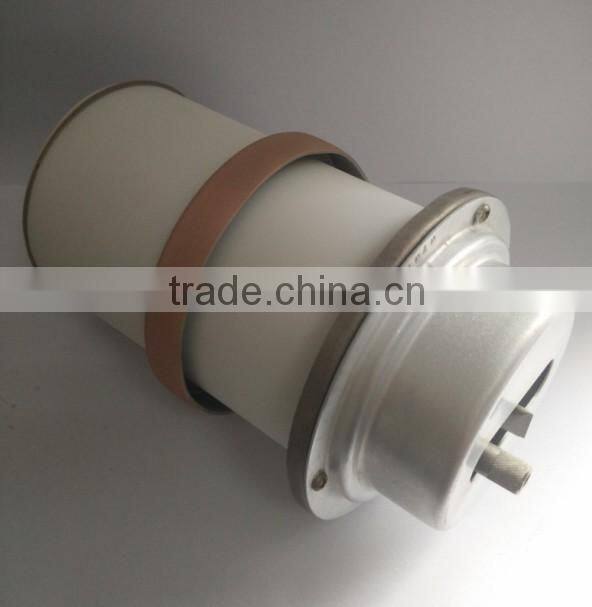

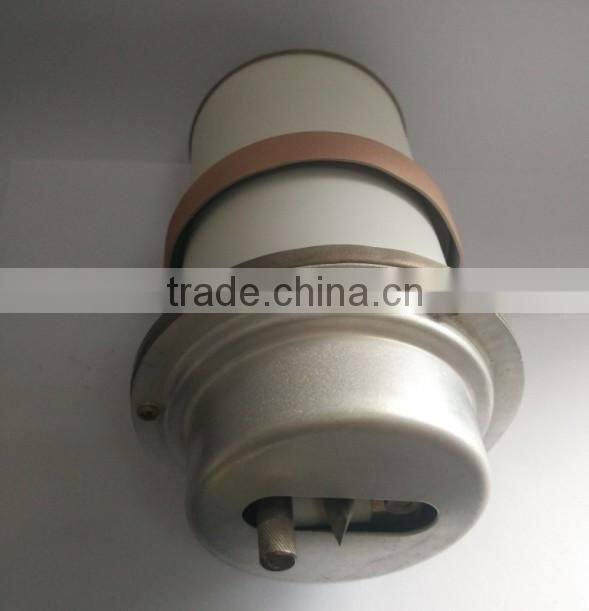

Ceramic Pulse Thyratron

ZQM1-1000/10

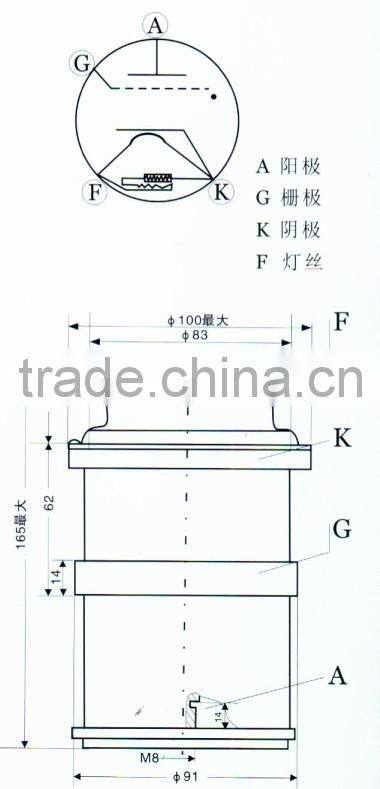

Structure Type:

Indirectly heated oxygen cathode metal- ceramic structure

Application:

The tube is mainly used as high voltage switch in 383 383-adjustment 716 radar system.

Cooling:

Nature Cooling

Rated Parameters

Minimum

Standard

Maximum

Heater voltage Uf(V)

6.0

6.3

6.6

Heater current If(A)





18.5

Cathode heating time tkyr(min)

5





Pulse repetition frequency Fcp(Hz)



333



Hydrogen generator voltage UH(V)

6.0

6.3

6.6

Anode direct peak voltage ûa (kV)





10

Anode critical conduction voltage Uac (kV)





1

Grid trigger pulse voltage Ugcp(V)

200





Grid trigger pulse widthτgu(μS)





3

Typical Characteristics







Pulse output power(MW)



5



Average output power `Pout(kW)



5



Anode pulse current Iap(A)



1000



Anode average current `Ia(A)



1



RMS current I arms(A)



33



Anode current pulse width τai(μS)



3



Lifetime T(h)



1000



Weight G(kg)



1.5



Aboard types:

US(1802)
