Ceramic Pulse Thyratron ZQM2-500/16

Ceramic Pulse Thyratron ZQM2-500/16 thumbnail-1
Ceramic Pulse Thyratron ZQM2-500/16 thumbnail-2
Ceramic Pulse Thyratron ZQM2-500/16 photo-1
Ceramic Pulse Thyratron ZQM2-500/16 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Pls contact us for more information
Model Number:
ZQM2-500/16
Contact Supplier Request Quote Chat Now
Jinzhou Huaguang Electron Tube Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Pls contact us for more information
Model Number ZQM2-500/16

Ceramic Pulse Thyratron

ZQM2-500/16

Structure Type:

Indirectly heated oxygen cathode metal- ceramic structure

Application:

The tube is mainly used as high voltage pulse switch in 408 586 589-adjustment radar application.

Cooling

Nature Cooling

Rated Parameters

Minimum

Standard

Maximum

Heater voltage Uf(V)

5.8

6.3

6.8

Heater current(If(A)





11

Cathode heating time tkyr(min)

5





Pulse repetition frequency Fcp(Hz)



300



Hydrogen generator voltage UH(V)

6.0

6.3

6.6

Hydrogen generator current IH(A)





2

Anode direct peak voltage ûa (kV)





16

Grid trigger pulse voltage Ugcp(V)



200



Grid trigger pulse widthτgu (μS)





4

Typical Characteristics







Pulse output power(MW)



≤ 4



Anode pulse current I ap(A)



≤ 500



Anode average current `I a(mA)



≤ 600



Anode current pulse width τai(μS)



4



Lifetime T(h)

600





Weight G(g)

670





Aboard types:

US(8613)

Europe (FX2522)

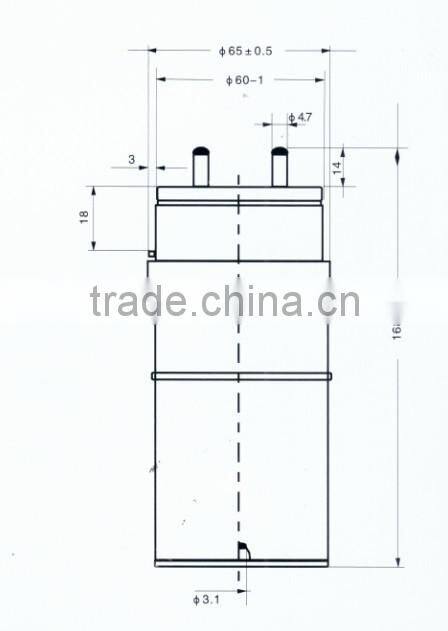

 Ceramic Pulse Thyratron ZQM2-500/16Ceramic Pulse Thyratron ZQM2-500/16
