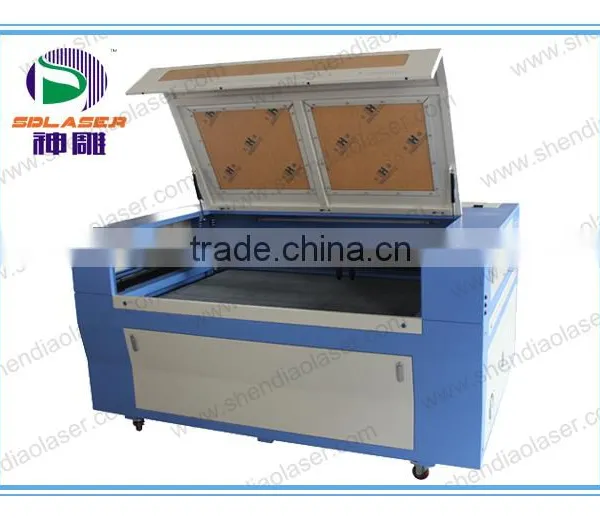

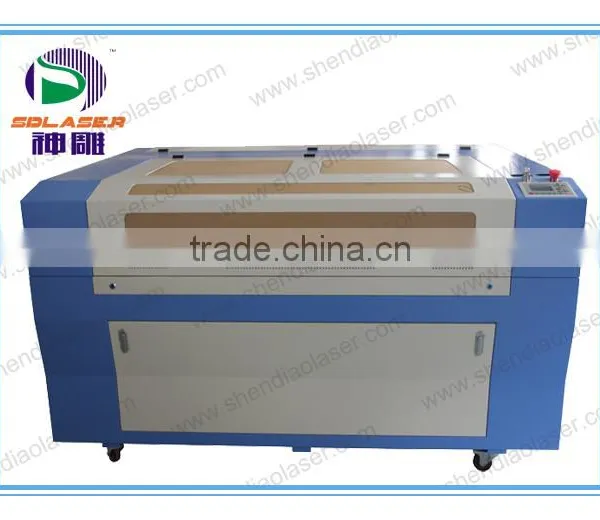

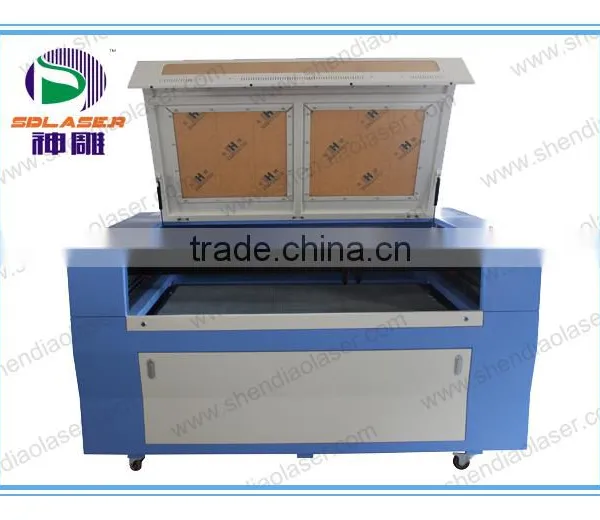

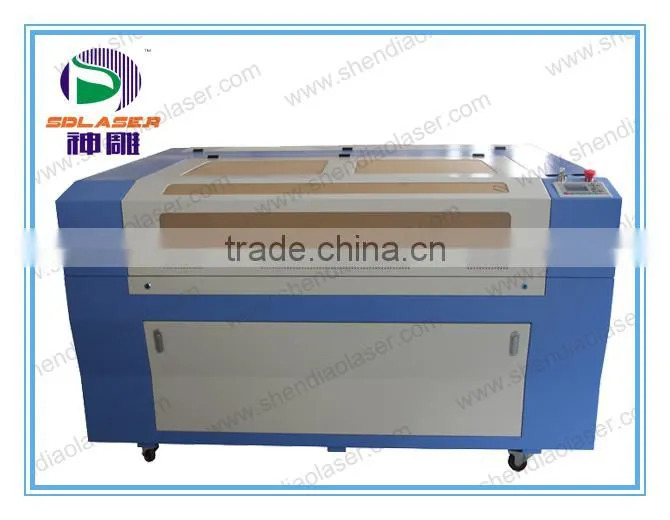

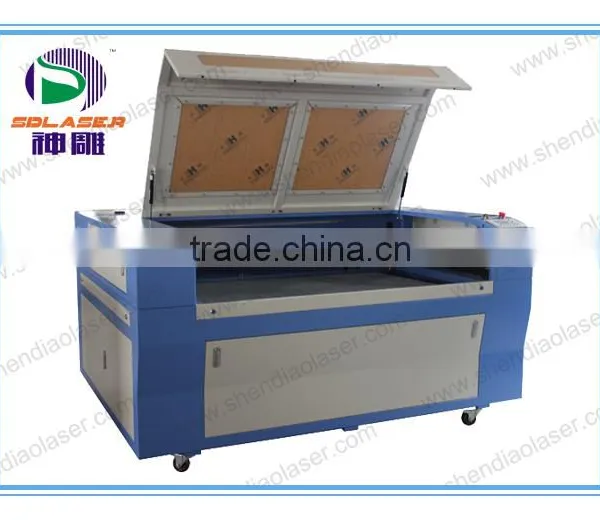

Plexiglass Laser Cutting Engraving Machine

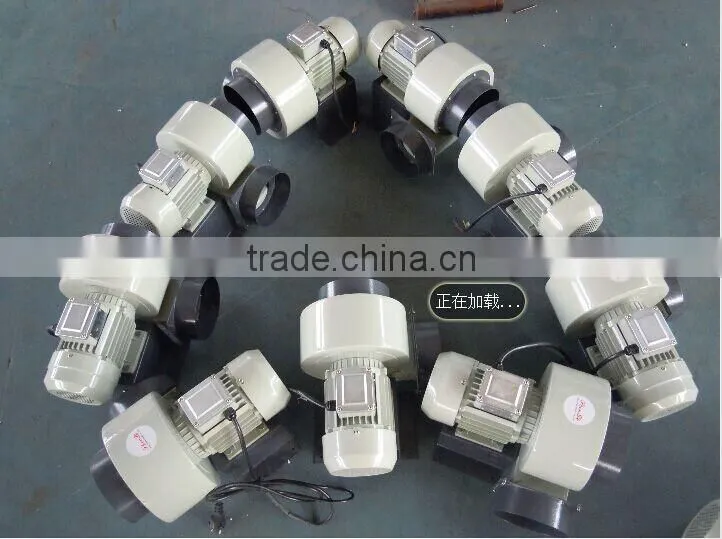

this laser engraving machine uses blocking design, easy to install and adjust, the frame of the machine in reason, the materials can put into from the front and behind. This machine adopts the Exhaust Fan to exhaust the smoke on the below of the laser machine. Software of it completely compatible with AutoCAD, Coreldraw etc. CAD CAM and various photo processing software, original photo output directly.
Product Details:

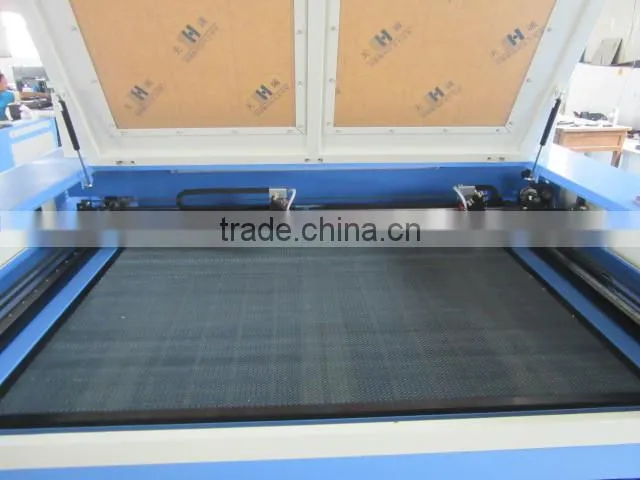

1) Two laser tubes and two laser heads working simultaneously, which makes processing efficiency doubled.
2) Cost saving and cutting well-proportioned.
Available Materials:
a. Natural materials: Rock, brick, stone, marble, granite, glass
b. Organic Materials:Wood, Leather, Plants, Fruit, Vegetables, Sea shells ...etc. (be careful not to burn your skin or eyes)

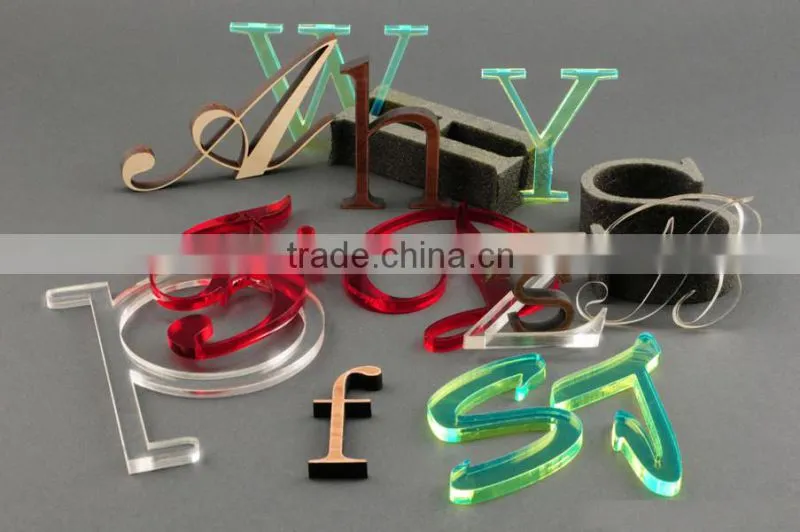

c. Man Made Polymers: Acrylic, plexiglass, vinyl, styrofoam, styrene, etc.
d. Cloths: Jeans, cotton, silk, nylon, dacron, etc.
Available Industries:
Sign makers, party decorations, novelty makers, awards and trophies, applique embroidery,
wooden toys, airplane models, model buildings, textile patterns, template makers, etc.
What should NOT be cut by the laser?
While the laser can cut or engrave, some materials should not be CUT. Vinyl and PVC will produce a corrosive gas. Plexiglass / Polycarbonate will produce a black and yellow gas that will make your sick to your stomach. Cutting ABS yields a fair result, but leaves a bad smell that is hard to get out of your nose.
Parameters :
Model |
SD1290 Double-head laser engraving machine |
||
Engraving Area |
900x1200mm |
||
Laser Power |
60W/80W |
||
Laser Type |

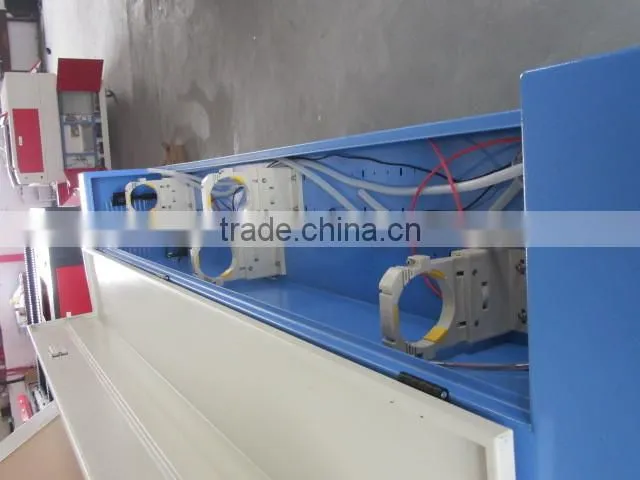

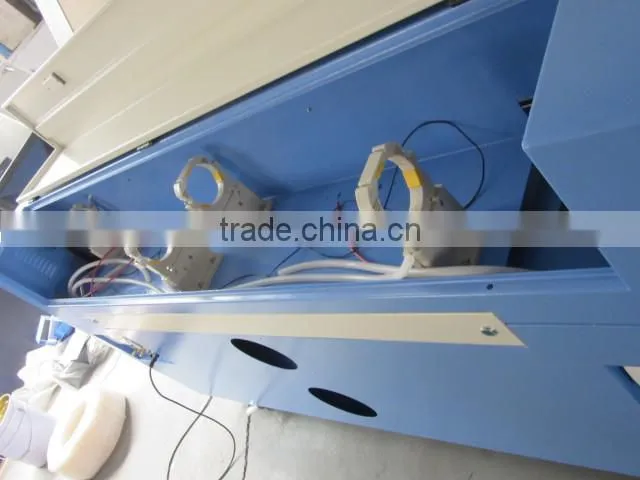

CO2 Laser Tube(Double laser tubes and double laser power supplies) |
||
Engraving speed |
0-1000mm/S |
||
Cutting speed |
0-500mm/S |
||
Resetting positioning accuracy |
<= 0.01mm |
||
Cutting depth |
Acryl 0-25mm(other depths depend on other materials) |
||
Minimum Shaping Character |
1×1mm |
||
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
||
Gross power |
1200W |
||
Software supported |
ArtCut, PhotoShop (Conversion output) CorelDraw, AutoCAD, Lasercut (Direct output) |
||
Graphic format supported |
PLT/DXF/BMP/AI (Direct output) |
||
Engraver for Curve surfaces (Yes/No) |
No |
||
Water Cooling: (Yes / No) |
Yes |
||
Laser Tube (life hours) |
3500-4000hours |
||
Equipment Dimensions |
1860x1500x1100mm |
||
Recommended Spare Parts |
Laser Tube and Lens |
||
Certificate |
CE |
||

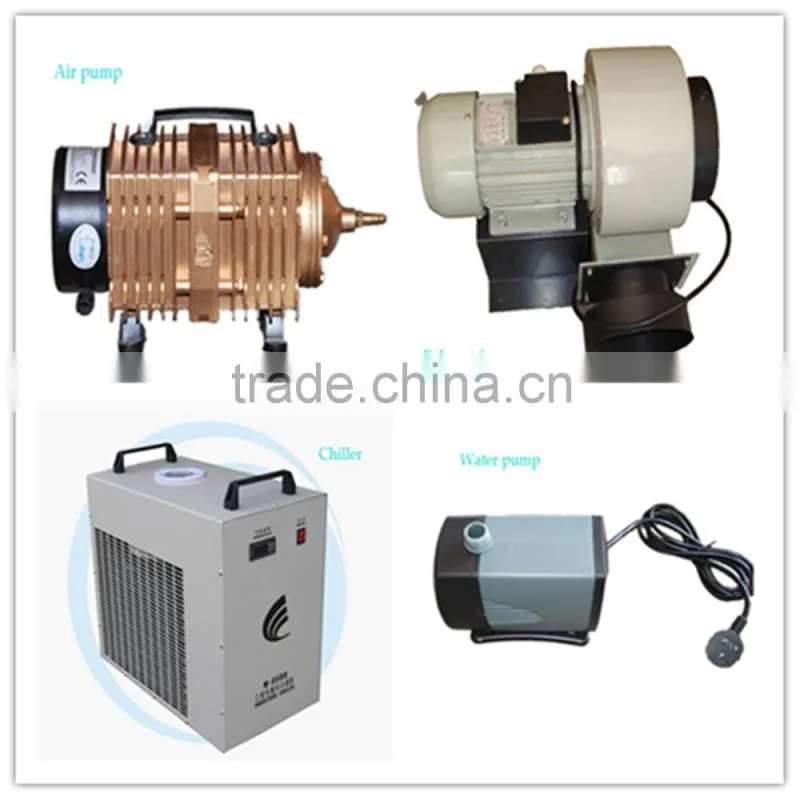

Assistant Equipment |
Water pump |
Exhaust Fan |
Iron alloy worktable |
Optional Spare Parts |
RF Laser tube |
Water chiller |
Red Dot Pointer |
J Excellent and High Quality Control
J Innovative spirit, ideas and consciousness
JBest after-sale service
JCustomer's Designs and Logos are Welcome
JCompetitive Price
JEarth-friendly Product
JPrompt Delivery
SD laser is dedicated to studying, researching and production laser engraving cutting machine for hobbyists and professionals. We are a serious supplier, and supply very good quality to our customers to keep ahead in the same filed.
SD laser can guarantee everything is under our inspection and control, including the selection of raw material,the research of the new technology and crafts, the inspection of production process, the packaging of the machines, the accurate and fast tech support.
Just only one sample machine, you will find surprised pleasure with own eyes.
FREQUENTLY ASKED QUESTIONS
1. What is the lead time for a Shendiao machine?
For regular model it is app. 2 weeks, for custom-built model, it need more days.
2. Is the set-up complicated? Will I need a professional installer?
No. All our models come with step-by-step assembly manuals and can be assembled within 2 hours (depending on the model) by anyone with basic manual skills. The operation manual will help you start on the same day when you set up machine. Although not necessary, installation and training can also be performed by a Shendiao technician at an additional charge.
How can I get order a Shendiao machine?
Please contact me via email, telephone, fax, MSN, Yahoo messenger, Skype and so on.
What are the acceptable payment methods?
When purchasing directly from Shendiao (this may differ if you purchase from one of our distributors), you can make the payment via bank wire transfer, Western Union or Letter of Credit (L/C).
What is included in the price of the machine?
Laser engraver/cutter – Standard external spares and cables – Software – Operational manual – 1 year warranty. (Necessary spares to run machine)
WARRANTY
1. 12 Months for Machine
2. 6 Months for laser tube, lens and mirror
3. 6 Months for equipments outside, such as water pump, fan, air pump,etc.
Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
Lifely and fast technical guide and solution within 24hours by email and web camera.
