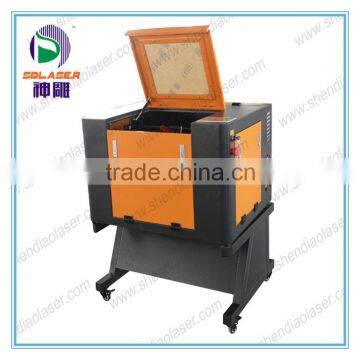

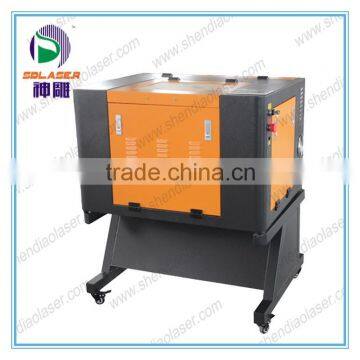

High profession and multi-function wood, glass, crystal, marble, stone laser engraving machine with rotary device
We also have many different working size, such as 1200*900mm, 400*400mm,600*900mm, 1300*900mm,1400*900mm, 1300*2500mm, 1600*2500mm. And we can manufacture machines that can meet the customers' requirements.
Laser engraving machine:
Features:
1. Equipped with high precision ball screw up-down working table, with smoke purifier system, little noise, the machine is the best choice of the middle and small size home workshop.
2. High-speed USB offline control system.
3. Software completely compatible with AutoCAD.CoreDRAW etc.
Parameters:
Model |
SD5030 |
||||
Laser Tube Power(standard) |
40w |
||||
Laser Tube Power(optional) |
50w |
||||
Work Area (mm) |
500*300mm |
||||
Gross power |
1000w |
||||
Laser type |
CO2 Laser tube |
||||
Max Engraving speed |
1200mm/s |
||||
Resetting positioning accuracy |
<0.01mm |
||||
Minimum forming character |
1x 1mm |
||||
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
||||
Software supported |
Direct output software: CorelDraw, AutoCAD, LASERCUT Design software: PhotoShop, ArtCut, Adobe Reader |
||||
Picture Formats Supported |
PLT/DXF/BMP/AI (Direct output) JPG,GIF,PGN,TIF(Conversion output) |
||||
Engrave Curve surfaces |
Rotary clamp tool (optional) |
||||
Water Cooling |
Yes |
||||
Maximum Height of Material |
150mm (Motorized Up-down adjustable) |
||||
Laser tube |
1200-1500 hours |
||||
Weight |
N.W.: 84KGs, G.W:130KGs |
||||
Machine Dimension |
900x690x580mm |
||||
Packing Dimension |
1060x830x880(Wooden box) |
||||
Certificate |
CE and FDA |
||||
Assistant Equipment: |
Water pump |
Air pump |
Exhaust Fan |
Motorized honeycomb table |
|
Optional Accessory: |
Red dot pointer |
Rotary Clamp |
Auto Focus |
Water chiller |
Purifier & Filter deivce |
Optional water cooling:
Applicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble,
shell.
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and
cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine
leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats,
toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate
cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials,
cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Samples show:
Our Package Advantage:
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Warranty and service:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Provide 1 year complete warrantee and life-time maintenance service;
4. Installation/Operation/ Service/ Maintenance Manual and Video: Provided In English
Jinan Shendiao Machinery Equipment Co., Ltd is the professional manufacturer and exporter of mechanical CNC router machine, laser machine and other relevant equipment. Our products are widely used in various industries. We have granted our own brand "Shendiao" or "SD". By reason of high quality products and top after-sales service, we have won trust and support of customers from all over the world.
Frequently asked questions:
1. How can I get order a Shendiao machine?
Please contact me via email, telephone, fax, MSN, Yahoo messenger, Skype and so on.
2. What is the lead time for a Shendiao machine?
For regular model it is app. 2 weeks, for custom-built model, it need more days.
3. What are the acceptable payment methods?
When purchasing directly from Shendiao (this may differ if you purchase from one of our distributors), you can make the payment via bank wire transfer, Western Union or Letter of Credit (L/C).
4. What is included in the price of the machine?
Laser engraver/cutter – Standard external spares and cables – Software – Operational manual – 1 year warranty. (Necessary spares to run machine).
5. What is not included in the price?
PC – Coreldraw software – AutoCad software
6. What is the warranty for Shendiao machines?
All Shendiao laser engravers/cutters are covered by a 1-year warranty (EXW, ex-works China).
7. Is the set-up complicated? Will I need a professional installer?
No. All our models come with step-by-step assembly manuals and can be assembled within 2 hours (depending on the model) by anyone with basic manual skills. The operation manual will help you start on the same day when you set up machine. Although not necessary, installation and training can also be performed by a Shendiao technician at an additional charge.
8. Whom do I contact for technical support?
You can contact us no matter what the problem is, just send us an email or give us a call and we will do all we can to solve the problem asap. When sending an email with a technical question or a drawing problem, please make sure to include as much information as possible: info on the machine, software version, serial number, installation date, your PI No., your location, etc.
