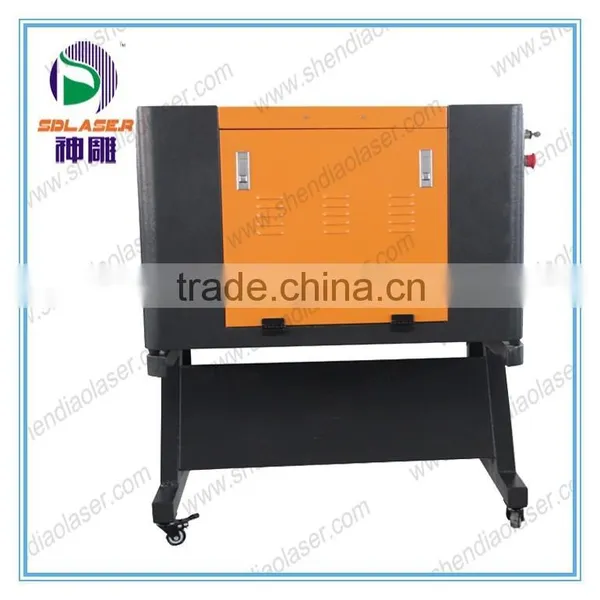

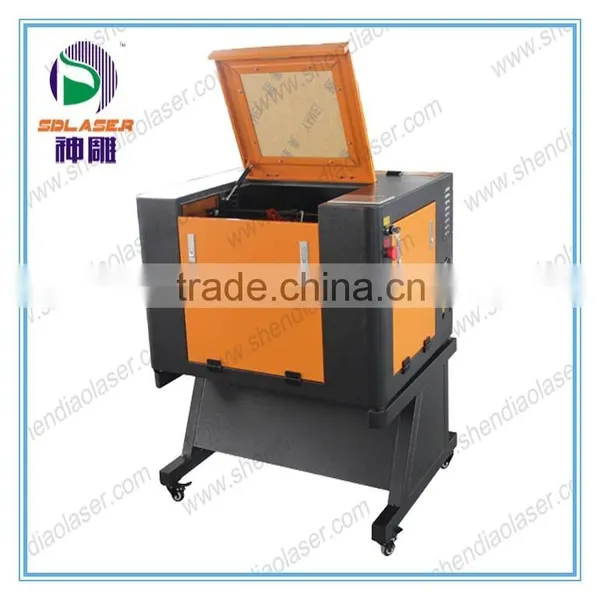

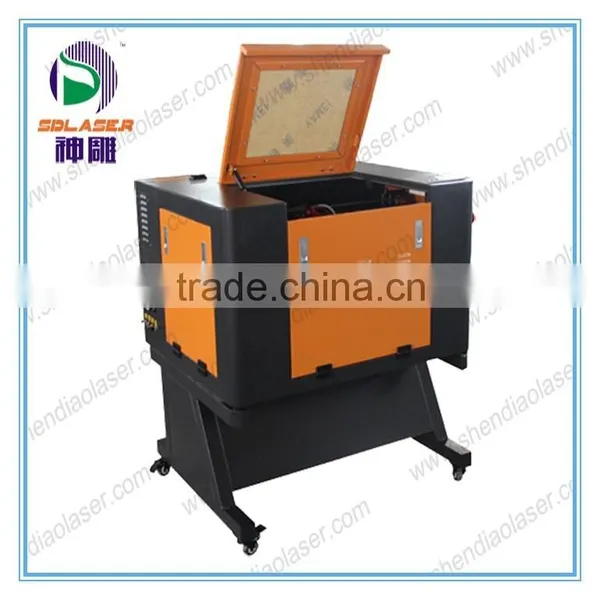

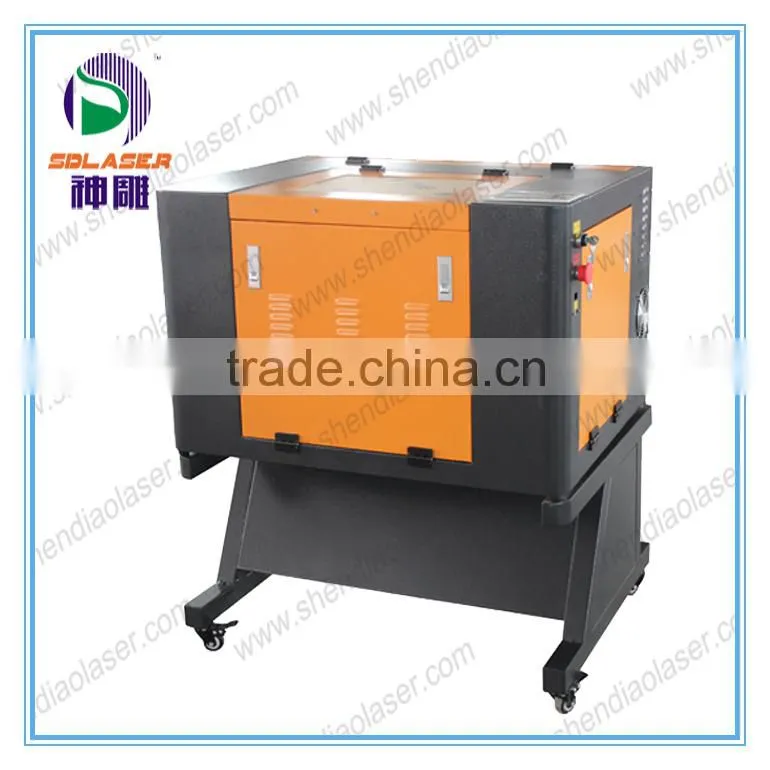

Popolar Type Co2 Laser CNC Wood Carving Machine
SD5030 laser engraving cutting machine :
Features:
1.High-speed USB offline control system.
2.Software completely compatible with AutoCAD.CoreDRAW etc. CAD. CAM
and various photo processing software, original photo output directly.

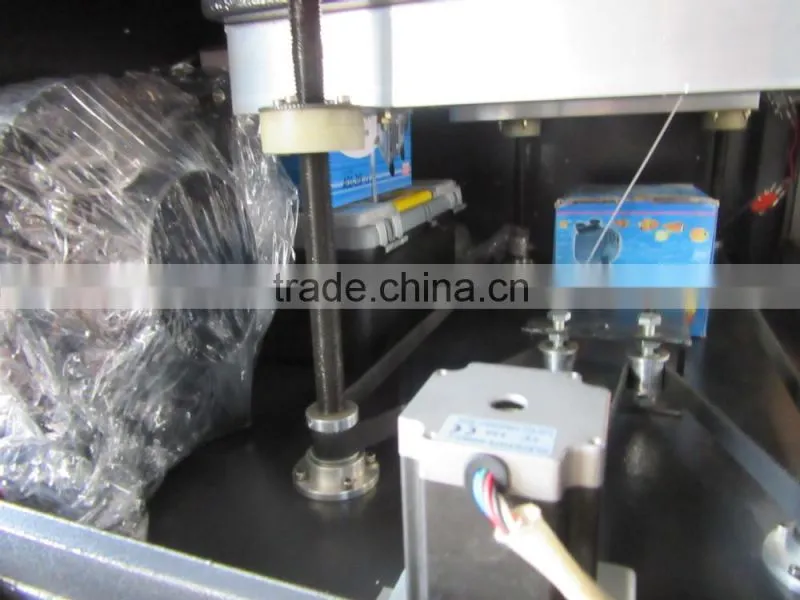

3.Equipped with high precision ball screw up-down working table, with smoke
purifier system, little noise, the machine is the best choice of the middle and
small size home workshop.
Parameters:
Model |
SD5030 |
||||
Laser Tube Power(standard) |
40w |
||||
Laser Tube Power(optional) |
50w |
||||
Work Area(mm) |
500*300mm |
||||
Gross power |
1000w |
||||
Laser type |
CO2 Laser tube |
||||
Max Engraving speed |
1200mm/s |
||||
Resetting positioning accuracy |
<0.01mm |
||||
Minimum forming character |
1x 1mm |
||||
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
||||
Software supported |
Direct output software: CorelDraw, AutoCAD, LASERCUT Design software: PhotoShop, ArtCut, Adobe Reader |
||||
Picture Formats Supported |
PLT/DXF/BMP/AI (Direct output) JPG,GIF,PGN,TIF(Conversion output) |
||||
Engrave Curve surfaces |
Rotary clamp tool (optional) |
||||
Water Cooling |
Yes |
||||
Maximum Height of Material |
150mm(Motorized Up-down adjustable) |
||||
Laser tube |
1200-1500 hours |
||||
Weight |
N.W.: 84KGs, G.W:130KGs |
||||
Machine Dimension |
900x690x580mm |
||||
Packing Dimension |
1060x830x880(Wooden box) |
||||
Certificate |
CE and FDA |
||||
Assistant Equipment: |
Water pump |
Air pump |

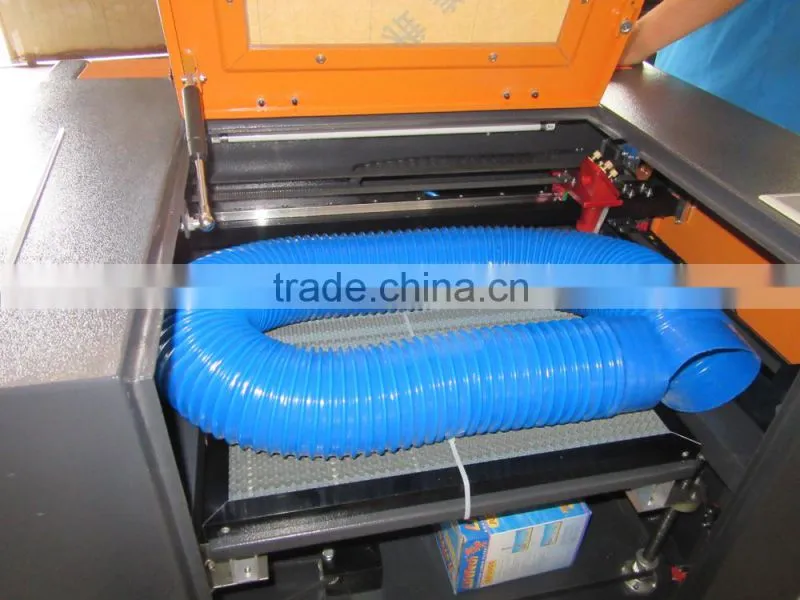

Exhaust Fan |
Motorized honeycomb table |
|
Optional Accessory: |
Red dot pointer |
Rotary Clamp |
Auto Focus |
Water chiller |
Purifier & Filter deivce |
Applicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble,
shell.
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and
cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine
leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats,
toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate
cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials,
cut paper, card.
7.Product Identification Industry: Security marking products, etc.

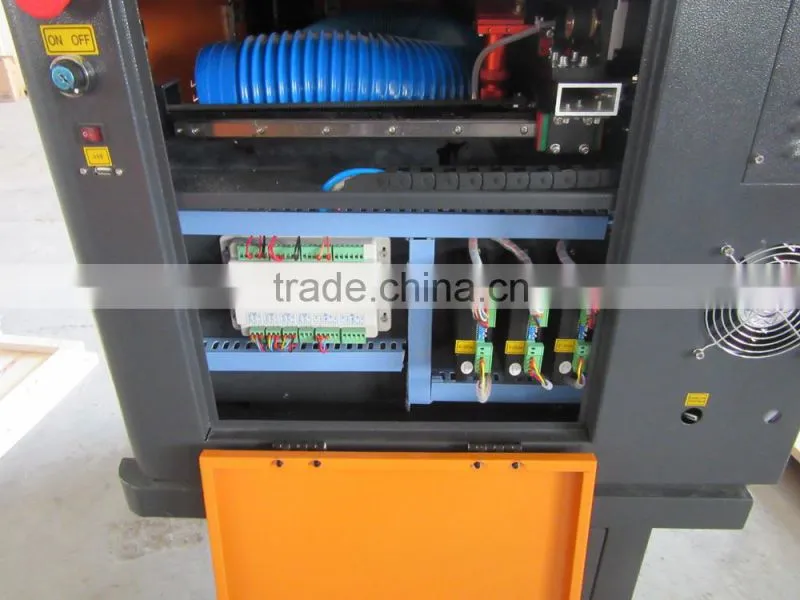

Details:
Samples:
Advantages and service we supply:
J Excellent and High Quality Control
J Innovative spirit, ideas and consciousness
JBest after-sale service
JCustomer's Designs and Logos are Welcome
JCompetitive Price
JEarth-friendly Product
JPrompt Delivery
WARRANTY
1. 12 Months for Machine
2. 6 Months for laser tube, lens and mirror
3. 6 Months for equipments outside, such as water pump, fan, air pump,etc.
Detailed manual and video to guide the user how to use the machine and maintenance,
also supply the specs settings for the speed and power to engrave or cut on various material.
Lifely and fast technical guide and solution within 24hours by email and web camera.
Jinan Shendiao Mechanical Equipment Co., Ltd. is a laser engraving
machine, laser cutting machine,fabric laser cutting, laser marking
machine, acrylic laser cutting machine, laser engraving machine crafts
and other professional production and processing of laser equipment
company, has a sound quality management system and the transfer
of R & D manufacturing team.
1. What is the lead time for a Shendiao machine?
For regular model it is app. 2 weeks, for custom-built model, it need more days.
2. Is the set-up complicated? Will I need a professional installer?
No. All our models come with step-by step assembly manuals and can be assembled
within 2 hours (depending on the model) by anyone with basic manual skills. The operation
manual will help you start on the same day when you set up machine. Although not necessary,
installation and training can also be performed by a Shendiao technician at an additional charge.
3. How can I get order a Shendiao machine?
Please contact me via email, telephone, fax, MSN, Yahoo messenger, Skype and so on.
4. What are the acceptable payment methods?
When purchasing directly from Shendiao (this may differ if you purchase from one of our distributors),
you can make the payment via bank wire transfer, Western Union or Letter of Credit (L/C).
5. What is included in the price of the machine?

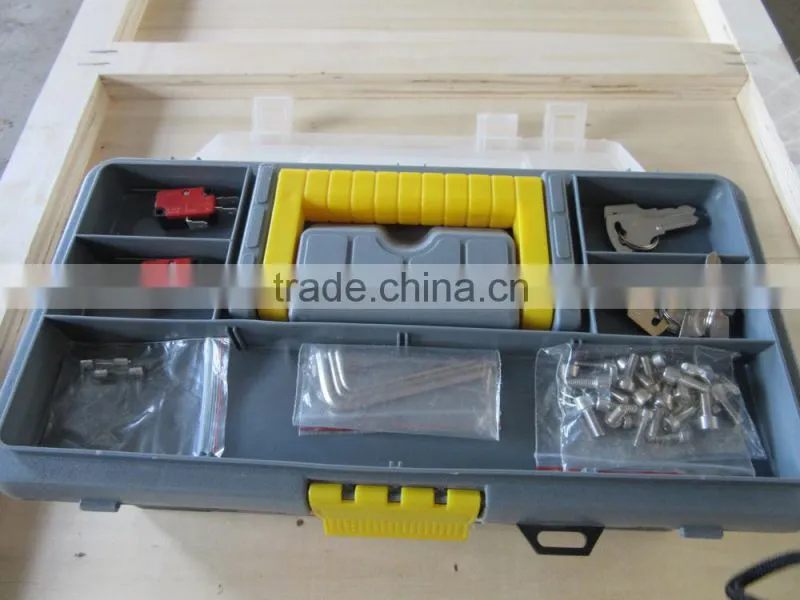

Laser engraver/cutter – Standard external spares and cables – Software – Operational manual –
1 year warranty. (Necessary spares to run machine).
Please contact us at your convenience.Thank you very much for your reply.
