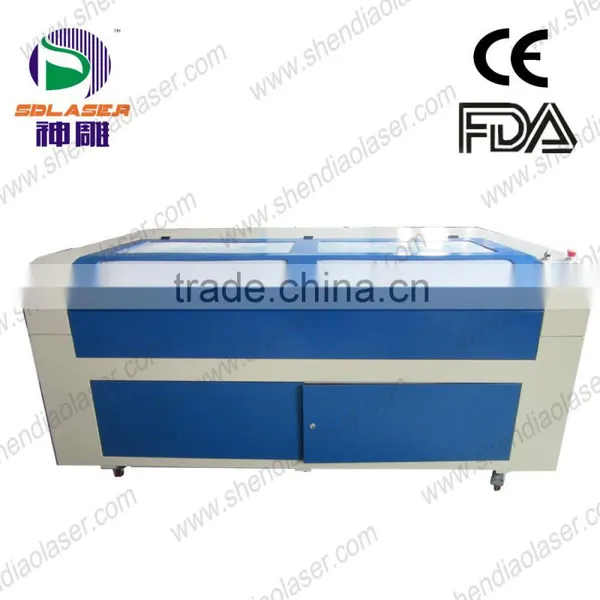

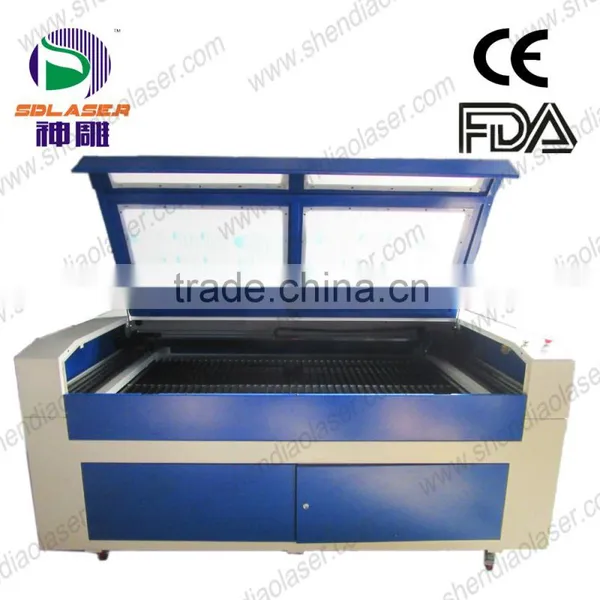

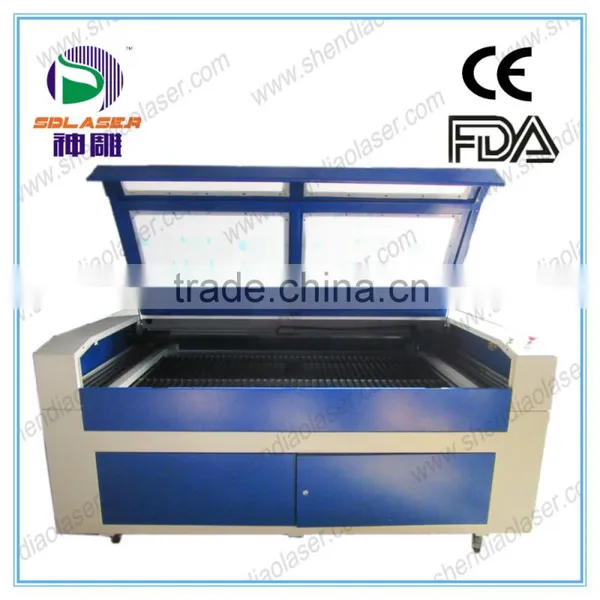

SD-1218 CO2 laser cutter for cloth
Feature
1.With a high precision engraving laser tube and a high power cutting laser tube, this Laser Machine could be used for both cutting and engraving 2,Solid profile steel structure that provides smooth and high precision processing. No need to calibrate after long term operation.
3.Flight path design of this laser cutting machine that provides little path deviation and easy adjustment. 4.Optional USB control and Flash Disk offline control system. - Self-developed high performance laser power supply
Specification:
SD-1218 |
||
Wattage |
130W/150W |
|
Laser Source |
Sealed CO2 Laser |
|
Cooling |
Water Cooled |
|
Working Area |
1200*1800mm |
|
Dimensions (W x L x H) |
1070Tall x 2360Deep x 1660Wide mm |
|
Drive |
Closed-loop DC stepper control |
|
Maximum Motor Speed |
40 IPS |
|
Speed Control |
Adjustable from 0~100% |
|
Power Control |
Adjustable from 0~100% |
|
Distance Accuracy |
0.1mm |
|
Z-Axis Movement |
Automatic or manual |
|
Computer Interface |
Standard printer port and USB 2.0** port |
|
Operation Voltage |
110V-220V AC |
|
Power Consumption |
1300w |
|
Graphic format supported |
BMP,JPG,GIF,HPGL,NC,PLT,DST,DXF,AI ... |
|
Water Chiller |
Water Chiller required |
|
Air Exhaust System |
External exhaust system required |
Technology Analysis: Four fundamental effects of laser engraving elements are:Engraving speed, laser power, engraving precision, material.
1.Wood
Wood is the most commonly material processed by laser,it is easy cutting and engraving.Light color wood like Birch,Cherry,Maple are more suitable for carving.
Each timber has itself characteristics, some is tighter, such as hardwood, when carving or cutting it,is necessary to use a larger laser power.
2.MDF
This type of density plywood is usually used to do the wooden signs lining,sticked thin veins on the surface.carved pattern's color is uniform,have good effect even if not colored.After carving,use a damp cloth to clean the surface of MDF.
3.Acrylic
Acrylic is second commonly carving material,it is easy to cutting and engraving,acrylics have variety of shapes and sizes,with low cost relatively.
Acrylic has 2 production process:casting and calendering,laser engraving mainly use casting acrylic.Because casting acrylic 's frost effect is very white after laser engraving,produce sharp contrast with original transparent texture.Calendering acrylic's processing surface is still transparent after laser engraving,there is not sufficient contrast effect.
When you purchase acrylic material,you should stress to dealer that you need high purity kind acrylic,Otherwise,when you back to engraving or cutting by laser,it may produce melt phenomenon.
4.Double color plate
Engraving double color plate is usually used to make variety of instructions signage and badges with uniformity color,clean pattern,durable application.U.S. ROWMARK is recognized as the best products by its stabilize quality and full variety.
Working Live-action
We always pay more attention to the working quality of our laser engraving machine,if you have samples,welcome to send to us to test,and warmly welcome to visit our factory.
| Laser power/thickness | Acrylic/mm | Plywood/mm | MDF/mm |
| 25w | 1 | ||
| 40w | 3 | 0.5 | 0.5 |
| 60W | 8 | 5 | 4 |
| 80W/100W | 12 | 8 | 7 |
| 130W | 15 | 10 | 9 |
| 150W | 20 | 15 | 13 |
| 180W | 30 | 20 | 20 |
Sample
Rubber stamps engraving, acrylic engrave or cut, fabrics, leather, paper, bamboo and wooden product, film, canvas, etc. materials.
Advertisement , Garments sampling, Small width tailoring, leather industry, decoration, , packing and printing, model industry, craftwork and gift, etc. industries.

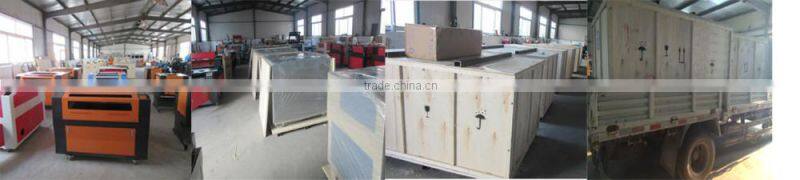

Packaging and shipping
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
3.The outmost is wooden case with fixed formwork. 4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Company information
Jinan Shendiao Mechanical Equipment Co.,Ltd is known for excellent service and bringing forth laser products that are the best quality of all Chinese laser cutting machines. This equipment can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, no noise, no dust, faster processing speed, higher precision, less waste and more efficiency. It is the best option for upgrading traditional equipment in various industries.
Our service
1. 24 hours technical support by e-mail, calling or door-to-door service. 2. English software, user manual and detailed Videos CD. 3. International quality certificate:CE,FDA. 4.12 months for machine warranty and long life span of laser tube. 5. Our technican can offer free training in our workshop.
FAQ
Q. Can the machine engraving and cutting? A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.
Q. is the machine must work with computer? A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.
Q. Can the machine be split so it can fit into my doors? A. no, it can't
Q. How long the laser tube is working well? A. Unfortunately we cannot confirm about this, it is about 3000+ hours.
Q. Do you avaliable spare parts? A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning? A. Yes they do but not after every job, once a week is normally enough
Q. Can I put larger materials in the machine? A. Yes, the machine has doors which can be opened to accommodate larger materials
Q. How about the after sell service? A. Free tech support for the whole life of the machine, and 24 hours telephone support. Camera of MSN support by MSN or skype online when you need.
Different machine working area :
| Machine model | Working area(mm) |
| SD-5030 | 500mm*300mm |
| SD-6040 | 600mm*400mm |
| SD-9060 | 900mm*600mm |
| SD-1290 | 1200mm*900mm |
| SD-1390 | 1300mm*900mm |
| SD-1410 | 1400mm*1000mm |
| SD-1325 | 1300mm*2500mm |
| SD-1630 | 1600mm*3000mm |
