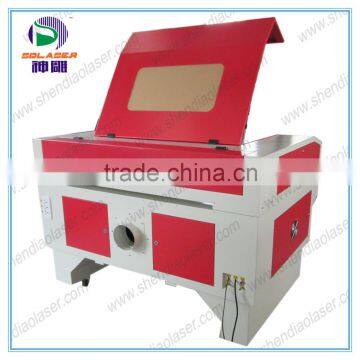

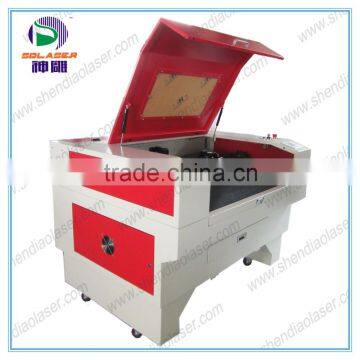

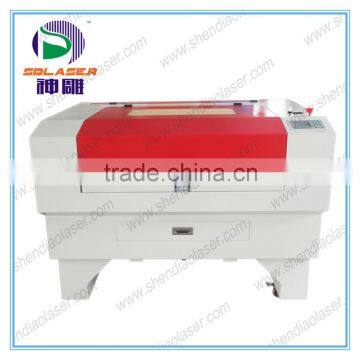

New year New Low Price New Laser Engraving Cutting Machine For Sale Made In China
We also have many different working size, such as 500*300mm, 400*400mm,1200*900mm, 1300*900mm,1400*900mm, 1300*2500mm, 1600*2500mm. And we can manufacture machines that can meet the customers' requirements.
Feature:
1. High C/P Value: High capacity and low price suit to initiate laser engraving machine user.
2. Motorized Auto Focus Module: Provide convenient laser beam auto focus function.
3. Pass Through Design: Convenient for continuous feeding process of long material front to rear.
4. Easy Maintain Design: Easy open able side covers make maintenance easier.
5. Motorize Working Table: Provide up to 300mm space for thick material.
6. Aluminum Table With Honeycomb Unit: East & convenient to place and pick engraving work pieces.
7. Fast Engraving Speed: Provide up to 1000mm/s (39.35inch/s),high accurate engraving speed.
Specification:
Model |
SD6090 Laser Engraving&Cutting machine |
Standard Laser power |
60w(80w/100w) |
Laser type |
sealed CO2 laser tube |
Working area(mm) |
600x900 |
Cutting depth |
Acrylic 0-20mm, depending on materials |
Engraving speed |
0-75000mm/min |
Cutting speed |
0-40000mm/min |
Location precision |
≤0.01mm |
Minimum forming character |
Chinese:2x2mm English: 1x 1mm |
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
Software supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Main Graphic format supported |
PLT/DXF/BMP/AI (Direct output) |
Engraver for Curve surfaces |
Rotary clamp is optional and used to engrave on curve surfaces |
Cooling mode |
Water-cooling and protection system |
Max thickness of engraved object |
280mm |
Laser tube(life hours) |
3500-4000hours |
Gross power |
1200w |
Driving system |
Stepper motor(x,y,z,axis) |
Machine control |
Speedy DSP controling |
G.W. |
280kg |
Applications |
acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials |
Working environment |
Temperature:0-45℃;Humidity:5%-95%; |
Cutting and Engraving materials: Bamboo, jade, marble, glass, crystal, plastic, garments, paperleather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and othe non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Applications of laser machines:
Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.
Optional water cooling:
Samples show:
Our Package Advantage:
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3.The outmost is wooden case with fixed formwork. 4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Guarantee and after-sales service:
1. one year equipment warranty and maintenance for lifetime.
2. Free installation and test before sending and free training for operators.
3. Advice for the solutions best for customers requirements.
4. 24 hours technical support by e-mail, calling or door-to-door service.
5. English software, user manual and detailed Videos CD.
Jinan Shendiao Mechanical Equipment Co.,Ltd is known for excellent service and bringing forth laser products that are the best quality of all Chinese laser cutting machines. This equipment can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, no noise, no dust, faster processing speed, higher precision, less waste and more efficiency. It is the best option for upgrading traditional equipment in various industries.
If custom ordering a machine, the color can also be specified.
Q:If our price is higher than other company or factory?
A:plaese check, what is is the different of the machine parts ,service and guarantee belive you will chooes the same value of the machine, not cheaper equipement.
Q.How long is the delivery time?
A.For standard machines, it would be 7-10 days;
For nonstandard machines and customized machines according to clients specific requirements, it
would be 15 to 30 days.
Q: Do You Arrange Shipment For The Machines?
A:Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q:What’s the guarantee?
A:1. Laser tube guarantees 12 months. While the whole machine guarantee for 1 year.
2. 24 hour’s technical support by email or calling.
3. English manual and video tutorial.
4. one year quality guaranty for the machine (excluding the consumables).
5. Lifetime maintenance free of charge.
6. We will provide the consumable parts at an agency price.
7. 12 hours on line service each day, free technical support.
If you are interested in our products, you can contact with me any time ! Welcome to chatting ! Thanks
