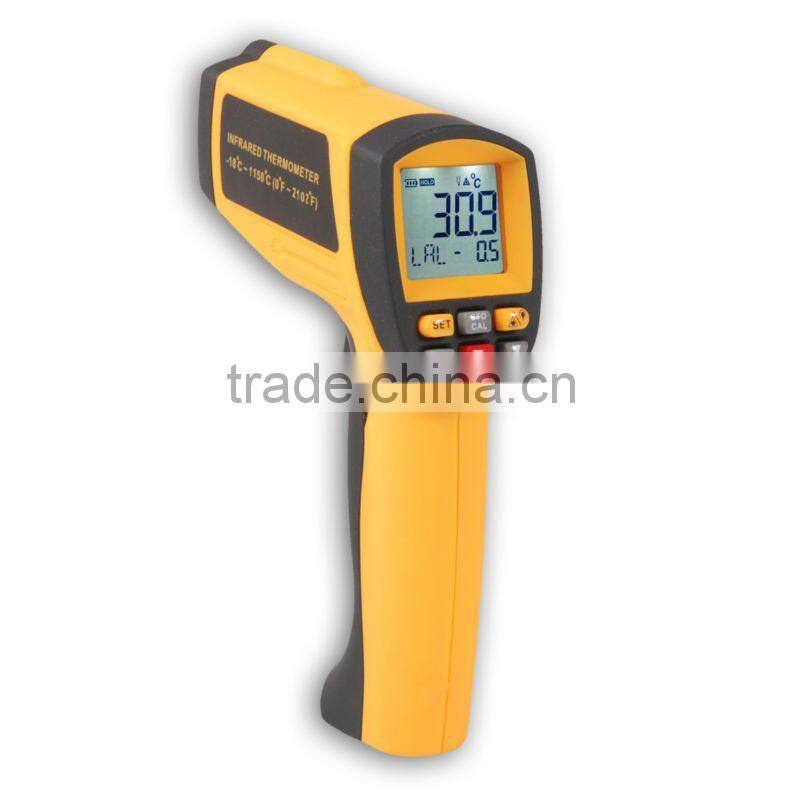

50:1 IR Thermometer with Laser Point (-18~1150 C / 0~2102 F)Brief Description
This Professional Digital Infrared Thermometer is compact and easy to use. It is a very useful item for measuring surface of hot, hazardous or hard to reach objects without having to touch them. You just aim with sharp Laser Point, press the button, and read the temperature in less than a second.
It has Wide Temperature Range from -18 to 1150 °C (0 ~ 2102 °F). The thermometer is also featured with Backlight LCD, Ultra High Distance to Spot Ratio (50:1), High Accuracy, Fast Responding Time (0.5 seconds), User Adjustable Emissivity from 0.10 to 1.00 and Spectral Response from 8 to 14 µm.
The thermometer is switchable between °C and °F and also has 12 memories data storage, Maximum, Minimum, Average and Differencetemperature functions, Adjustable High and Low Temperature Alarm and 3levels Battery Life function.
This is an ideal tool for industry, food preparation, horticulture, HVAC, construction, mechanics, medical, animal care and hot spots.
Infrared Technology
Infrared Thermometer measures the surface temperature of an object. The unit's optics sense emitted, reflected and transmitted energy which is collect and focused onto a detector.
The unit's electronics translate the information into a temperature reading which is displayed on the LCD. For increased ease and accuracy, the laser pointer makes aiming even more precise.
Applications
- Heat ventilation air-conditioning and refrigeration
- Automotive industry
- Electrical & power voltage/current inspection field
- Water treatment and water quality inspection
- Environmental monitoring
- Marine and weather
- Gas industry
- Food processing industry
Features
- Memory storage function (up to 12 data)
- Wide Temperature range with -18 ~ 1150 °C (0 ~ 2102 °F)
- With D:S = 50:1, maximum distance from the target object
- Highly accurate and reliable
- Adjustable Emissivity from 0.10 to 1.00 (Preset at 0.95)
- Spectral Response from 8 to 14 µm
- Large clear LCD display with Backlight
- 3 levels Battery Life Indication
- Auto Power Off
- Data Hold Function
- Access surface temperature in 1 second
- Selectable between °C and °F
- Maximum, Minimum, Average and Difference temperature functions
- Adjustable High / Low Temperature Alarm
- Fast response time (0.5 seconds)
- Measure hazardous or inaccessible objects (high-voltage parts)
- Pre-Calibrated in Factory
- Targeting guide or laser pointer with on/off switch for accuracy are provided
- Laser Pointer on/off feature
Specifications
- Measuring Range: -18 ~ 1150 °C (0 ~ 2302 °F)
- Accuracy
- 0 ~ 1150 °C (32 ~ 2302 °F) ±1.5°C (±2.7°F) or ± 1.5%
- -18 ~ 0 °C (0 ~ 32 °F) ±3°C (±5°C) or ± 2% whichever is greater
- Distance to Spot Size / DS Ratio: 50:1
- Data storage: 12 Memories
- Resolution: 0.1 °C or 0.1 °F
- Repeatability: 1% of reading or 1 °C
- Response Time: 0.5 seconds, 95% response
- Spectral Response: 8 ~ 14 µm
- Emissivity: adjustable 0.10 ~ 1.00 (Preset 0.95)
- Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
- Relative Humidity: 10 ~ 95% R.H. non-condensing at up to 30 °C (86 °F)
- Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
- Low battery indication (3 levels)
- Power: 1 x 9V Battery (not included)
- Battery Life: 12 hours (Laser), 22 hours (non-Laser)
- Item Size: approx. 200 (L) x 141 (W) x 60 (D) mm (7.87 x 5.55 x 2.36 inch)
- Item Weight: approx. 272 g (9.6 oz)
Table of approximate emissivity:
Material |
Emissivity |
Material |
Emissivity |
Aluminum |
0.30 |
Lead |
0.50 |
Asphalt |
0.95 |
Limestone |
0.98 |
Basalt |
0.70 |
Oil |
0.94 |
Brass |
0.50 |
Paint |
0.93 |
Brick |
0.90 |
Paper |
0.95 |
Carbon |
0.85 |
Plastic |
0.95 |
Ceramic |
0.95 |
Rubber |
0.95 |
Concrete |
0.95 |
Sand |
0.90 |
Copper |
0.95 |
Skin |
0.98 |
Dirt |
0.94 |
Snow |
0.90 |
Frozen Food |
0.90 |
Steel |
0.80 |
Hot Food |
0.93 |
Textiles |
0.94 |
Glass (plate) |
0.85 |
Water |
0.93 |
Ice |
0.98 |
Wood |
0.94 |
Iron |
0.70 |
|
|
One Set Included
- 1 x Professional Infrared Thermometer
- 1 x Instruction Manual
- Standard Factory Package
