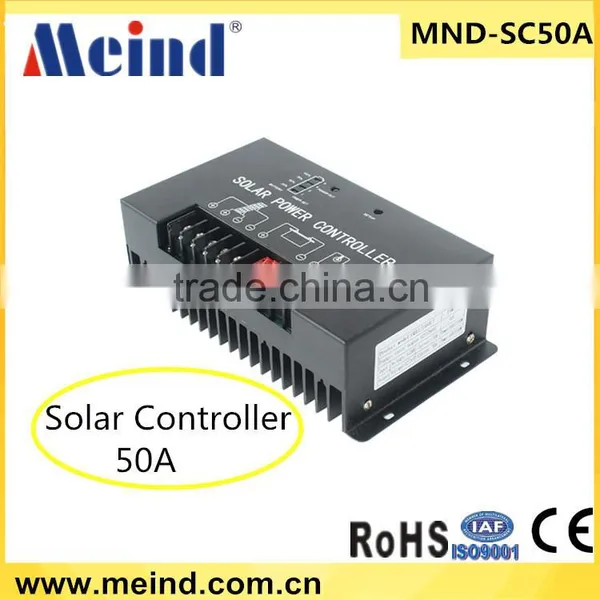

Help CenterPWM Solar Charge Controller 12V MND-SC-50A
Related Products
-
PWM Solar Charge Controller 12V , MND-SC30AUS$ 13 - 13.5MOQ: 50 Pieces -
Meind PWM Solar Charge Controller 50A for off Grid Soalr SystemUS$ 19 - 23.5MOQ: 50 Pieces
-
Meind Intelligent 20A Solar Charge Controller for Solar off Grid Power SystemUS$ 1 - 100MOQ: 1 Unit
-
Meind Intelligent 50A12V/24V Auto Solar Charge Controller for Solar off Grid Power SystemUS$ 1 - 100MOQ: 1 Unit
-
30A 12v/24v Auto Solar Charge Controller for Home Solar SystemUS$ 12 - 18MOQ: 100 Pieces
Specifications
PWM solar charge controller
1,12V/24V,automatic recognition
2,CE,ROSH
3,PWM Solar Charge Controller,solar system controller
PWM solar charge controller
Solar Charge Controllers,solar system controller
solar controllers, solar controller, solar intelligent controller, solar charge controller, solar power controller.charge controller,SML, power solar controller, solar charger controller, intelligent controller, off-grid charge controller
Function:
1.Battery State-of-Charge display with 3 LEDs.
2.Acoustic load disconnect pre-warning.
3.PWM-regulation (series type).
4.Boost, Equal ize and Float charging, also for VRLA.
5.Automatic 12/24 Volt detection.
6.Integrated temperature compensation.
7.Large terminals (up to 16mm2 wire size).
8.SOC and voltage control led LVD.
9.Fully electronical ly protected.
The SC series is a sophisticated solar charge controller family for low cost
appl ications.The electronic circui t is equipped with a microcontrol ler that provides
high-efficiency charging technology together with a number of outstanding
status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost -
equalizat ionfloat ) is now adjustable to sealed and vented lead-acid batteries.
The new version al so allows an either SOC or voltage cont rolled low
voltage disconnect function. The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low
vol tage load disconnect pre-warning feature.
Model SC5 SC10 SC20 SC30 SC50
Max. module current 5A 10A 20A 30A 50A
Max. load current 5A 10A 20A 30A 50A
System voltage 12V/24V
Self power consumption <4mA
Dimensions(W×H×D) 80*100*32mm
Type of protection IP22
