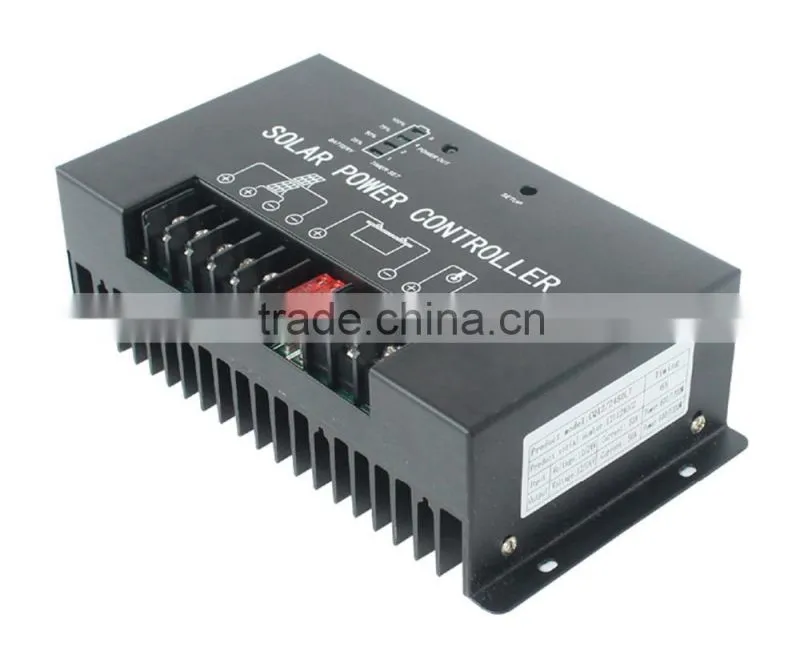

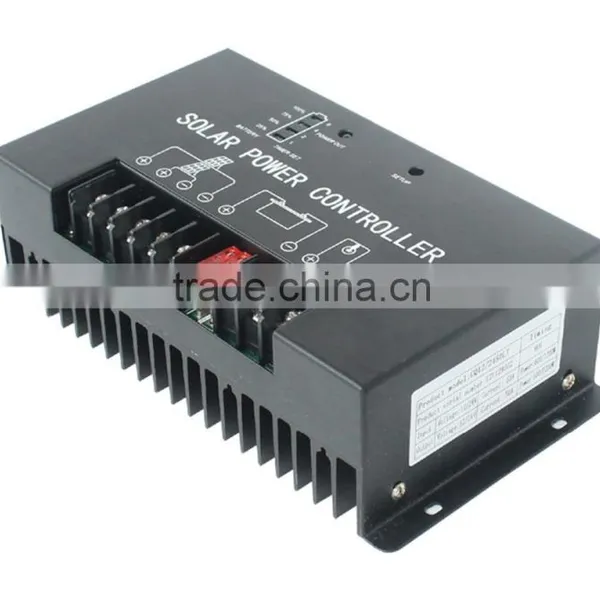

Help CenterMeind Intelligent 50A12V/24V Auto Solar Charge Controller for Solar off Grid Power System
Related Products
-
30A 12v/24v Auto Solar Charge Controller for Home Solar SystemUS$ 12 - 18MOQ: 100 Pieces -
Meind Intelligent 10A Solar Charge Controller for Solar off Grid Power SystemUS$ 1 - 100MOQ: 1 Unit
-
10A Solar Charge Controller for Home Solar SystemUS$ 1 - 100MOQ: 1 Unit
-
50A 12v/24v Auto Solar Charge Controller for Home Solar SystemUS$ 19 - 25MOQ: 100 Pieces
-
20A Solar Charge Controller for Home Solar System 12v/24v AutoUS$ 8 - 15MOQ: 100 Pieces
[PRODUCT FEATURE]
[1] Use MCU and special software base on expert control system to realize intelligent optimization SOC control.
[2] Have temperature compensation function. Use outlay temperature sensor to control precision is higher than inlay temperature sensor.
[3] Have over charge,over discharge,over load,short circuit,defend counterattack etc protection.
[4] Use series connection PWM charge circuit.Charge return circuit voltage loss reduce one half than use diode.Charge efficiency is 3%-6% higher than not PWM, delay use time and life of products.
[5] LED indicating the system of charging, overcharge, power full, power low, over-discharge, over load,open/ short circuit, load on/off, etc.
[6] Use flash memory to save all work control point instead of adjustable resistance, to protect the control work point from going off as the adjustable resistance value is easily changed by temperature and vibration, in order to make sure the control accuracy and reliability.
| * MODEL | SR-L-50A |
| * RATED CHARGE CURRENT | 50A |
| * RATED LOAD CURRENT | 50A |
| * SYSTEM VOLTAGE | 12v; 12/24V Auto |
| * OVER LOAD/SHORT CIRCUIT PROTECTION |
* 1.25 times rated load current 60sec, 1.5 times rated loads current 5sec, over load protective action * Not less than 3 times rated load current short circuit protection |
| * NO-LOAD LOSS | Not more than 6MA(≤6MA) |
| * CHARGE LOOP DROP | Not More Than 0.26V |
| * DISCHARGE LOOP DROP | Not More Than 0.15V |
| * OVER VOLTAGE PROTECTION | 17V; ×2/24V |
| * WORK TEMPERATURE | Industry stage:-35℃ to +55℃ |
| * BOOST CHARGE VOLTAGE | 14.6V;×2/24V(keep 10min) |
| * DIRECT CHARGE VOLTAGE | 14.4V;×2/24V(keep 10min) |
| * FLOAT CHARGE VOLTAGE | 13.6V; ×2/24V |
| * CHARGE RETURN VOLTAGE | 13.2v;×2/24V |
| * TEMPERATURE COMPENSATION | -5mv/℃/cell (Boost charge, Direct charge, Float charge, charge return voltage) |
| * LOWER VOLTAGE INDICATE | 12.0V; ×2/24V |
| * OVER DISCHARGE VOLTAGE | 11.1V(no load)- real-time modified voltage by the discharge rate; ×2/24V |
| * OVER DISCHARGE RETURN VOLTAGE | 12.6V; ×2/24V |
| * PRODUCT SIZE | 133MM*70MM*30MM |
| * PRODUCT N.W. | 195G |
| * CONTROL MODE | Light Operated OR Time Operated Mode /PWM |
