Home > Instruments & Meters > Test Instrument > Test Machine > Digital Horizontal Profile Projector HB12-2010

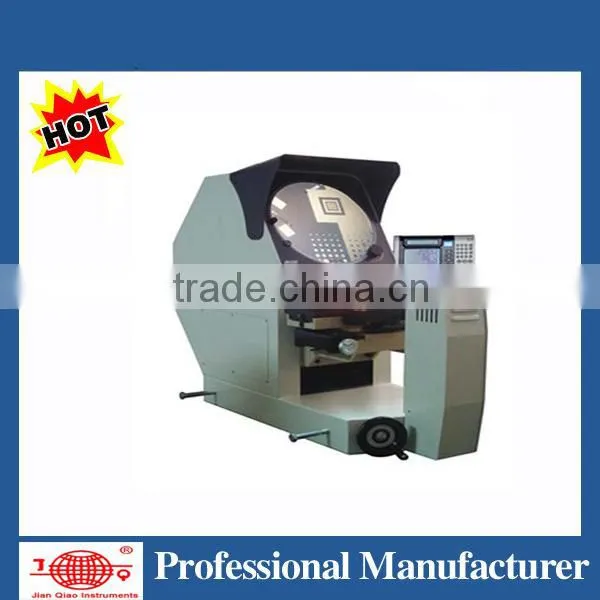

Digital Horizontal Profile Projector HB12-2010

Name: Digital Horizontal Profile Projector HB12-2010
Brand: JIANQIAO
SKU: 109932855

US$ 3,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

JIANQIAO

Model Number:

HB12-2010

Contact Supplier Request Quote Chat Now

Dongguan Jianqiao Testing Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name JIANQIAO

Model Number HB12-2010

Power Electronic

Usage Other, profile projector

Specifications

Profile Projector:
1.Screem:300mm
2.Passed ISO and CE certificate
3.High precision:0.001mm

Φ300mm Digital Horizontal Profile Projector HB12-2010

300mm diameter screen with digital protractor;
Workstage sway range between±15°;
200x100mm precision movement workstage;
Halogen profile and surface illumination;
Geometric multifunction data processing system;
Available mini-printer,rotary table foot-switch

Product Name	Φ300mm Digital Horizontal Profile Projector
Model	HB12-2010
Code#	511-301
Screen Diameter	Ø308mm
Stage Travel: X and Y-axis	200x100mm
Metal Stage Dimension	408 x 126mm
Resolution of X and Y-scale	0.0005mm
Z-axis Tracel	90mm(for focusing)
Rotary Range of Screen	0~360°
Resolution of Rotary Indication	1’ or 0.01°
Accuracy	≤4+L/25(um)
Digital Readout	DP100 multifunction data processing system
Instrument Illumination	Contour illumination: 24V/150W (Halogen Lamp)
Instrument Illumination	Surface illumination: 21V/150W(Optical Fiber)
Power Supply	AC110V/60Hz; 220V/50Hz, 400W
Dimension(L×W×H)	1160 x 600 x960mm
Instrument Gross/Net Weight	200/160Kg
Packing dimension(LxWxH)	1300 x 880 x1250mm

HB12-2010 Standard Delivery:

Standard Delivery	Model	Standard Delivery	Model
Main Unit	HB12-2010	Screen Clamp	---------
Profile Objective	HB12-10X	Mini-Printer	---------
Digital Readout	DP100	Power Cable	---------
Operation Manual	HB12-2010	Operation Manual	DP100
