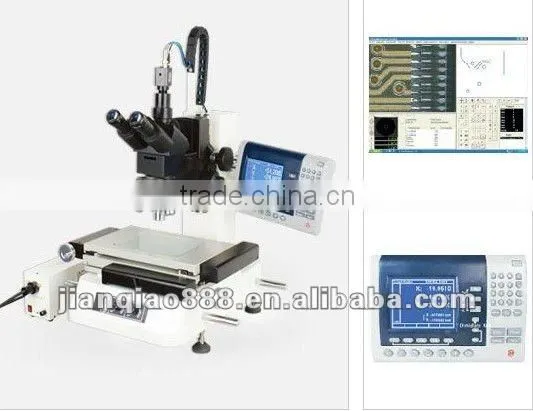

Help CenterStereoscopic Microscope (JQ-1860)
Related Products
-
Digital Tool-maker Measuring Microscope (JQ-1860)US$ 6,000 - 17,800MOQ: 1 Set -
Digital Vertical Optical Profile Projector (JQ-3015)US$ 3,000 - 5,000MOQ: 1 Set
-
Digital Measuring MicroscopeUS$ 5,800 - 20,000MOQ: 1 Set
-
Video Inspection MachineUS$ 2,200 - 5,500MOQ: 1 Set
-
3d Video SystemsUS$ 2,200 - 5,500MOQ: 1 Set
Specifications
Binocular MicroscopeMeasurement Microscope
Video Tool-maker Binocular Microscope
measurement microscopes, a measuring microscope can be used to perform both measurement and observation ,inspecting a variety of objects including semiconductor, electronic and electrical components, automobile precision components, resin moldings, tools, and medical products. For example, this type of microscope can be used to measure an object that is too soft for contact measurement probe to contact. A balance between optical performance, overall accuracy , and ease of use is an important requirement for a measuring microscope.
Specifications |
JQ-1960 |
JQ-1860 |
Metal table size |
450x280mm |
404x228mm |
Glass table size |
306x196mm |
260x160mm |
X,Y,Z-axis travel |
200x100x100mm |
150x100x100mm |
X,Y,Z-axis resolution |
0.0005mm |
0.0005mm |
X,Y,Z-axis accuracy |
≤(3+L/200)um |
≤(3+L/200)um |
Net Weight |
120kg |
110kg |
Dimension |
530x540x850mm |
530x540x850mm |
Optical Microscope System |
Eyepiece:SWF10/23(412-103;412*103) |
|
Zoom click stereo objectives:0.7x ~ 4.5x(411*003) | ||
Optical magnification:3.5x ~270x | ||
Digital Magnification System |
Sony1/2’’CCD Camera MC3(484-123) |
|
1x CCD adapter(532-C13) | ||
Digital magnification:15x~350x | ||
Digital Measuring System |
Dell PC with 17’’ quadrate monitor; |
|
Digital readout DP300(561-301) | ||
2.5D English software QuickMeasuring 2.0 Version (QM2.0) | ||
