Tumbling Barrel Test machine
1. Product introduction for Tumbling Barrel Test machine
The Tumbling Barrel Test machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.
The Tumbling Barrel Tester is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant specification.

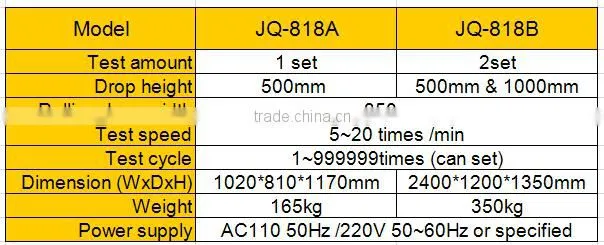

2. Specification for Tumbling Barrel Test machine
JQ-818B
JQ-818A
Dongguan Jianqiao Testing Equipment Co.,Ltd. is a China base manufacturer and exporter of testing equipment. It is a high-tech company in metal and non-mental materials testing,measuring,and analytic industries. We are specialized in R&D,production,focus more on quality and after-sales service.
We always try our best to devote ourself in providing high quality products which based on our innovation,exellent technoligy team,and strict production control system.
Our Products
ISO 9001 Certificate
1.Pre-service
24 Hours online service for your consult
Help choose right model with series of service,person, and adviece
2.Middle service
--Give you best offer
--Provide favourable discount
--Meet your demand
--Choose payment term you convienent
--Promptly production and delivery, inform you in time
--Provide invoice value as you like to decrease your tax
3.After-sale service
--1-year warranty service
--Technical Egineer are avalible for oversea trainning
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why Choose Us?
1.We are professional test equipment manufature in china,has excellent experience.
2.We have advanced machine equipment, cost savings.
3.We supply 24 hours online service to slove your every question.
4.We have the best knowledge about the drying machine in USA,UK,CANADA,SOUTH AFRICA,INDIA,AUSTRALIA,ETC.
If any questions or need more information,please feel free to contact us.
Warmly welcome your visit to our factory!
