Sine and Random Vibration Test System Equipment
Application
Sine and Random Vibration Test System Equipment used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances
and other fields. The air-cooled electro-dynamic shakers are designed for the vibration testing of small electronic or mechanical components or other assemblies
up to 200 kg
- Electronic parts and systems - qualification testing
- Computer equipment testing
- Automotive component testing
- Satellite component testing
- General stress screening
Key Feafures
- Armatures diameters from 110 mm (4.3 in) to 200 mm (7.9 in) .
- Pneumatic load support
- Rugged trunnion design
- Big displacement up to 51mm
- Standard body isolation and guidance system designed to eliminate the use of a seismic base
- Useful vibration control frequency range from 5 to 4500 Hz
- Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
- High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
- Rapid self-test diagnostics and chain safeguard, high high safety and reliability
- Different application on the vertical and horizontal tables.
- Simple operation for the controller.
Specification
Model |
Rated Sine |
Rated Random |
Shock Force (N) |
Frequency |
Rated Acceleration (m/s2) |
Rated Speed(m/s) |
Rated Replacement (p-p)mm |
Max. Load(Kg) |
Rated Power(KVA) |
Dimension of |
JQ-100-1 |
980 |
980 |
980 |
5-4500 |
490 |
1.75 |
25 |
70 |
4.5 |
Φ110 |
JQ-150-1 |
1470
|
1470 | 2940 | 5-4500 | 735 | 1.15 | 25 | 70 | 4.5 | Φ110 |
JQ-200-2 |
1960 | 1960 | 3920 | 5-4500 | 980 | 1.75 | 25 | 70 | 5.5 |
Φ110 |
JQ-300-2 |
2940 |
2940 |
5880 | 5-4000 | 980 | 1.1 |
25 | 120 | 6.5 | Φ150 |
JQ-300-3 |
2940 |
2940 | 5880 |
5-4000 | 980 | 1.6 |
25 | 120 | 7.5 | Φ150 |
JQ-600-3 |
5880
|
5880 |
11760 |
5-3000 |
980 | 0.8 |
25 |
200 | 15 | Φ200 |
JQ-600-5 |
5880 |
5880 | 11760 |
5-3000 |
980 | 1.5 | 25 |
200 |
17 |
Φ200 |
JQ-1000-8 |
9800 |
9800 | 19600 |
5-3000 |
1176 | 1.4 |
25 | 120 | 18 | Φ200 |
| JQ-1000-10 | 9800 | 9800 | 19600 |
5-3000 | 1176 | 1.8 | 25 | 120 | 20 | Φ200 |
| JQ-1000-12 | 9800 | 9800 | 19600 | 5-3000 | 1176 | 2 | 25 | 120 | 22 | Φ200 |
| DC-1000-12 | 9800 | 9800 | 19600 | 5-3000 | 1020 | 2 | 51 | 140 | 22 | Φ210 |
| DC-1500-18 | 14700 | 14700 | 29400 | 5-3000 | 816 | 1.85 | 51 | 300 | 28 | Φ280 |
| DC-2000-21 | 19600 | 19600 | 39200 | 5-3000 | 980 | 1.85 | 51 | 300 | 33 | Φ 280 |
| DC-2200-25 | 21560 | 21560 | 43120 | 5-3000 | 980 | 1.8 | 51 | 300 | 37 | Φ 280 |
| DC-2500-23 | 24500 | 24500 | 49000 | 5-2500 | 880 | 1.2 | 51 | 500 | 40 | Φ 320 |
| DC-3000-26 | 29400 | 29400 | 58800 | 5-2500 | 980 | 1.5 | 5 | 500 | 42 | Φ 320 |
| DC-3000-30 | 29400 | 29400 | 58800 | 5-2500 | 980 | 1.7 | 51 | 500 | 45 | Φ 320 |
| DC-3600-35 | 35280 | 35280 | 70560 | 5-2500 | 980 | 1.4 | 51 | 500 | 50 | Φ 320 |
| DC-5000-45 | 49000 | 49000 | 98000 | 5-2500 | 980 | 1.5 | 51 | 1000 | 76 | Φ 400 |

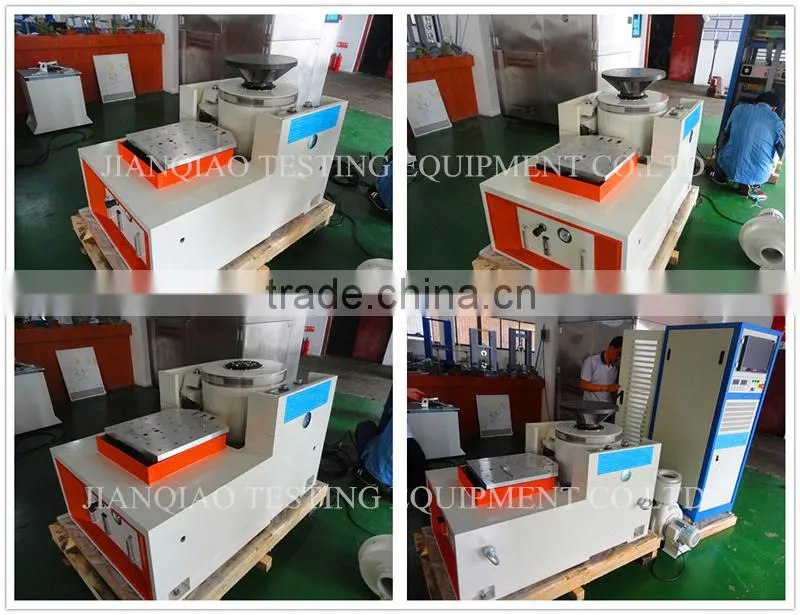

Horizontal & Vertical vibration model
Product fixed

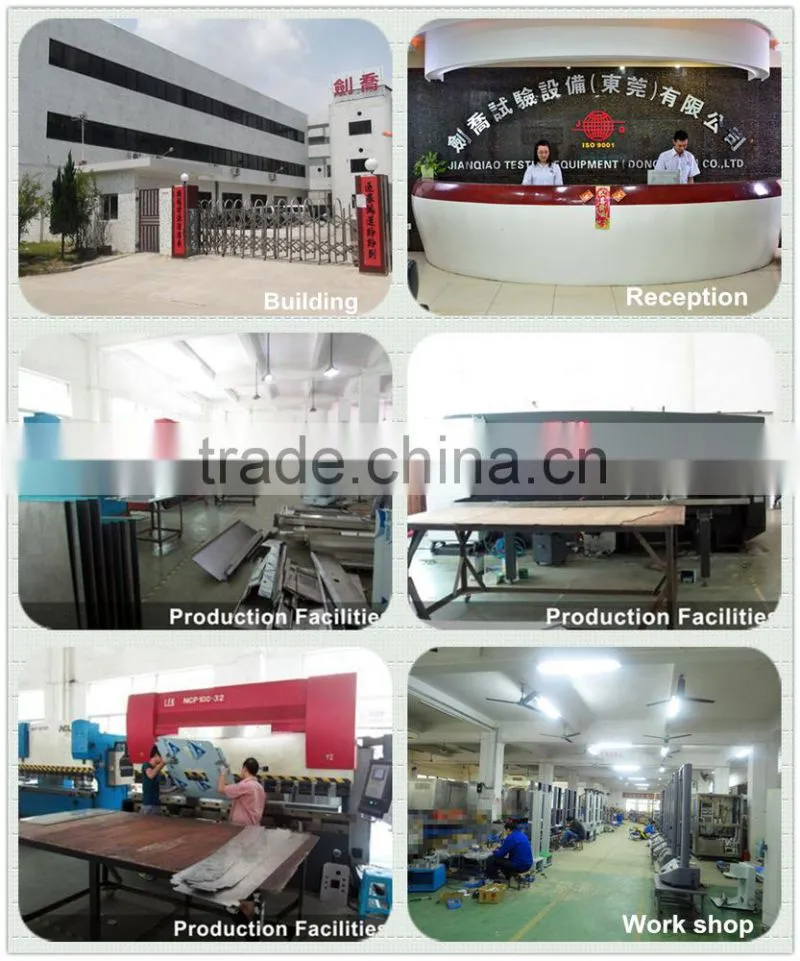

Dongguan Jianqiao Testing Equipment Co.,Ltd. is a China base manufacturer and exporter of testing equipment. It is a high-tech company in metal and non-mental materials testing,measuring,and analytic industries. We are specialized in R&D,production,focus more on quality and after-sales service.
We always try our best to devote ourself in providing high quality products which based on our innovation,exellent technoligy team,and strict production control system.
Our Products
ISO 9001 Certificate
Delivery:Ship from Shenzhen by sea.
Packaging Details: packed in one fumigated heat treating wooden package.
Customers's requirements are also allowed.
Customer Question: What is your transportation?
JianQiao Answer: Ship from Shenzhen port by sea.
Customer Question: What is the trade terms?
JianQiao Answer: FOB or CIF.
Customer Question: What is your package?
JianQiao Answer: packed in one fumigated heat treating wooden package.
Your requirements are also allowed.
Customer Question: What is about the delivery time?
JianQiao Answer: Within 7 days after your payment.
1.Pre-service
24 Hours online service for your consult
Help choose right model with series of service,person, and adviece
2.Middle service
--Give you best offer
--Provide favourable discount
--Meet your demand
--Choose payment term you convienent
3.After-sale service
--1-year warranty service
--Technical Egineer are avalible for oversea trainning
--Free change for some parts
--Remote control technical consult
--Maintenance plan
If any questions or need more information,please feel free to contact us.
Warmly welcome your visit to our factory!
