3.5 Camera Digital Night Vision Pan Tilt PTZ Zoom Video Wireless Baby Monitor

3.5 Camera Digital Night Vision Pan Tilt PTZ Zoom Video Wireless Baby Monitor thumbnail-1
3.5 Camera Digital Night Vision Pan Tilt PTZ Zoom Video Wireless Baby Monitor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
BB-109
LCD Size:
Other, 3.5 inch
Contact Supplier Request Quote Chat Now
Rise Enterprise Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BB-109
LCD Size Other, 3.5 inch

Specifications

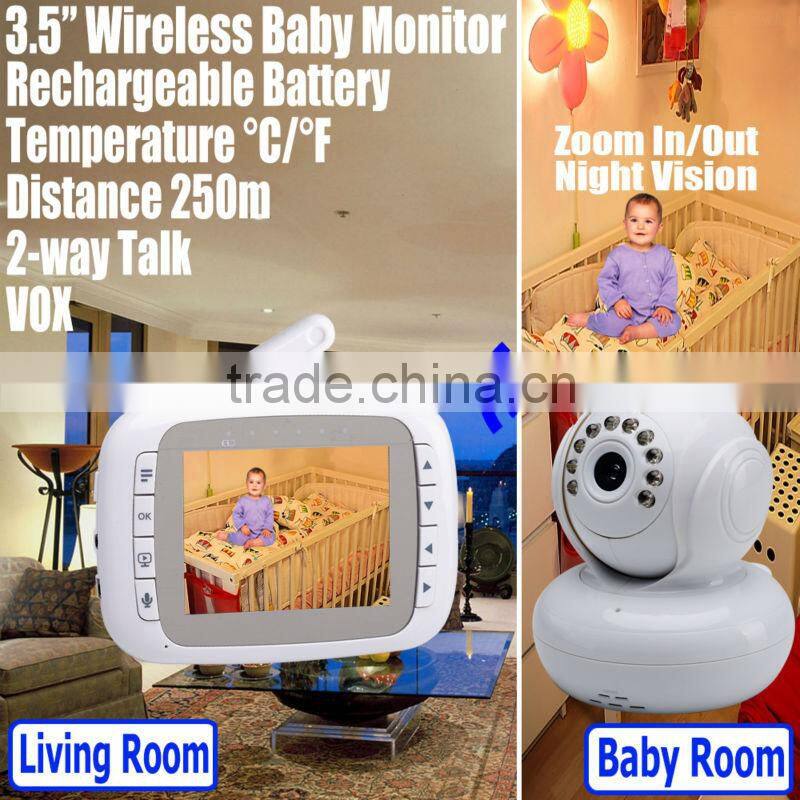

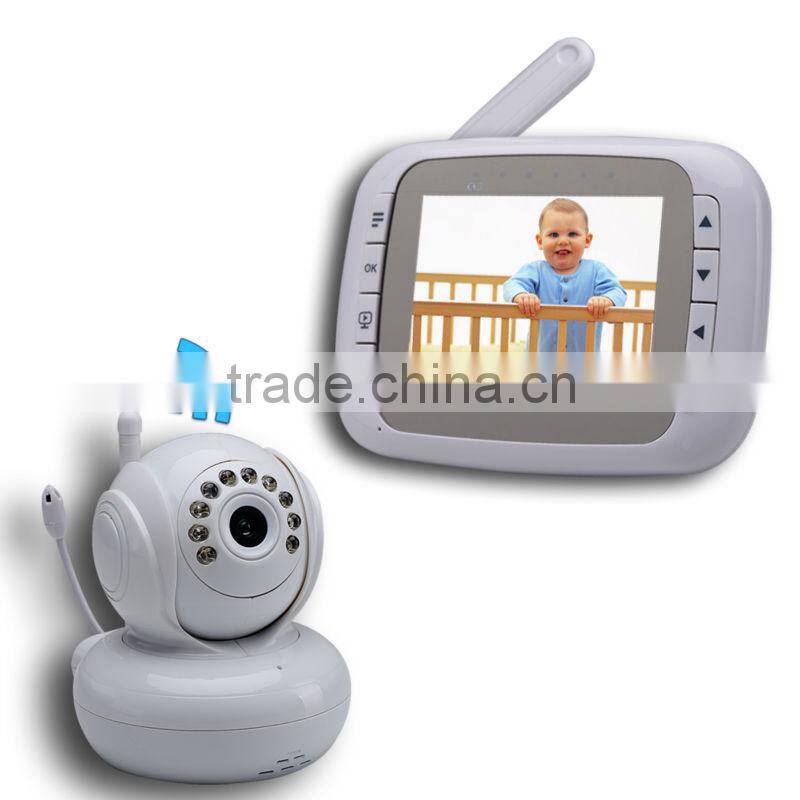

3.5" Wireless PTZ Baby Monitor

Brief Description



This Digital Baby Monitor set composes of a camera and a LCD receiver to allow you to keep an eye on your baby in your home. Unlike with traditional analogue systems, this digital baby monitor set can dynamicallyand automatically select the best frequency for visual and audio transmission for a longer distance. You can have good quality of visual and audio without interference including home Wi-Fi.



You can remotely control the camera to 2X zoom and pan and tilt (270° horizontally & 120° vertically) by the receiver to see different angles inside the baby room. Both the camera and receiver have built-in microphone & speaker which allows 2-way communication and VOX function. Moreover, one receiver cansupport up to 4 cameras in 4 channels and parents can monitor their baby in different locations inside a big house or several babies in different rooms.



There are also other useful and convenient features with this baby monitor. The receiver has 3.5 inch large and clear TFT LCD (320 x 240) with 25 fps frame rate. The camera equips 9pcs of LED for IR night vision up to 5m and temperature sensor to give temperature (  °C/ °F) of baby room on the receiver. Besides AC power, both the receiver and camera can be powered by built-in rechargeable battery for easy relocation.





Features

  • Real-time high quality visual and audio monitoring
  • Maximum signal transmission up to 250m (820 feet) without blocking
  • Digital pairing between camera and receiver
  • 1 receiver supports up to 4 cameras in 4 channels
  • Interference free including home Wi-Fi
  • 3.5” large and clear TFT LCD with 320 x 240 resolution
  • Pan and tilt camera (270° horizontally & 120° vertically)
  • 2X digital zoom
  • Built-in microphone and speaker in both camera and receiver for 2-way intercom
  • Highly sensitive microphone
  • Voice Control (VOX) Function
  • Temperature monitoring ( °C/ °F)
  • Infrared night vision
  • Adjustable brightness and volume in receiver
  • AV output
  • Signal strength indicator
  • Dual power source for both camera and receiver
  • Optional additional camera with AC adapter (US $59.9 / GBP £38.9 / EUR €45.90 / AU $64.9 Only)





Specifications



General Specifications

  • Transmission Frequency: 2400 ~ 2480 MHz
  • Transmission Power: 17 dBm
  • Operating Frequency: 2410 MHz
  • Unobstructed Effective Range: 250m (820 feet)
  • Spread Spectrum: FHSS
  • Operation Temperature: 0 ~ 60 °C (32 ~ 140 °F)
  • Storage Temperature: 25 °C (77 °F)
  • Operating Humidity: 20 ~ 80 % R.H.

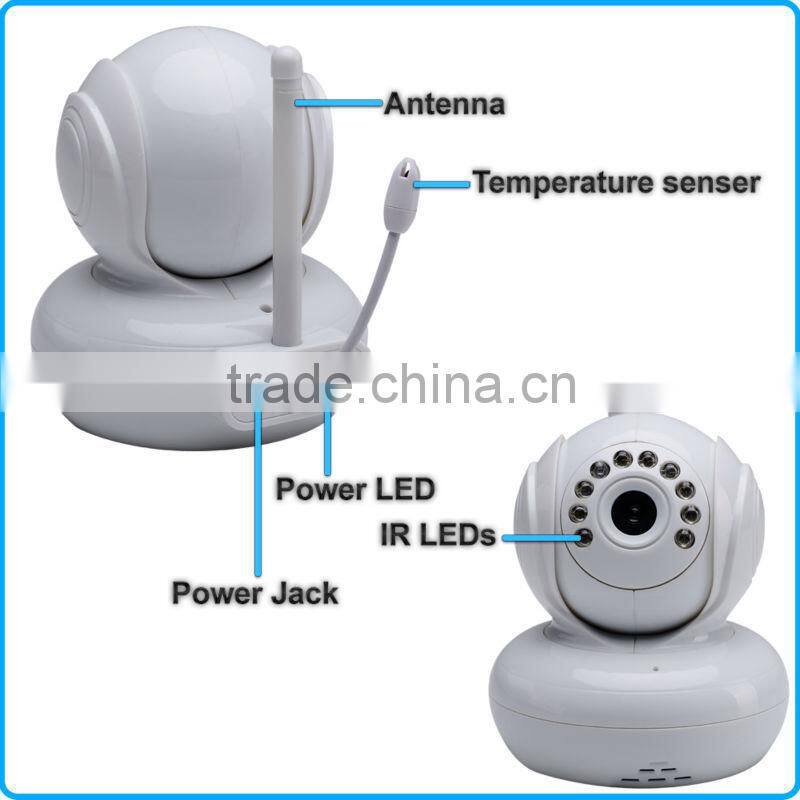

Camera

  • Imaging Sensor Type: 1/4 CMOS
  • Minimum Illumination: 1.5 Lux
  • Night Vision Distance: 3 ~ 5 m (9.8 ~ 16.4 feet)
  • VOX: >10m
  • View Angle: 60°
  • Band Width: 4 MHz
  • Frame Rate: 25 fps
  • Sound Detection Sensitivity: > 60 dBA
  • Consumption Current (Max): 220mA + 15mA
  • Power Supply: 5V DC by AC Adapter (100 ~ 240V)
  • Dimension: approx. 98 x 89 x 85 mm (3.86 x 3.50 x 3.35 inch)
  • Weight: approx. 205 g (7.23 oz)

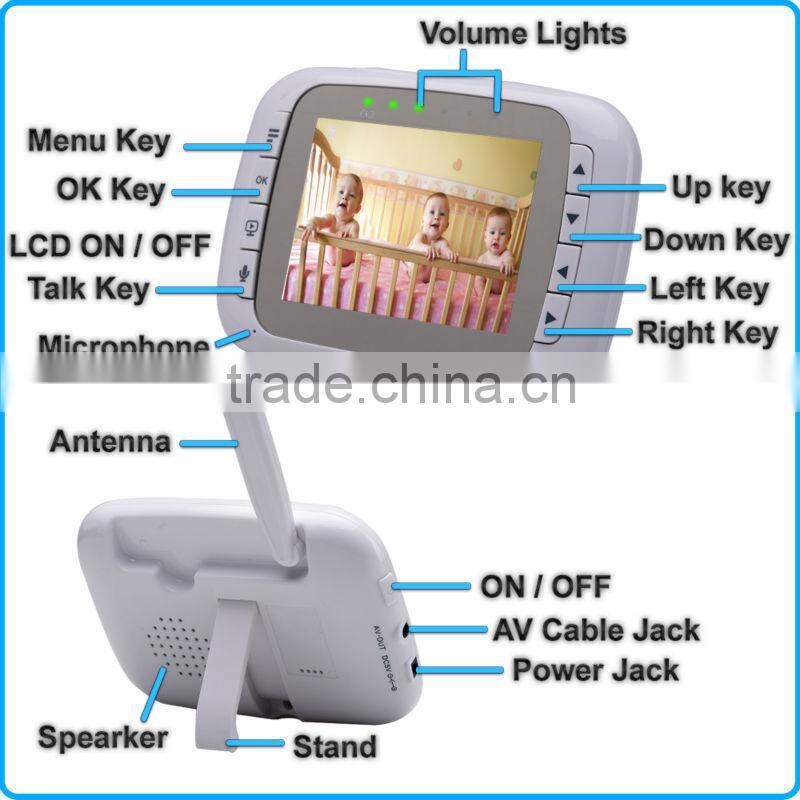

Receiver

  • LCD Screen: 3.5 inch TFT LCD
  • Effective Pixels (R.G.B): 320 x 240
  • Receiving Sensitivity: -85 dBm
  • Consumption Current: 200 mA + 15mA
  • Power Supply: 5V DC by AC Adapter (100 ~ 240V)
  • Dimension: approx. 125 x 90 x 23 mm (4.92 x 3.54 x 0.91 inch)
  • Weight: approx. 155 g (5.47 oz)

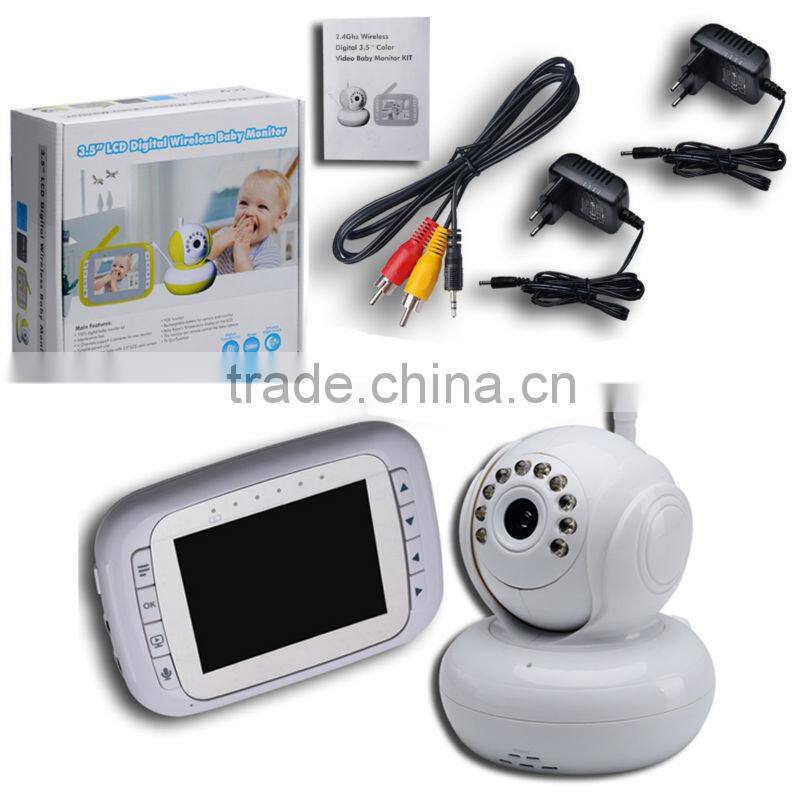

One Set Included

  • 1 x 2.4GHz Wireless PTZ Camera
  • 1 x 3.5” Wireless Receiver
  • 1 x Power Adapter for Camera (100 ~ 240V)
  • 1 x Power Adapter for Receiver (100 ~ 240V)
  • 1 x AV Cable
  • Optional additional camera with AC adapter (US $59.9 / GBP £38.9 / EUR €45.90 / AU $64.9 Only)
  • 1 x Instruction Manual
  • Color Retailed Box Package
