2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor

2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor thumbnail-1
2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
BB-101
LCD Size:
Other, 2.4'' TFT
Contact Supplier Request Quote Chat Now
Rise Enterprise Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BB-101
LCD Size Other, 2.4'' TFT

Specifications

2.4" Digital Wireless Pan & Tilt Baby Monitor PTZ Camera

Brief Description



This Digital Baby monitors set allows you to watch your baby with a portable receiver. Unlike with traditional analogue systems, this Digital baby monitor set can dynamically and automatically select best frequency for video and audio transmission. This means you can see good quality video and audio without interference including WiFi. The wireless signal can be kept private from other wireless device to ensure security.



The Receiver has 2.36 inch Large and Clear TFT LCD Display with 300k pixels Resolution. You can remotely control the Camera Horizontally (270 °) and Vertically (120 °). It can support up to 4 cameras for one receiver and you can switch 4 channels within 2.4 GHz.



The Receiver has Digital Zoom and dual power supply (Battery and AC power) for portable monitoring. You can connect the receiver to TV through AV cable. The Camera has LEDs with night vision function so that you can monitor your baby in any time even in complete darkness.





Features

  • 2.36 inch (6 cm) Large and Clear TFT LCD Display with 300k pixels Resolution
  • Real-time high quality video and audio monitoring
  • Camera can be remotely controlled Horizontally (270 °) and Vertically (120 °)
  • Digital Pairing between Camera and Receiver
  • Interference Free including WiFi (Clear Video and Audio Transmission)
  • Encrypted digital wireless signal for privacy protection
  • 4 Channels within 2.4 GHz, support up to 4 cameras for one receiver
  • Automatic Channel switching scheme for avoiding interference
  • Infrared Night Vision
  • Support Digital Zoom
  • High Sensitivity Microphone and built-in speaker
  • Connection to TV for monitoring with AV cable
  • Adjustable brightness and volume in LCD of receiver
  • Power Strength Indicator
  • Signal Strength Indicator
  • Dual power supply in Receiver (AC power or 4 AAA Batteries)
  • Maximum signal transmission up to 300m (984 feet) without block
  • Optional Additional Camera with Adapter (supports up to 4 cameras)



Specifications



General Specifications

  • Transmission Frequency: 2400 ~ 2483 MHz
  • Transmission Power: 17±3 dBm
  • Unobstructed Effective Range: 300m (984 feet)
  • Spread Spectrum: FHSS
  • Modulation Mode: GFSK
  • Operation Temperature: 0 ~ 50  °C (32 ~ 122 °F)
  • Operating Humidity: 15 ~ 85 % R.H.

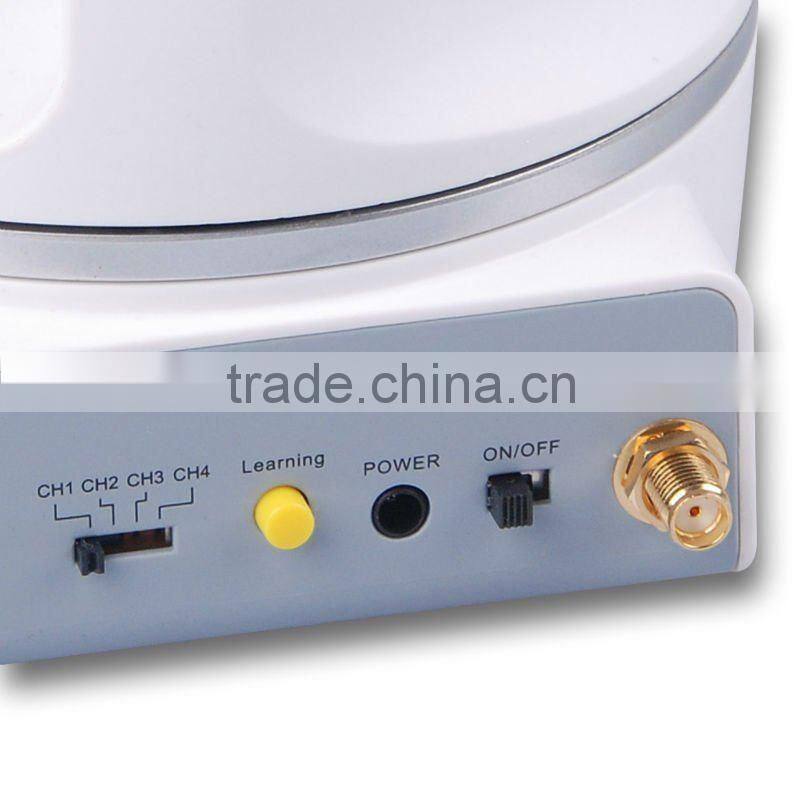

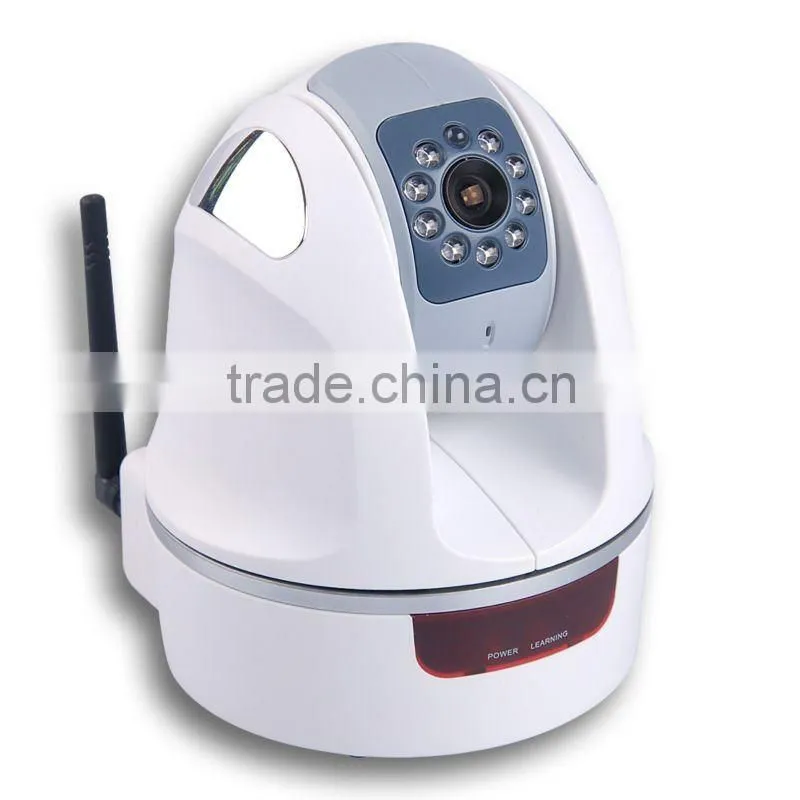

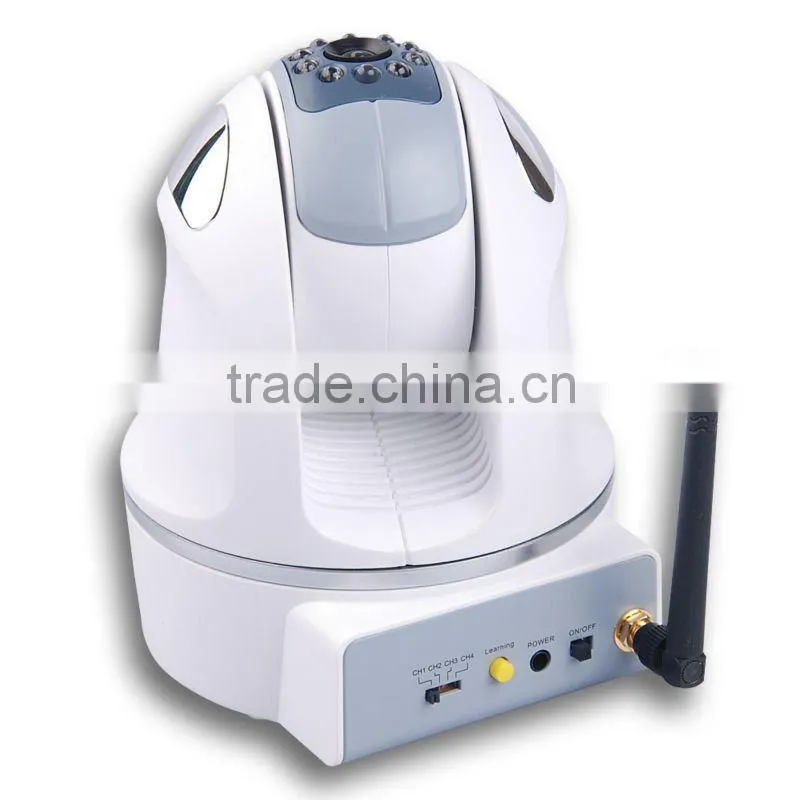

Camera

  • Imaging Sensor Type: CMOS
  • Picture Total Pixels: 640 x 480 (PAL/NTSC)
  • Minimum Illumination: 0 Lux (IR On); 5 Lux (IR Off)
  • Night Vision Distance: 5 m (16.4 feet)
  • View Angle: 55 °
  • Band Width: 3 MHz
  • Sound Detection Sensitivity: < -38 dB
  • Consumption Current (Max): 500 mA
  • Power Supply: 5 V DC by AC Adapter (100 ~ 240 V for EU / UK / AU / US)
  • Dimension (Camera): approx. 112 (L) x 109 (W) x 133 (W) mm (4.41 x 4.29 x 5.24 inch)
  • Weight (Camera): approx. 420 g (14.82 oz)

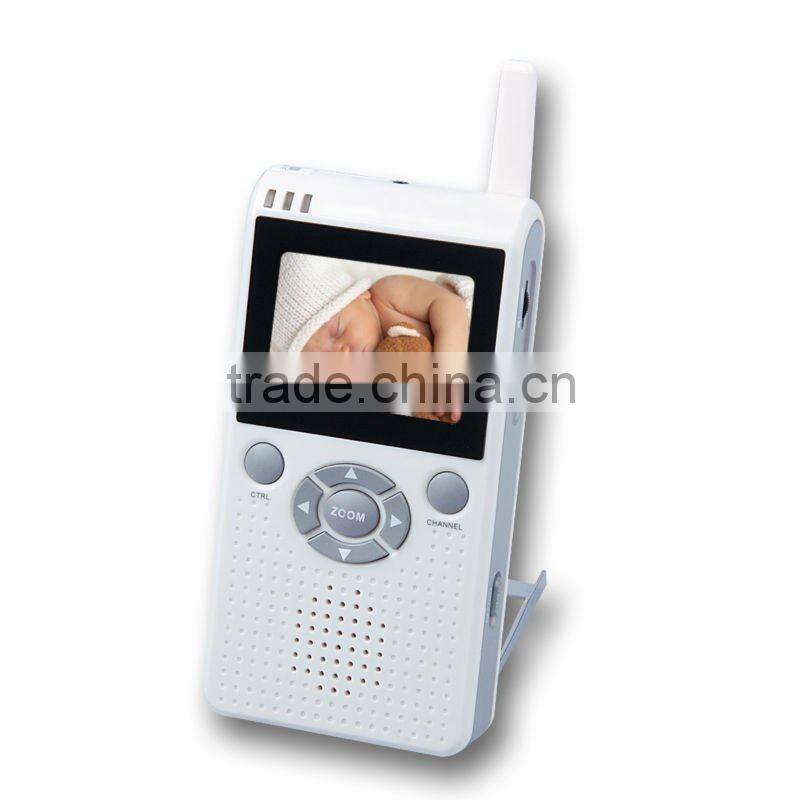

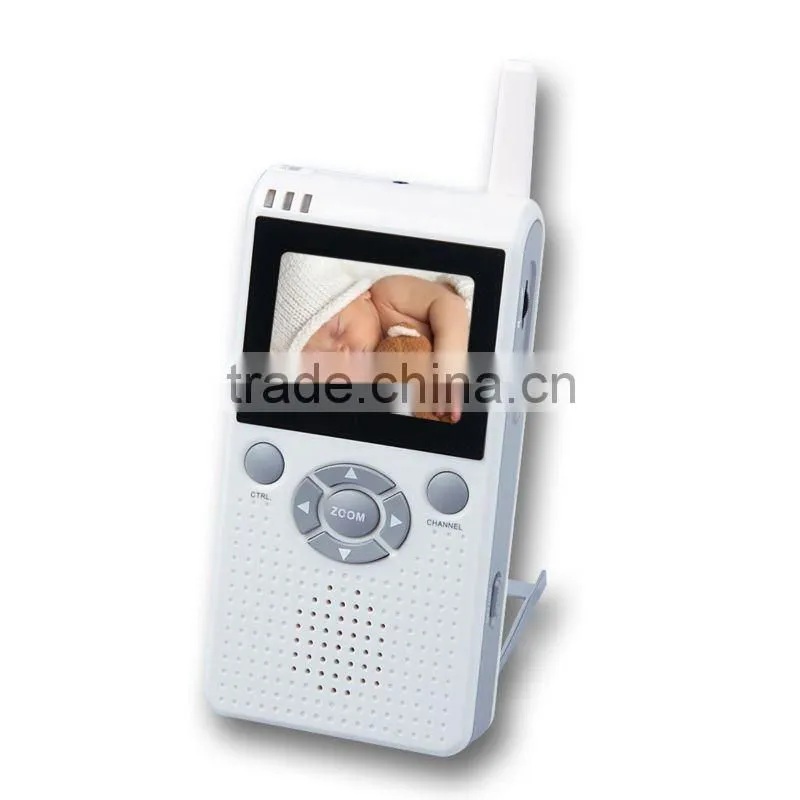

Receiver

  • LCD Screen: 2.36 inch (6 cm) TFT LCD
  • Effective Pixels (R.G.B): 480 x 234
  • Receiving Sensitivity: <-80 dBm
  • Consumption Current: 200 mA
  • Battery Working Time: 3 hours
  • Power Supply: 5 V DC by AC Adapter (100 ~ 240 V for EU / UK / AU / US)
  • Dimension (Receiver): approx. 68 (L) x 149 (W) x 26 (D) mm (2.68 x 5.87 x 1.02 inch)
  • Weight (Receiver): approx. 135 g (4.76 oz)



One Set Included

  • 1 x 2.4 GHz Wireless PTZ Camera
  • 1 x 2.4 GHz Wireless Receiver
  • 1 x Adapter for Camera (100 ~ 240 V for EU / UK / AU / US)
  • 1 x Adapter for Receiver (100 ~ 240 V for EU / UK / AU / US)
  • 1 x Antenna
  • 1 x AV Cable
  • 1 x Earphone
  • Optional Additional Camera with Adapter (supports up to 4 cameras)
  • 1 x Instruction Manual
  • Color Retailed Box Package2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor2.4" TFT LCD 2.4 GHz Wireless Pan Tilt PTZ Camera Baby Monitor
