7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor

7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor thumbnail-1
7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
BB-104
LCD Size:
Other, 7'' TFT
Contact Supplier Request Quote Chat Now
Rise Enterprise Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BB-104
LCD Size Other, 7'' TFT

Specifications

7" Digital Baby Monitor Video Camera

Brief Description



This Digital baby monitor setallows you to watch your baby with a remote receiver. Unlike with traditional analogue systems, this Digital baby monitor set can dynamically and automatically select best frequency for video and audio transmission. This means you can see good quality video and audio without interference including WiFi. The wireless signal can be kept privatefrom other wireless device to ensure security.



The receiver has Extra Large 7 inch (17.8 cm) and Clear TFT LCD Display with 25 fps frame rate. It can support up to 4 cameras for one receiver and you can switch 4 channels within 2.4 GHz. The camera has dual power supply (Battery and AC power) for convenient monitoring.



The camera has LEDs with night vision function so that you can monitor your baby in any time even in complete darkness. Moreover, it has 2-way intercom function with Built-in microphone and speaker in both Camera and Receiver for audio and video monitoring. It also has Voice Control (VOX) function and connection to TV with AV cable.



Features

  • Extra Large 7 inch (17.8 cm) and Clear TFT LCD Display with 320 x 240 Resolutions

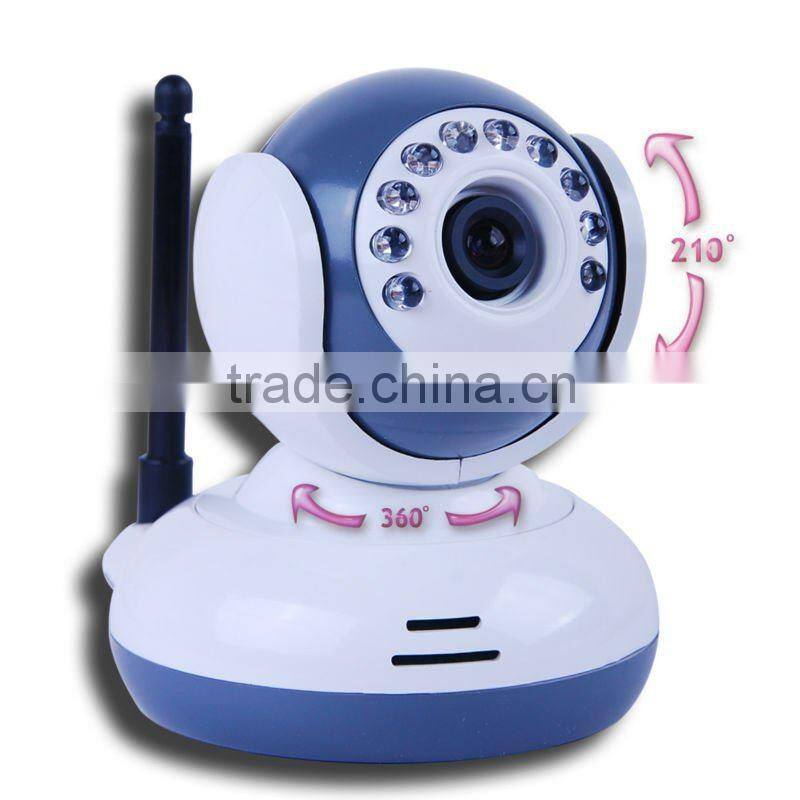

  • Lens can be manually move horizontally (360 °) and Vertically (210 °)
  • Frame rate: 25 fps (frames per second)
  • Digital Pairing between Camera and Receiver
  • Interference Free including WiFi (Clear Video and Audio Transmission)
  • 4 Channels within 2.4 GHz, support up to 4 cameras for one receiver
  • Automatic RF Channel Scan
  • 2 way intercom: Built-in microphone and speaker in both Camera and Receiver for audio and video monitoring
  • Infrared Night Vision
  • High Sensitivity Microphone
  • Voice Control (VOX) Function
  • Connection to TV for monitoring with AV cable
  • Adjustable brightness in LCD of receiver
  • Power Strength Indicator
  • Signal Strength Indicator
  • Horizontal and Vertical Mode to flip the Video Horizontally or Vertically
  • Contrast and Saturation Level Selection
  • Dual power supply in Camera (AC power and 3 AAA Batteries)
  • Effective Distance Range up to 250m (820 feet) without block
  • Optional Additional Camera with Adapter (supports up to 4 cameras)



Specifications



General Specifications



  • Transmission Frequency: 2400 ~ 2480 MHz
  • Transmission Power: 17 dBm
  • Operating Frequency: 2450 MHz
  • Un obstruction Effective Range: 250m (820 feet)
  • Modulation Mode: FHSS
  • Operation Temperature: 0 ~ 60 °C (32 ~ 140 °F)
  • Storage Temperature: 25 °C (77 °F)
  • Operating Humidity: 20 ~ 80 % R.H.

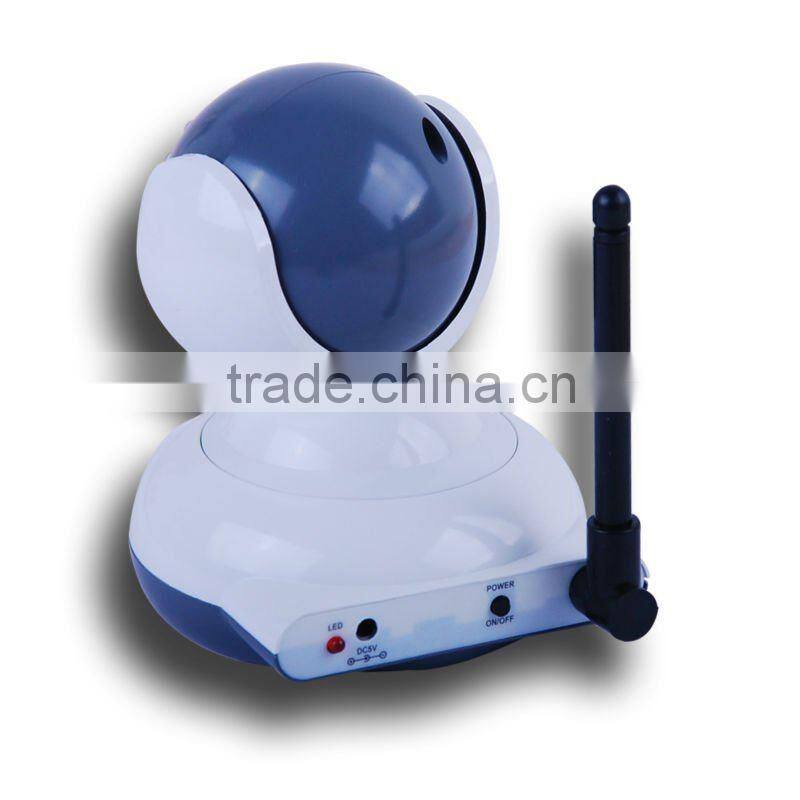

Camera

  • Imaging Sensor Type: 1/3 CMOS
  • Picture Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
  • Horizontal Resolution: 360 Lines
  • Frame: 25 fps (frame per second)
  • Horizontal Rotating Angle: 360 °
  • Vertical Rotating Angle: 210 °
  • View Angle: 60 °
  • Minimum Illumination: 1.5 Lux
  • Band Width: 4 MHz
  • Night Vision Range: 3 ~ 5 m (9.84 ~ 16.4 feet)
  • Battery Working Time: 8 hours
  • Motion Detection Distance: > 5 m
  • Sound Control Sensitivity: > 60 dBA
  • Consumption Current: 150 mA + 15 mA
  • Power Supply: 5 V DC by AC Adapter (100 ~ 240 V for EU / UK / AU / US)
  • Battery Supply: 3 x 1.5 V AAA Alkaline Batteries (not included)
  • Dimension (Camera): approx. 100 (L) x 86 (W) x 86 (W) mm (3.94 x 3.39 x 3.39 inch)
  • Weight (Camera) : approx. 141 g (4.97 oz)

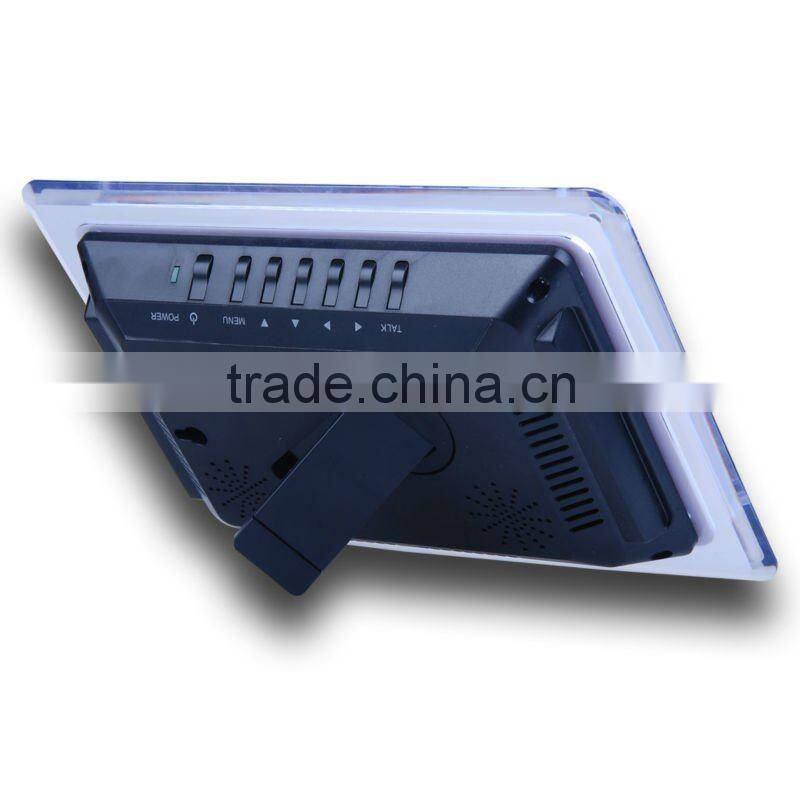

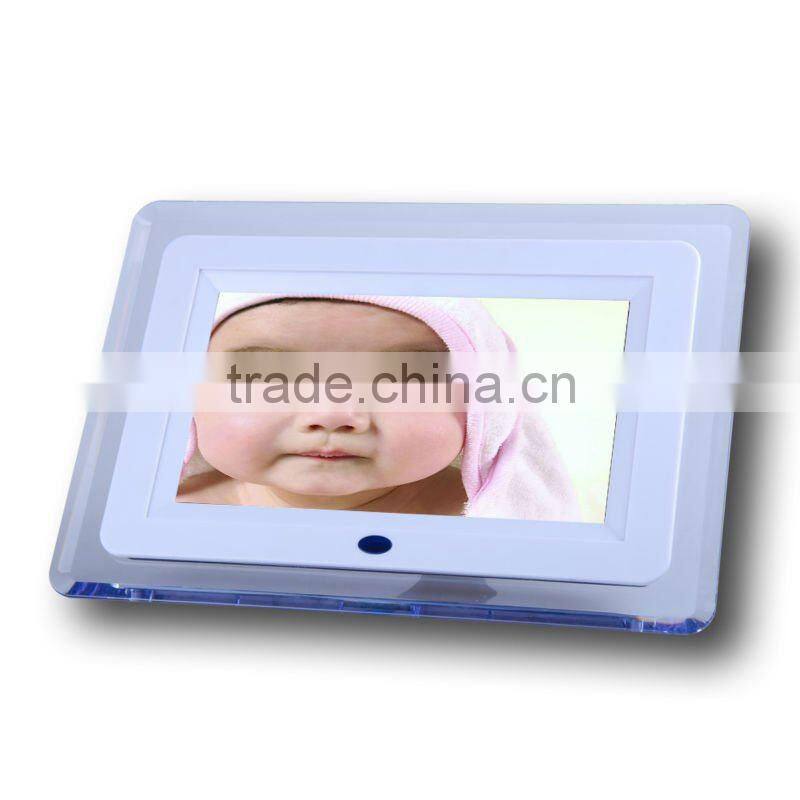

Receiver

  • LCD Screen: 7 inch (17.8 cm) TFT LCD
  • Effective Pixels: 320 x 240
  • Receiving Sensitivity: -85 dBm
  • Video System: PAL / NTSC (Switchable in Setup Menu)
  • Color Configuration: R.G.B.
  • Consumption Current: 150 mA + 15 mA
  • Power Supply: 12 V DC by AC Adapter (100 ~ 240 V for EU / UK / AU / US)
  • Dimension (Receiver): approx. 230 (L) x 160 (W) x 33 (D) mm (9.06 x 6.29 x 1.29 inch)
  • Weight (Receiver): approx. 453 g (15.98 oz)



One Set Included

  • 1 x Wireless Camera
  • 1 x 7" LCD Wireless Receiver
  • 1 x 5 V Adapter for Camera (100 ~ 240 V for EU / UK / AU / US)
  • 1 x 12 V Adapter for Receiver (100 ~ 240 V for EU / UK / AU / US)
  • 1 x AV Cable
  • 1 x Camera Lens Cover
  • Optional Additional Camera with Adapter  (supports up to 4 cameras)
  • 1 x Instruction Manual
  • Standard Factory Package7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor7" TFT LCD Wireless Video 2-way Talk Camera Baby Monitor
