Specifications
WPC profile extrusion machine1.to make wood plastic profile
2.different sharp profile
3. conical twin screw extruder
4. CE

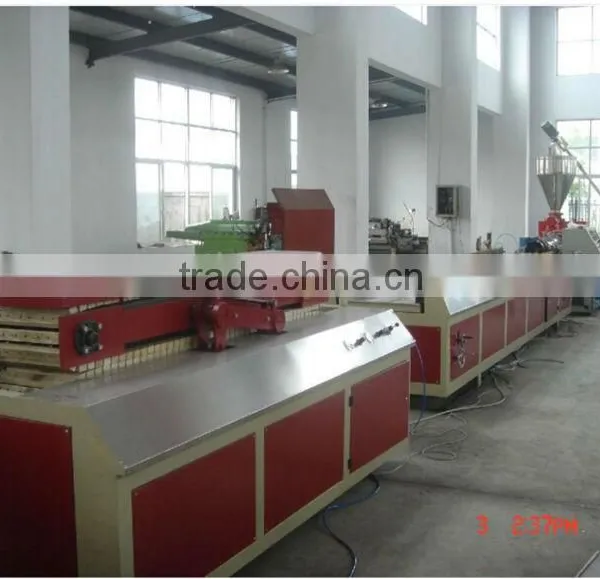

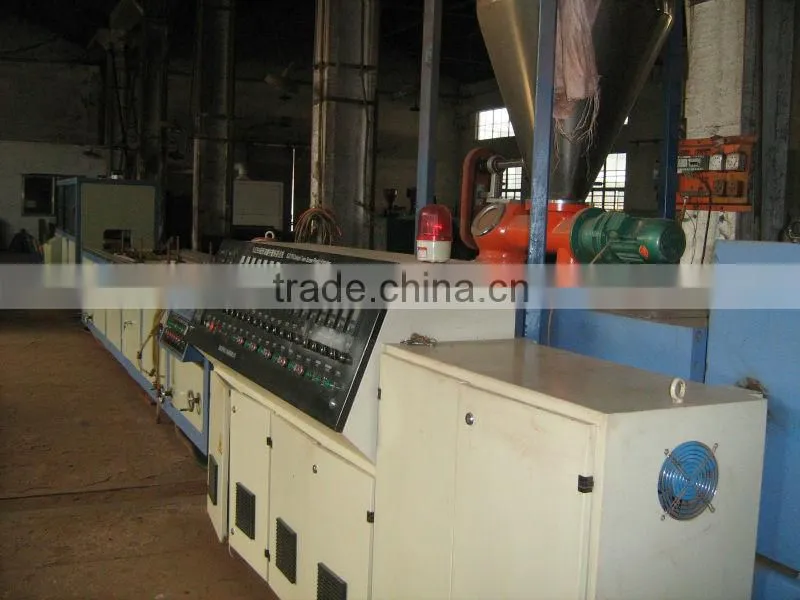

WPC profile extrusion machine
(A) It is used to produce WPC profiles, like decking, floor, cornice, plank, windows, door frame and etc.
(B) Feature:

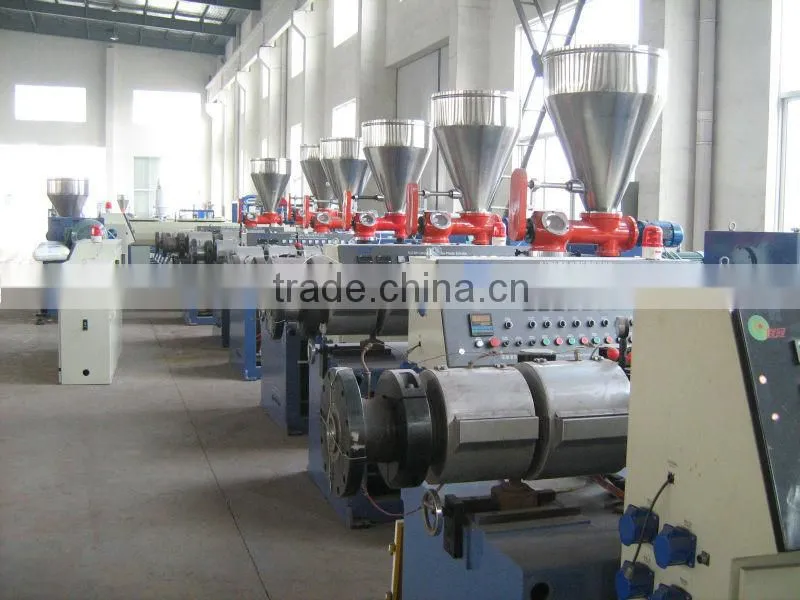

1. Conical twin-screw extruder, suitable for processing WPC raw materials.
2. Changing the moulds to produce many kinds of different profiles.
3. Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.
(C)Technical data:
Extruder |
SJZ51/132 |
SJZ55/110 |
SJZ65/132 |
SJZ80/156 |
SJZ92/188 |
Main Motor Power |
18.5kw |
30kw |
37kw |
55kw |
110Kw |
Production capacity |
80-100kg/h |
100-180kg/h |
150-200kg/h |
200-300kg/h |
550-700kg/h |
FORM A:
No. |
Production name |
Quantity |
1 |
ZJF300plastic powder loader |
1set |
2 |
SJSZ51/105 twin-screw conical extruder |
1set |
3 |
180 PVC moulds |
1pcs |
4 |

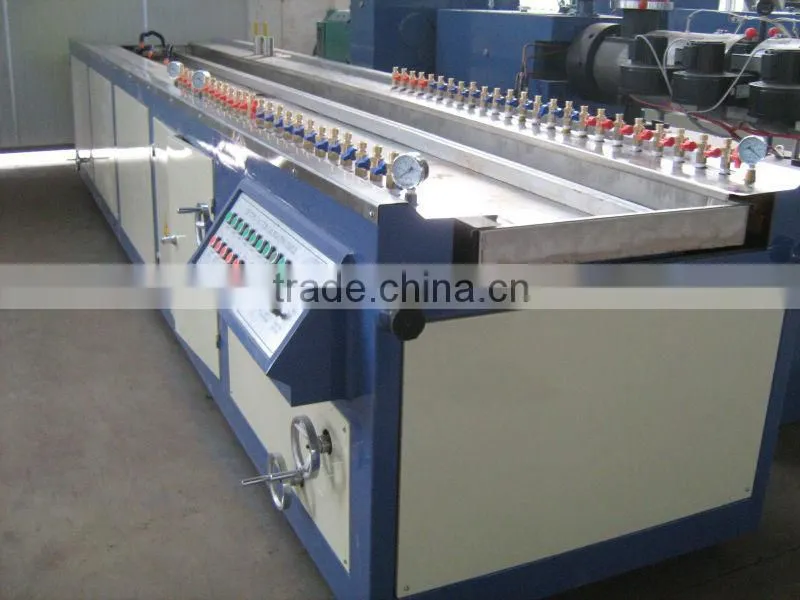

YF180 vacuum calibration table |
1set |
5 |
Haul-off |
1set |
6 |
Cutter |
1set |
7 |
Stacker |
1set |
FORM B:
Model |
SJSZ51 |
Screw Diameter(mm) |
51/105 |
Screw rotating direction |
outwards |
Screw rotationg speed(r/min) |
1-38 |
Screw effective working length(mm) |
1150 |
Main motor power(kw) |
22 |
Barrel heating power(kw) |
12 |
Production capacity(kg/h) |
150 |
FORM C:
Production line model |
CX-180 |
Calibration table length(mm) |
4000 |
Max.Profile width(mm) |
180 |
Hauling speed(m/min) |
0-10 |
Total power(kw) |
95 |
