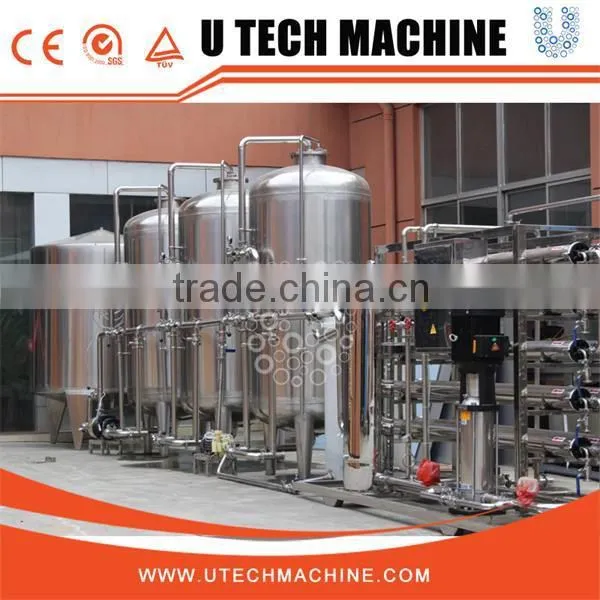

Raw water purify plant/Water treatment system

Raw water purify plant/Water treatment system

Introduction

Reverse Osmosis systemwater trwatment machine prepararion of pure water, drinking water purification

Reverse  Osmosis system(RO System)

The application of the reverse osmosis technology industry
The power industry :boiler water supply
The electronics industry :the semiconductor industry ultrapure water,cleaning water IC
Food industry: prescription water,water production;tea,fruit juice,vegetable juice and plants the thermosensitive material extranction and enrichment
Beverage industry: Formulation of water,production water,wash water
The pharmsceutical industry : process water,reagent water,wash water,water for injection,the drug concentration separation
The chemical industry:the production of water,waste water treatment,the concentration of valuable material separation
Drinking water project:preparation of pure water,drinking water purification
Petrochemicals:oilfield injection of water,wastewater depth petrochemical processing
Desalination:islands,coastal water areas,ships,such sa oil field water production for domestic use

Standard configurations:

1)import volumes of composite membranes

 2) SUS304 stainless steel casing

3)SUS304stainless steel muli-pump

4)5μm security filters

5)water,concentrated water flow meter

6)access to water pressure instruction

7)integration cleaning system

General features:

1) RO system automatic control for flush and backwash.

2) C.I.P. chemical cleaning system for RO membrane available

3) Chemical dosing port for unti-scaling and PH adjustment for optional choice.

4) SS304 pretreatment  and pipes /fittings

5) LG PLC control system with water level control

6) Auto pump protection for electric shortage, pressure protection, water level protection.

Water application:

1) Suitable water source: Tap water, surface well water

2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)

3) Water recovery ratio: 70%

4) RO membrane salt rejection ratio: 99.6%

5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)

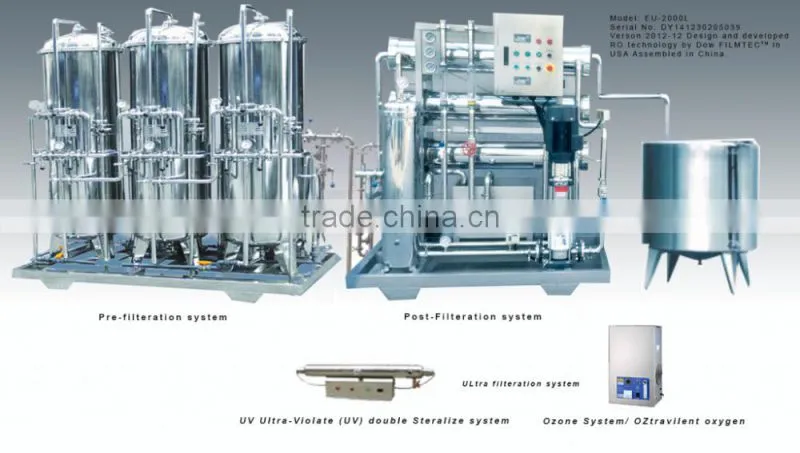

Main plant

Reverse Osomis

Silica sand filter ,active carbon filter,sodium-ion exchanger,precision filter

Hollow fiber filter

Other plant

Raw water purify plant/Water treatment system

Raw water purify plant/Water treatment system

The package adopts export special wooden case; it is suitable for long distance transport, damp proofing,

and rust prevention, shockproof and so on. And also it suitable for sea, land transport and entirety lifting.

Raw water purify plant/Water treatment system

Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.

      Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.

Raw water purify plant/Water treatment system

A.Well-trained & experienced staff are to answer all your inquiries in English and Chinese.

B..24 hours for engineer's response (all services part 5days in customer hand by Intl' courier).

C. 2 Years guarantee

D.Your business relationship with us will be confidential to any third party.

E..Good after-sales service offered, please get back to us if you got any questions.

Project design

We can design any project of the completer line to meet the demands of our clients, considering both factory layout and the produce line  .

Raw water purify plant/Water treatment system

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service .

Q2:What’s your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years

Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?

A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?

A5:After we deal down all the things , we will offer you a spare parts list for your reference.
