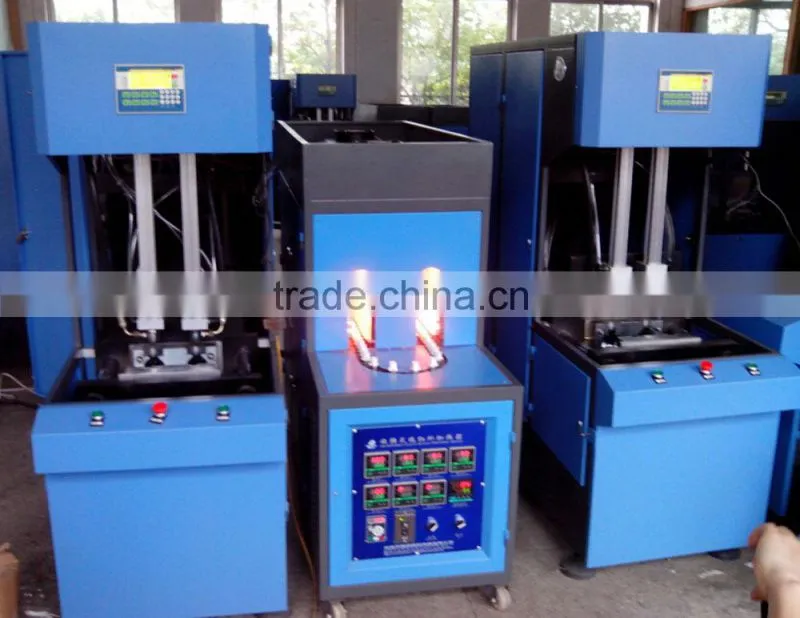

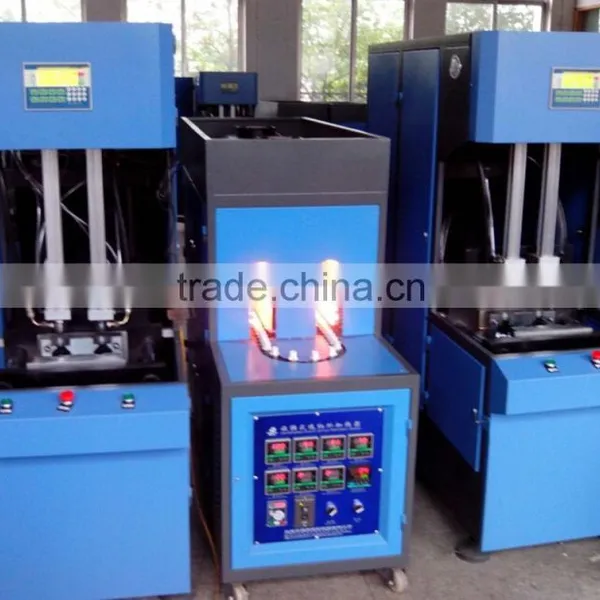

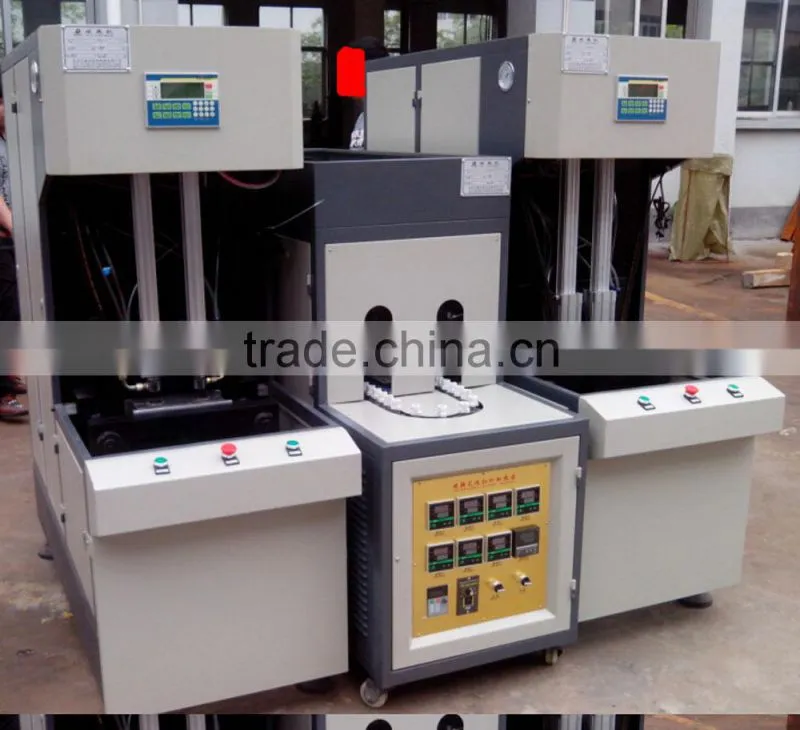

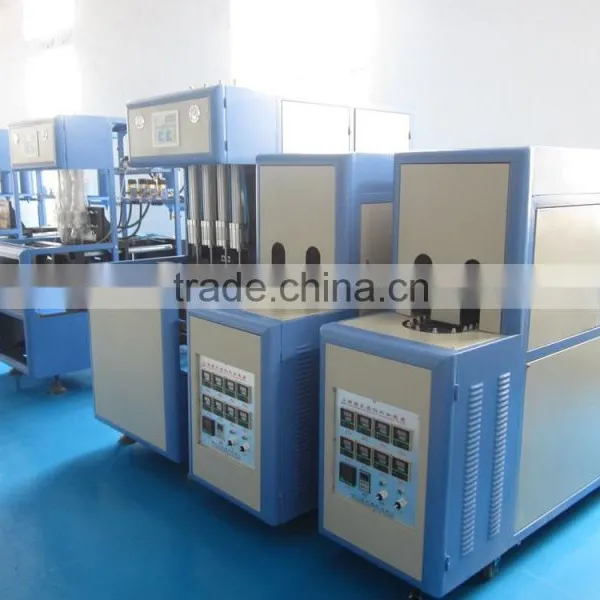

Semi-automatic PET bottle manufacturing machine / making machine
Introduction
Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
Function of PET bottle making equipment / manufacturing machine
1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers .
Technical parameters of PET bottle making equipment / manufacturing machine
General information |
MG-SA4 |
Clamping force |
300KN |
Clamping stroke |
350mm |
Max. stretching stroke |
380mm |
Number of cavities |
4-cavity |
Theoretical output |
2000bph |
Max. mold thickness |
190mm |
Electrical system | |
Voltage standard |
380v/3PH/50Hz or special order |
Total power (full loaded) |
18KW |
Container |
|
Max. container volume |
2.5L |
Neck diameter range |
15-45mm |
Max. container diameter |
110mm |
Max. container height |
370mm |
Auxiliary system | |
High air compressor |
>1.2m3/3.0Mpax2 (0.5L) |
Dimension & weight (LxWxH) | |
Blow molding machine |
1.9x0.88x1.8m |
Pre-heater |
1.9x0.66x1.6m |
Net weight |
1.3T |
Flow chart of PET bottle making equipment / manufacturing machine
Semi-automatic PET bottle manufacturing machine / making machine
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
Any questions about our machine and company,please be free to contact with me at any time.Also,we welcome you to visit our factoy by yourself!!
