Specifications
Semi-automatic Stretch Blow Moulding Machine For PET bottle1.Type:Semi Automatic
2.Capacity:1000-2000BPH
3.Suitable bottle
Semi-automatic Stretch Blow Moulding Machine For PET bottle
Characterics:
1. The design of equipment is logical, easily operation.
2. The automatic level is very high, the wage is very little.
3. Using famous imported hydraulic, electrical, sealing parts, the trouble is low.
4. No matter what the product’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.
Technical parameter
machine (blower+ oven) |
Model type |
Tech data |
Product Spec |
Max. product volume(L/cav) |
2 |
Max. preform neck size(mm) |
100 |
|
Max. product diameter(mm) |
180 |
|
Max. product height (mm) |
300 |
|
Cavities |
2 |
|
Blow molding part |
Die force (KN) |
100 |
Die stroke (mm) |
270 |
|
Max. mould size(mm) |
390*345 |
|
Mould thickness |
Adjustable |
|
Mould spacing(mm) |
|
|
Max. pulling stroke(mm) |
400 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
200 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
Blow air pressure consumption (1tr/min) |
300 |
|
Output(pcs/h) |
1000-2000 |
|
Machine size(LxWxH)(m) |
1.46*0.58*1.8 |
|
Machine weight(KG) |
650 |
|
Oven |
Temperature grade(rate) |
8 |
Heating time(S) |
90-200 |
|
Voltage(V) |
220 or as your request |
|
Frequency(HZ) |
50/60 |
|
Total power(KW) |
16 |

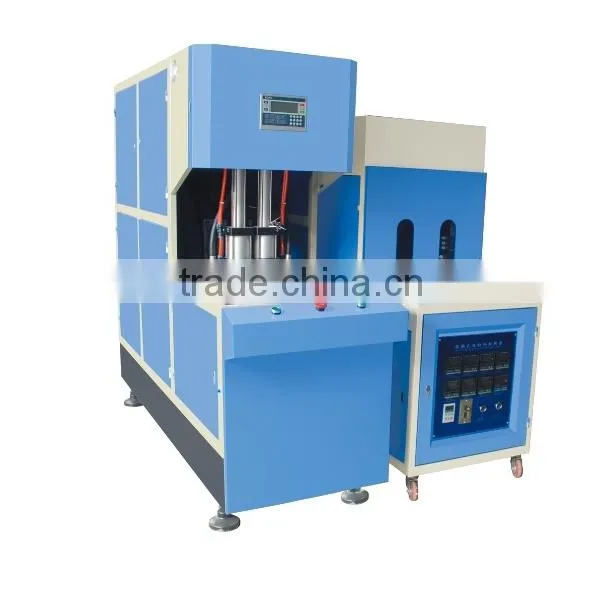

Machine picture

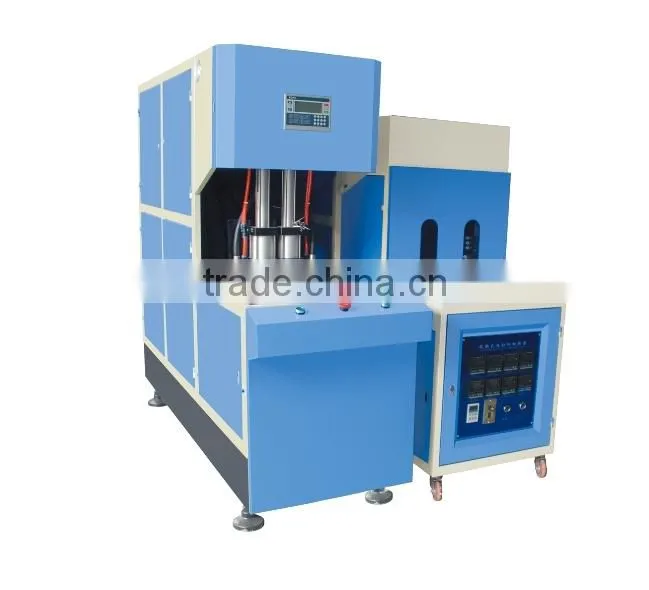

Semi-automatic Stretch Blow Moulding Machine For PET bottle
Semi-automatic Stretch Blow Moulding Machine For PET bottle
Why choose U TECH MACHINE?
1.Stable high quality of machines(Customer feedback & C.E, ISO Certificates & Alibaab Supplier Assessment)
2.Competitive price
3.Fast,effective and efficient service
4.Quality-packaging
5.2-years-warranty
Semi-automatic Stretch Blow Moulding Machine For PET bottle
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
Certification
U TECH is your best choice! We have 10 years' experience.
