Specifications
small volume centrifugation1.1 year warranty
2.wholesale price, fast delivery
3.microcomputer;digital display
4. CE&ISO
high speed centrifuge

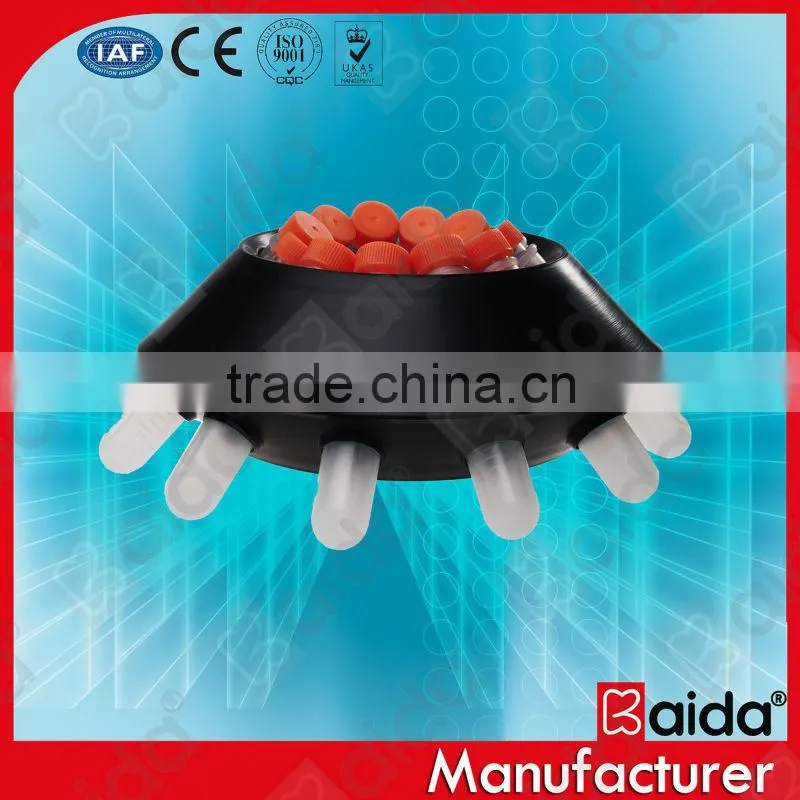

TG16G high speed medical table top centrifuge
- microcomputer with touching panel and digital display, operating data can be saved automatically, RCF value can be set directly for working, easy to use
- Brushless motor without powder pollution, quick in speed down. Super high speed bearing from europe, running smoothly and maintenance free
- Multistage damping system, the freon-free compressor from Europe, low noise and slight vibration, green
- Steel body, stainless steel centrifugal chamber, imports of key components with high quality, durable and easy to clean
- Has function of verspeed, door interlock, unbalanced protection. The rotor can be disinfected at high temperature and high pressure to ensure safety.
- Proprietary air flow guide design, small temperature-rise of centrifuge chamber, can effectively protect the sample
- skype: lucky.wendy90
website:
digital display centrifuge technical parameter
Model |
TG16G |
Max Speed |
16600r/min |
Max RCF |
19200×g |
Max Capacity |
300ml |
Speed Accuracy |
±50r/min |
Time Range |
0-99min |
Power Supply |
AC 220V 50Hz 15A |
Noise |
≤65dB |
Dimension |
400×350×340(mm) |
Net Weight |
20kg |
digital display centrifuge rotor
Model |
No. |
Capacity (ml) |
Max Speed (r/min) |
Max RCF (×g) |
Dimension of tube (mm) |
Angle Rotor |
6 |
12x1.5ml |
16600 |
19200 |
Φ10x42 |
11 |
18x0.5ml |
16600 |
19200 |
Φ8x32 |
|
9 |
24x1.5/2.0ml |
13000 |
16060 |
Φ10x42 |
|
18 |
48x0.5ml |
13000 |
14740 |
Φ8x32 |
|
12 |
10x5ml |
13000 |
11500 |
Φ14x54 |
Remarks: If you have any request of the centrifuge, please feel free to let us know. Your request will always draw our first attention.

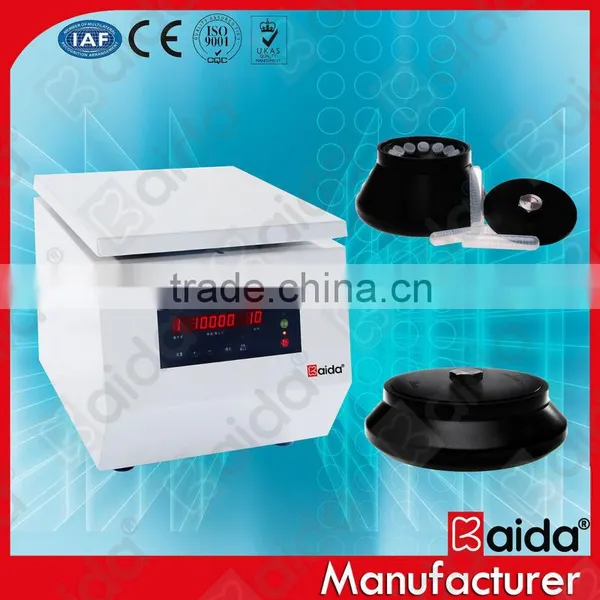

Product photos
non-return valve for centrifuge
axle bearing for centrifuge
In 2008 the program in China for aid to Cuba, Kaida supply 102 sets of DL6M to Cuba blood center.
