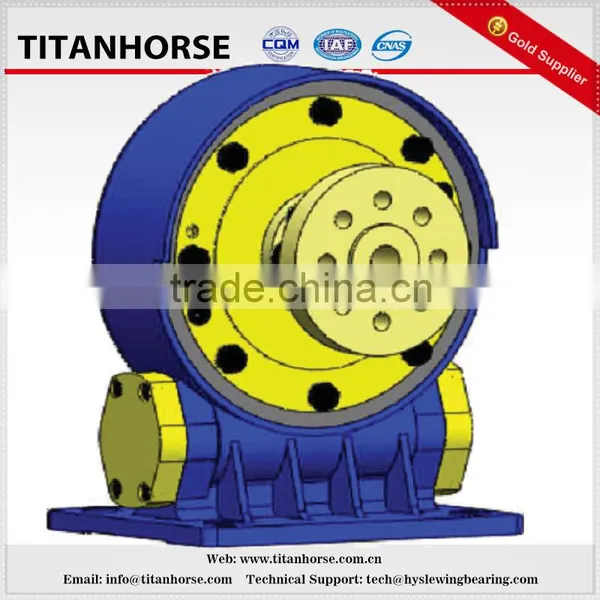

Help Center9 Inch Vertical Slewing Drive for Solar Parabolic Through Power Generation
Related Products
-
Titanhorse 9 Inch Vertical Slewing Drive for Solar Parabolic Through Power GenerationNegotiableMOQ: 1 Set -
Titanhorse 9 Inch Vertical Slewing Drive for 5kw Power Solar Parabolic Through Power GenerationNegotiableMOQ: 1 Set
-
Titanhorse 9 Inch Vertical Slewing Drive for 3kw Power Solar Parabolic Through Power GenerationNegotiableMOQ: 1 Set
-
Titanhorse 14 Inch Slewing Drive for Construction Machinery Mining EquipmentNegotiableMOQ: 1 Set
-
Titanhorse 14 Inch Slewing Drive for Construction Machinery Equipment Mining Equipment and Small Wind TurbinesNegotiableMOQ: 1 Set
Enclosed slewing drives are the most popular model of Titanhorse’ slewing drives and can help power movement in machinery such as wind turbines, military equipment, digger derricks, solar trackers, medical equipment, forestry, waste management and industrial positioners. The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing, such that they have total protection from the elements. The Enclosed Drive is also advantageous if you’re mounting inside so as not to see the parts in motion, or to avoid injuring workers working in close proximity.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed comes with Titahorse’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.
Introduction
Slewing drive is consist of slewing bearing,worm shaft,housing,bearing,motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.
Motor for slewing drive
Generally, we use the standed wooden case to shipping slewing drive.
