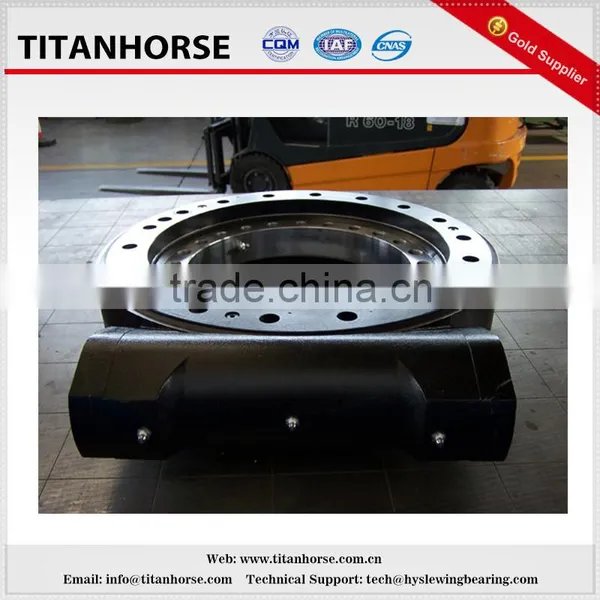

9 Inch Vertical Worm Gear Slew Drive
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tiitanhorse
Bore Size:
384, 2585
Outside Diameter:
616, 3015
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Planetary Gearbox Slew Drive for Slot Solar TrackerUS$ 290 - 2,900MOQ: 1 Piece -
Backlash Slewing Drive for Dual Axis Solar Pole MountingUS$ 278 - 2,988MOQ: 1 Set
-
Single-axis Slewing Drive for Slot Solar TrackerUS$ 100 - 5,000MOQ: 1 Set
-
9 Inch Slew Drive Worm Gear for Solar TrackerNegotiableMOQ: 1 Set
-
Clamps Rotated by Titanhorse 14 Inch Worm Gear Slewing Drive With Hydraulic MotorNegotiableMOQ: 1 Set
Brand Name
Tiitanhorse
Bore Size
384, 2585
Outside Diameter
616, 3015
Model Number
LKVA9, slewing bearing
Feature
Other, Four Point Contact, Four Point Contact
Seals Type
Nitrile Rubber
Place of Origin
Beijing, China
Brief
- Own work-shop for slewing bearing and slewing drive 10000 sq.m
- Production Scale: 5000pcs/Month
- 5S management system to improve the worker efficiency and ensure the products quality
- 8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
- Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
- Slewing drive or slewing bearing's application:
- 1. Industrial usage, to achieve the goal that control and automatic ratation
- 2. Solar energy, its designed to improve the power generation efficiency
- Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
- Certificated by ISO9001, ISO 14001, OHSAS 18001,
Product's Parameters
| Brand | Titanhorse |
| Model | DA7 (7 inch dual axis slewing drive) |
| Rated Output Speed | 0.04rpm |
| Rated Ouput Torque | 722.7 N.m |
| Output Torque | 2600N.m |
| Tilting Moment Torque(Max.) | 13500 N.m |
| Holding Torque | 10400 N.m |
| Static Axial Load | 133 kN |
| Static Radial Load | 53 kN |
| Dynamic Axial Load | 32 kN |
| Dynamic Radial Load | 28 kN |
| Ratio Of Worm Gear | 73:1 |
| Tracking Precision | <0.2° |
| Application | solar tracker,CPV, PV,CSP, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc. |
| Motor | DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc. |
| Life-time | 25-30 years |
| Materials | 42Crmo/ 50Mn |
| Seal | Grease Seal |
| Colour | according to your requirements |
Production flow
Motor
Product Uses
The slewing bearing/ring is a basic mechancial component for engineering machinery, mining machinery, construction machinery and other machineries that require relative rotary motions of two parts.
The slewing bearign /ring severs to transmit movement, bears load, and connect.
Contact US
Please feel free to contact us with your projects!
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2007
Factory Size
Above 100,000 square meters
Total Employees
Above 1000 People
