Home > Industrial Equipment & Components > Power Transmission Parts > Speed Reducer > Clamps Rotated by Titanhorse 14 Inch Worm Gear Slewing Drive With Hydraulic Motor

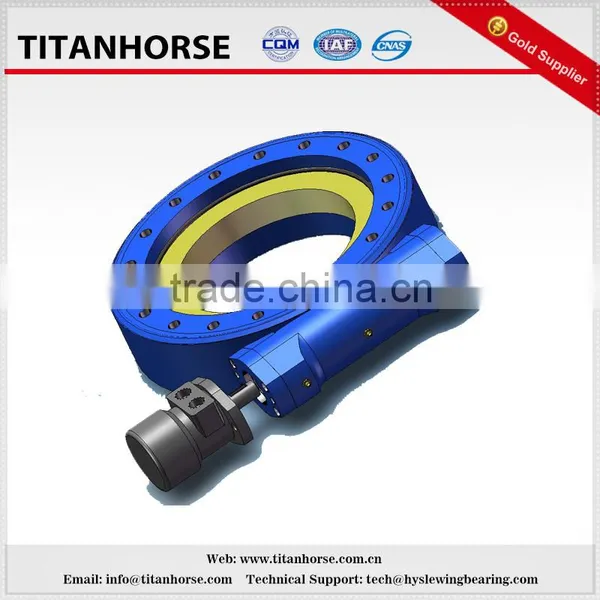

Clamps Rotated by Titanhorse 14 Inch Worm Gear Slewing Drive With Hydraulic Motor
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
6,497N.m
Rated Power:
A14
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Filling Machine Slewing DriveUS$ 280 - 3,560MOQ: 1 Set -
Slew Drive Worm Gear for Solar Tracker SystemNegotiableMOQ: 1 Set
-
5 Inch Slewing Drive For Solar Tracking SystemNegotiableMOQ: 1 Piece
-
Planetary Gearbox Slew Drive With 24V DC MotorUS$ 270 - 2,790MOQ: 1 Set
-
Solar Tracker Dual Axis Slewing DriveUS$ 50 - 200MOQ: 1 Piece
Gearing Arrangement
Worm
Output Torque
6,497N.m
Rated Power
A14
Input Speed
3-5rpm
Output Speed
less than 2.5rpm
Place of Origin
Beijing, China
Model Number
A14
Brand Name
TITANHORSE
Slewing drive
TITANHORSE Slewing Drive:
1. Own ring forging plant, gurantee your orders delivery on time with lower cost.
2. 5S whorkshop management, ISO standard, make sure all the slewing drives exported with high quantity.
We have 3'', 5'', 7'', 9'' even 21'' five sizes dual axis slewing drive, and 3''-25'' nine sizes single axis slewing drive.
Company Information
Production flow
Motor
Product's Parameters
| Brand | Titanhorse |
| Model | A14 (14 inch single axis slewing drive) |
| Rated Output Speed | 0.79rpm |
| Rated Ouput Torque | 7254 N.m |
| Output Torque | |
| Tilting Moment Torque(Max.) | 67.8 kN.m |
| Holding Torque | 48 kN.m |
| Static Axial Load | 920 kN |
| Static Radial Load | |
| Dynamic Axial Load | |
| Dynamic Radial Load | 343 kN |
| Ratio Of Worm Gear | 86:1 |
| Tracking Precision | <0.13° |
| Application | solar tracker, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc. |
| Motor | DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc. |
| Life-time | 25-30 years |
| Materials | 42Crmo/ 50Mn |
| Seal | Grease Seal |
| Colour | according to your requirements |
Contact US
Please feel free to contact us with your projects!
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2007
Factory Size
Above 100,000 square meters
Total Employees
Above 1000 People
