Hot Oil Heating System Thermax Oil Boiler
Thermal oil heaters use oil, gas, wood, coal, biomass and os on as fuel, the heat transfer oils is heated in the boiler furnace first, then the thermal oil will flow in the closed loop pipe to the heated equipment and then return to the thermal oil heater again, in this way, the heated object can reach a high temperature (Max. 320℃) with indirect heating. It is especially suitable for industies which are flames prohibited
Working Principle
Liquid phase heat transfer medium is heated in the boiler, and then flow and circulated to one or multiple heat energy users in a closed loop system. The thermal oil is flow by the force of a pump, there are 2 pumps in the whole system, one working pump and another one is a spare pump, in any case the working pump stoped, the spare pump will start work immediately, so the system wont breakdown.
Bidragon offers standard thermal fluid heaters, custom engineered thermal fluid heaters, complete thermal fluid systems and a full range of parts and support for your process.
Main Features of Thermax Oil Boiler
- 1. High Temperature
This Oil/Gas fired thermal oil heaters can reach 320℃ at low pressure.
2. Easy Operation
User friendly designed control system, easy to operate.
3. Low Investment
Compared with steam boiler and hot water boiler, thermal oil boiler is perfect to give user high temperature in a much safer way. It cost little in maintenance and daily process.
4. PLC Intelligent Control System
The PLC control system of thermal oil heaters is suitable for high temperature and high humidity environment of long-term operation.
Applicable Industry
| *Tank heating | *Platen or Press heating | *Indirect steam generators | *Crude oil heating |
| *Suction heating | *Ovens and fryers | *In line liquid heating | *Calendar roll heating |
| *Reactor vessel heating | *Natural gas heating | *In line gas heating | *Building heaters |
| *Process reboilers | *Jacketed vessel heating | *Heated molds or dies | *Autoclaves |

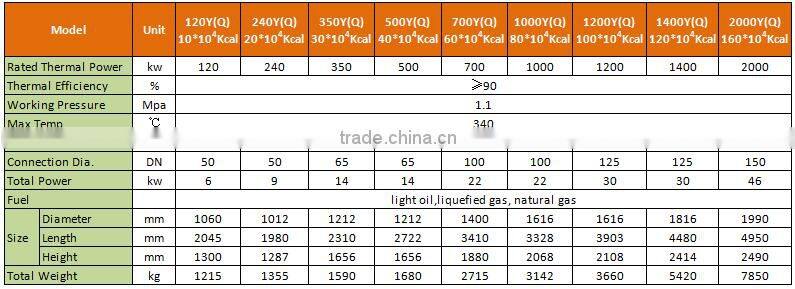

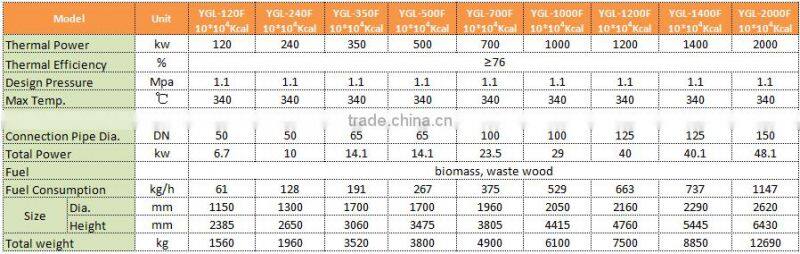

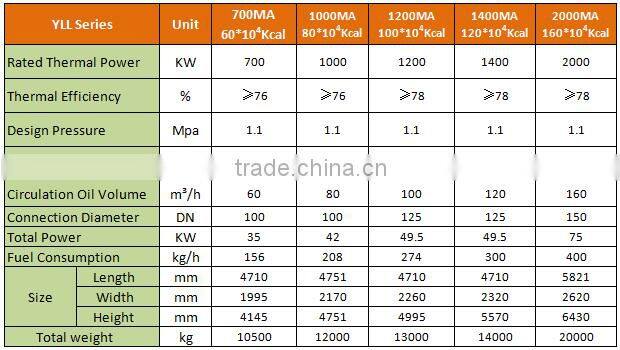

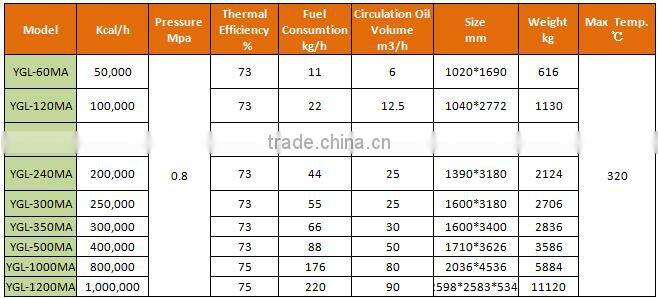

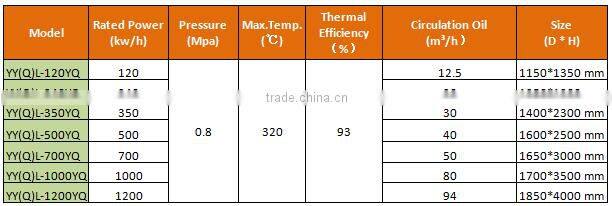

Main Technical Specification
