Specifications
1.Paper and PVC2.Stainless steel
3.PLC and touch screen
4.easy to operate

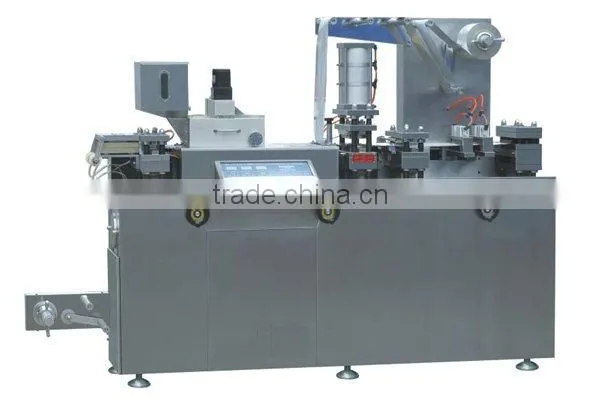

DPP-140A medicine blister packing machine
Applications:
1.Travel scope can be adjusted.Mould is located by located groove so that it's easy to change mould,The machine heats the PVC through conduction and forms it through pressing and frothing.
2.Speed is shifted by stepless transducer.Adopt the interface of human-machine and PLC rogrammable controller.Adopt professional feeder and feed accurately.
3.The equipment of trace pressing,batch number printing and scrap-collecting can be chose.
4.Double stepping motor drive wheel to grip and tow wrapper,synchroning accurately.
5.The heating moulds will automatically separate when the machine stops,which contributes to protect the material between them and extend the machine's life..
Main technical data:
Model |
140A |
|
Blanking frequency(times/min) |
15-50 |
|
Sheet's quantity of one blanking(sheets) |
1-2 |
|
Adjustable scope of feed travel(mm) |
1800-6000 |
|
Appropriate for Capsule |
10-130 |
|
Max Forming area and depth(mm) |
140×110×13 |
|
Capacity of air compressor((m3/min) ) |
≥0.36 |
|
Power supply |
380V 50Hz 635KW |
|
Wrapper specification(mm) |
PVC |
140×(0.2-0.5) |
Aluminum foil |
140×(0.02-0.035) |
|
Overall dimensions(mm) |
2850×530×1450 |
|
Part size(mm) |
|
1450×550×1300 |
|
1400×550×1450 |
|
Weight(Kg) |
|
1000 |
