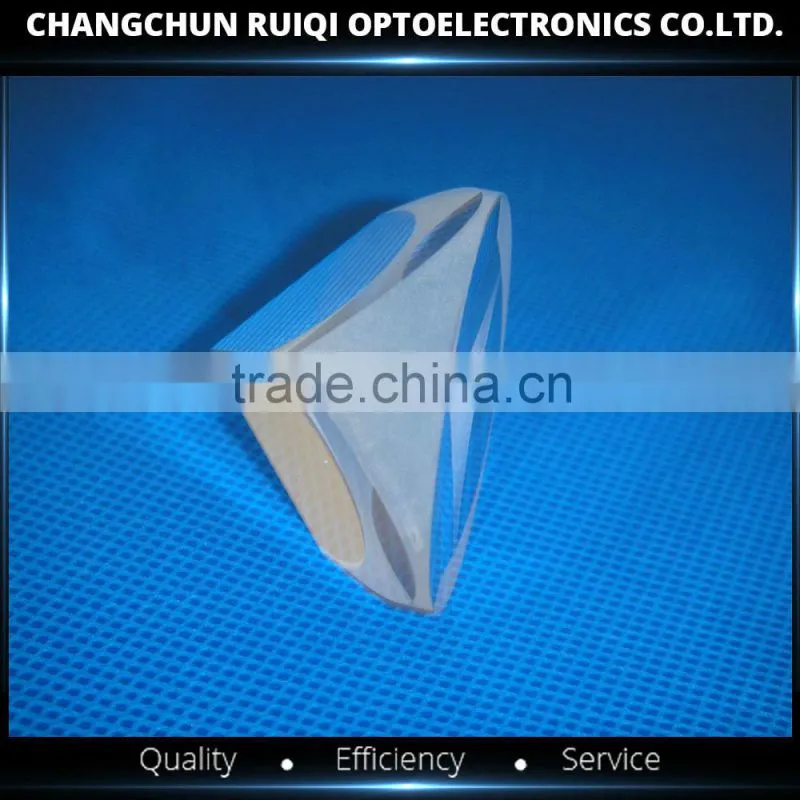

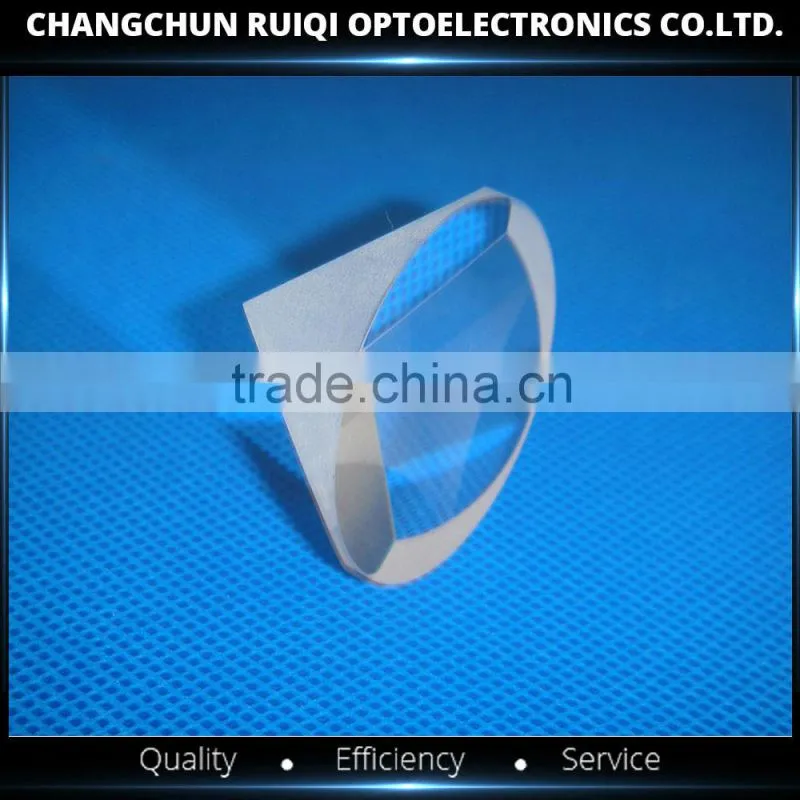

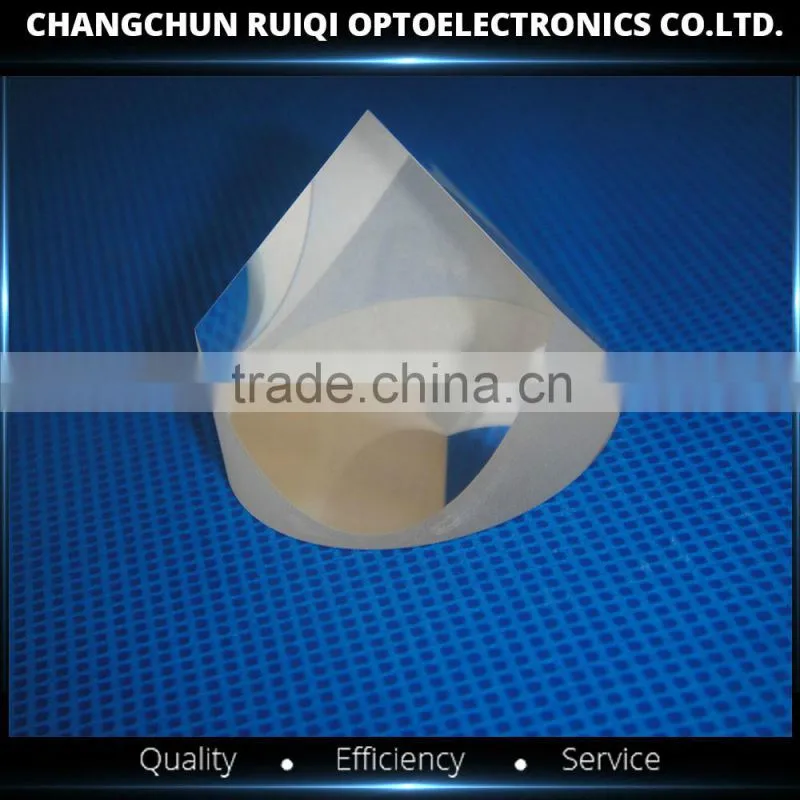

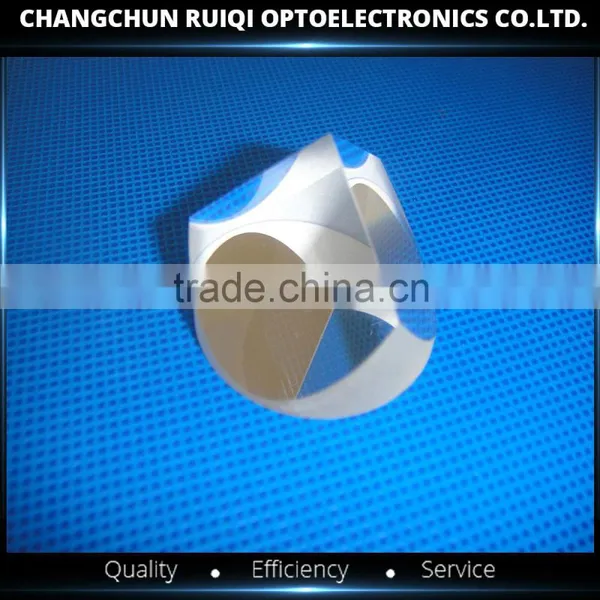

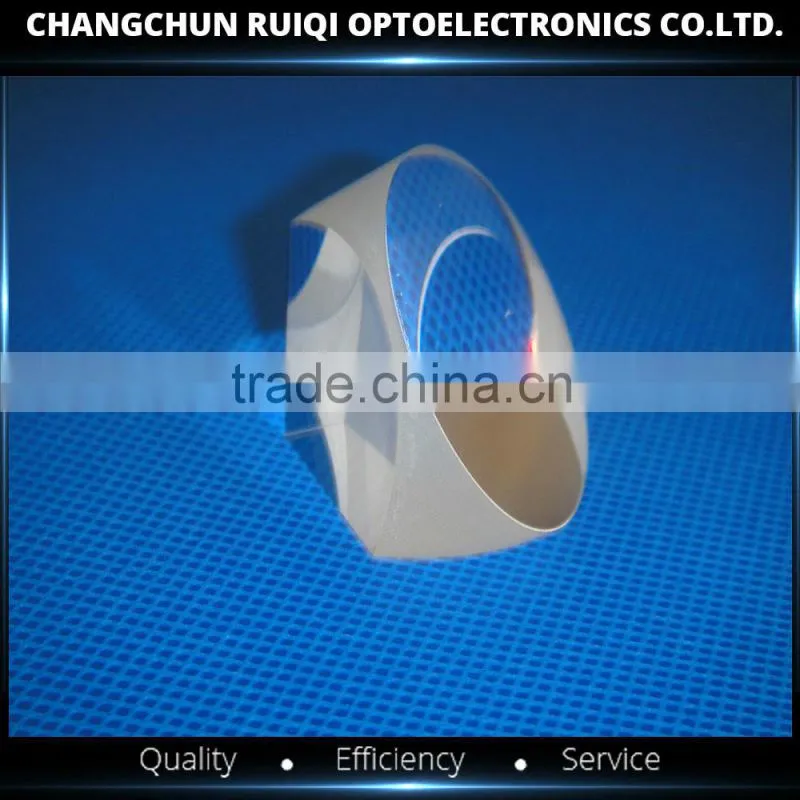

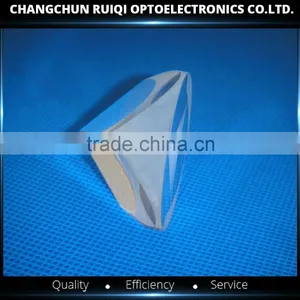

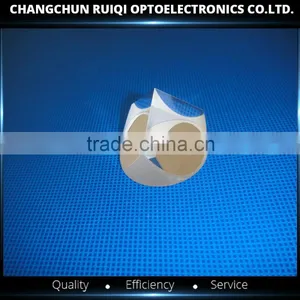

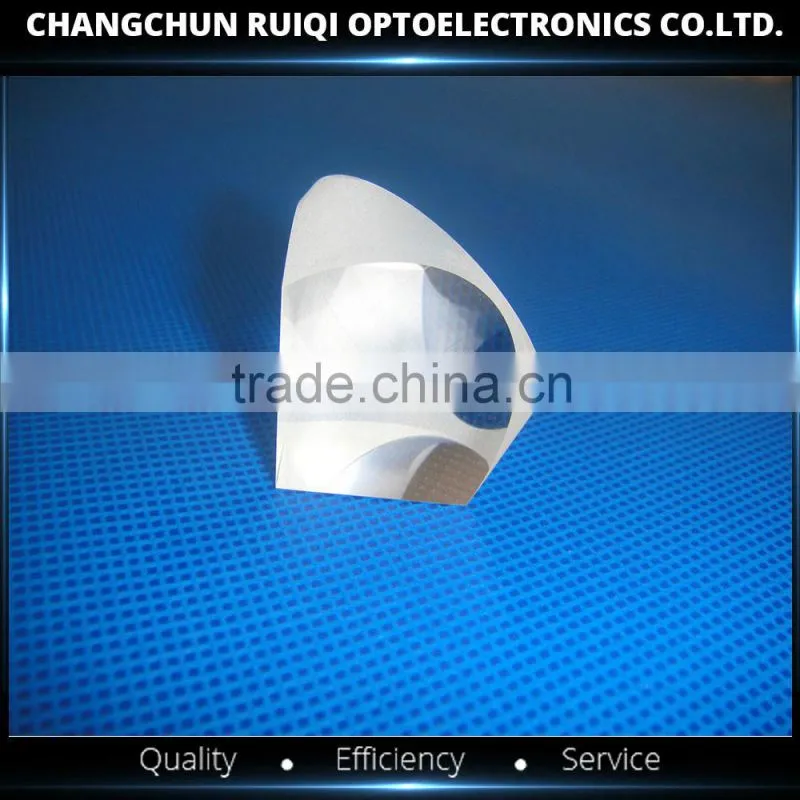

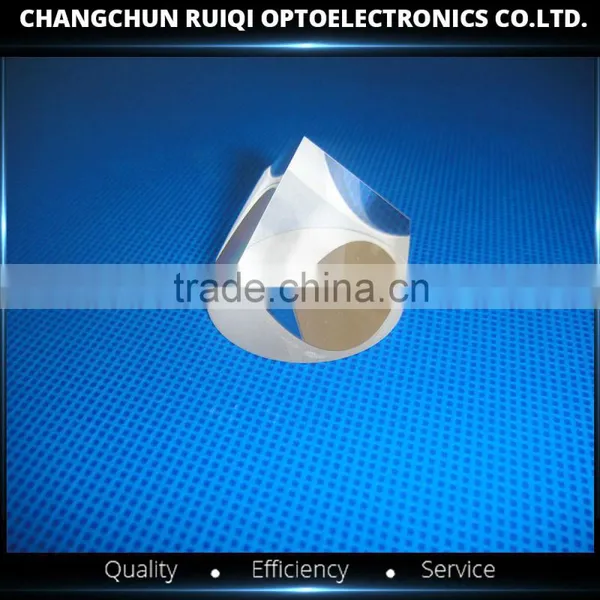

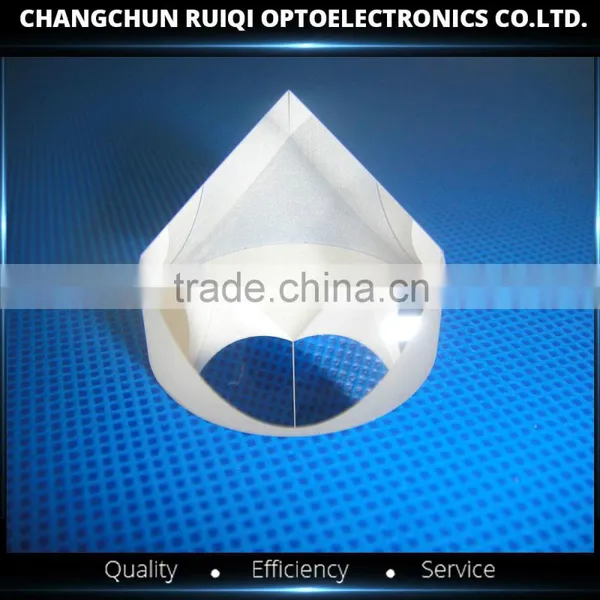

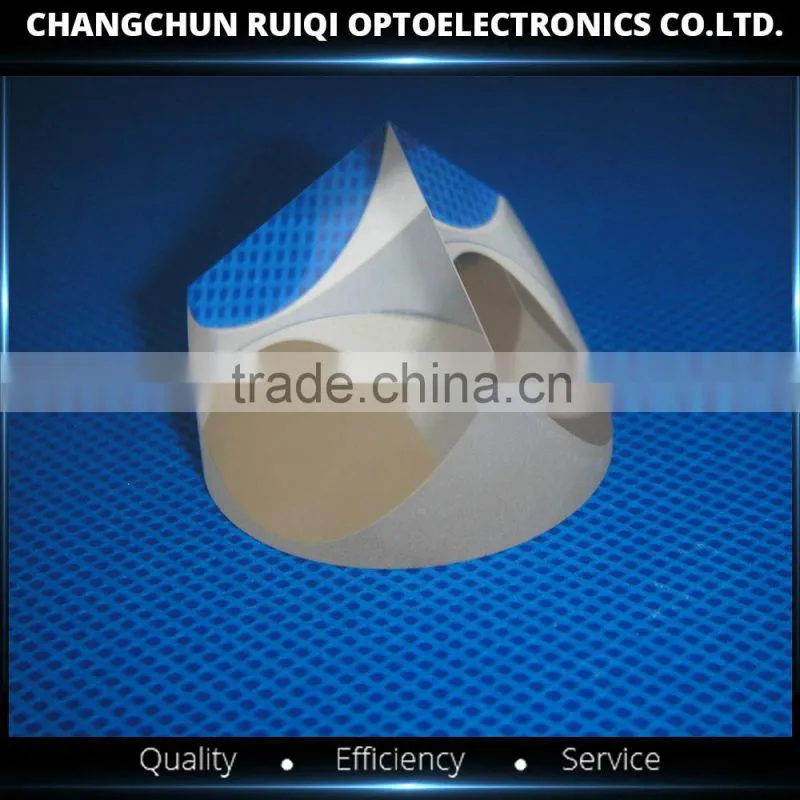

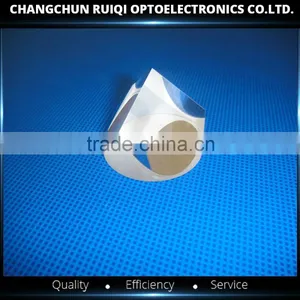

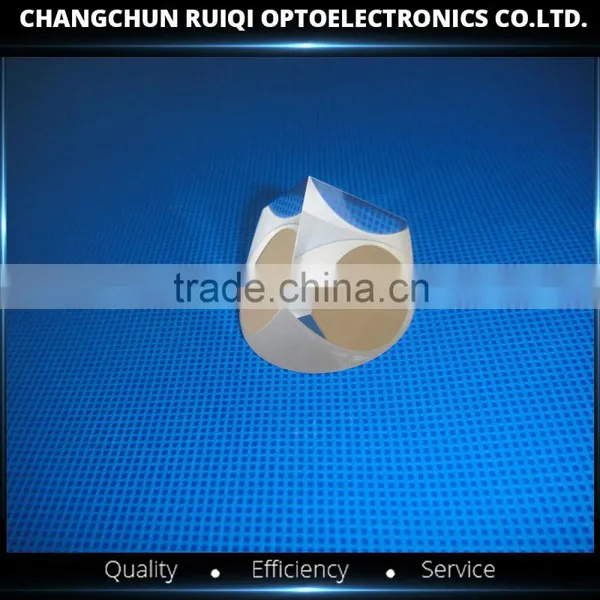

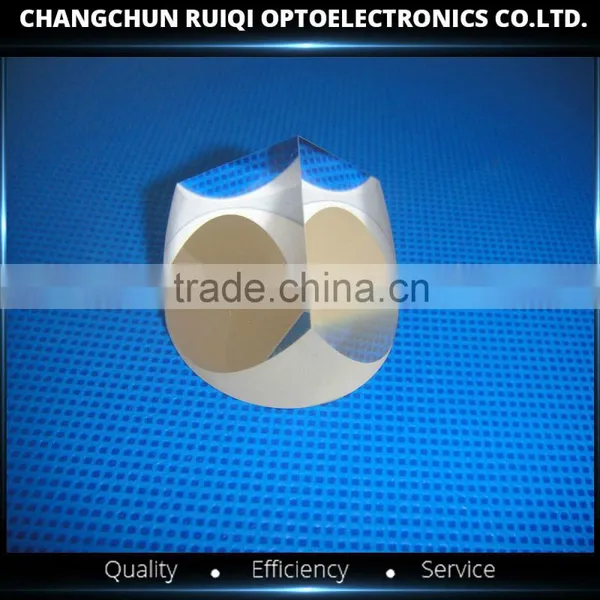

N-BK7 Uncoated Corner Retroreflectors, Corner Cube Retroreflectors Prism
US$ 66.00 - 70.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ-Retroreflector prism
Model Number:
Retroreflector prism
Payment & Shipping
Payment Methods:
Port of Shipment:
changchun shenzhen dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12.7mm 808nm AR Coating 40/20 Surface Quality Polarizing BeamsplittersUS$ 35 - 150MOQ: 5 Pieces -
Right Angled Prism of 90 Degree, Hot Sale Prism Products 10 *10*10US$ 15 - 45MOQ: 10 Pieces
-
60 Degree Optical Glass Right Angle Trianular Prism for SaleUS$ 16 - 45MOQ: 5 Pieces
-
BK7 Optical Glass ,uncoated, Right Angle(90 Degree) PrismUS$ 19 - 45MOQ: 10 Pieces
-
Fused Silica Glass Right Angle Optical Prism for SaleUS$ 18 - 55MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ-Retroreflector prism
Model Number
Retroreflector prism
Material
BK7 Optical Glass, BK7
Surface Quality
60/40
Dimension Tolerance
+/-0.1mm
Angle Tolerance
15 Arcsec
Flatness
1/10Lambda
N-BK7 Uncoated Corner Retroreflectors, Corner Cube Retroreflectors Prism
Corner cube retroreflectors are designed to reflect any ray or beam entering the prism face, regardless of the orientation of the prism, back onto itself. A mirror will only do that at the normal angle of incidence. As a result, corner cube retroreflectors are ideal where precision alignment is difficult or time-consuming. They feature three total internal reflections and will function even at very large angles of incidence.
N-BK7 Corner Cube Retroreflectors are made from precision N-BK7 for use in a variety of visible light applications.
Specifications
| Material | BK7 Optical Glass |
| Diameter | 12.7mm 25.4mm 38.1mm |
| Height | 5mm 10mm 29.2mm |
| Surface Quality | 60/40 |
| Surface Flatness | Lambda/10 |
| Bevel | Protective Bevel |
| Angle Tolerance | 15arc sec |
| Coating | uncoated or silver coating upon request |
| Ray Deviation (°) | 180 |
