12.7mm 808nm AR Coating 40/20 Surface Quality Polarizing Beamsplitters
US$ 35 - 150
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
CCRQ-BSP1
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Right Angled Prism of 90 Degree, Hot Sale Prism Products 10 *10*10US$ 15 - 45MOQ: 10 Pieces -
60 Degree Optical Glass Right Angle Trianular Prism for SaleUS$ 16 - 45MOQ: 5 Pieces
-
BK7 Optical Glass ,uncoated, Right Angle(90 Degree) PrismUS$ 19 - 45MOQ: 10 Pieces
-
Fused Silica Glass Right Angle Optical Prism for SaleUS$ 18 - 55MOQ: 5 Pieces
-
BK7 Glass Hot Sale Right Angle Prism for Horizontal Glasses, Optical Triangular Prisms Right Angle PrismUS$ 19 - 55MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
CCRQ-BSP1
Material
Other, Glass, BK7
Usage
Optical
Structure
Other, prism
Shape
Plano

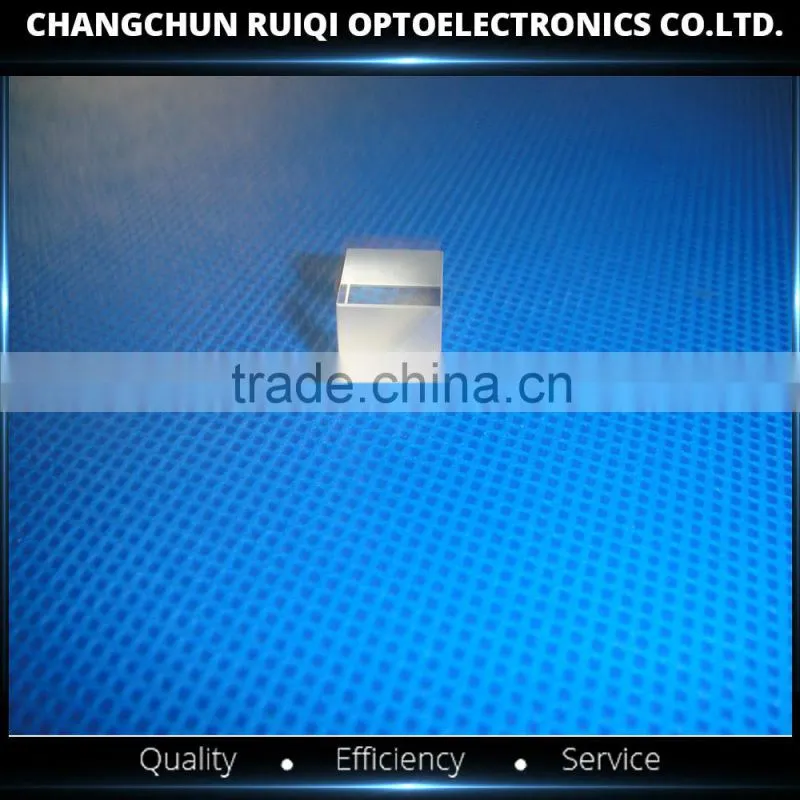

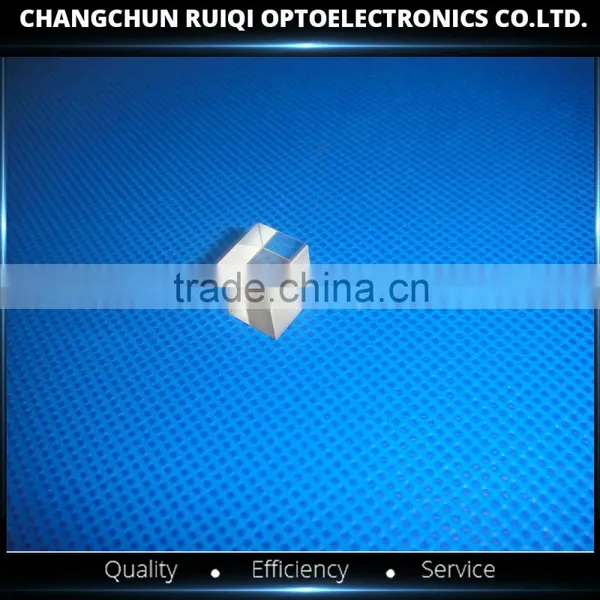

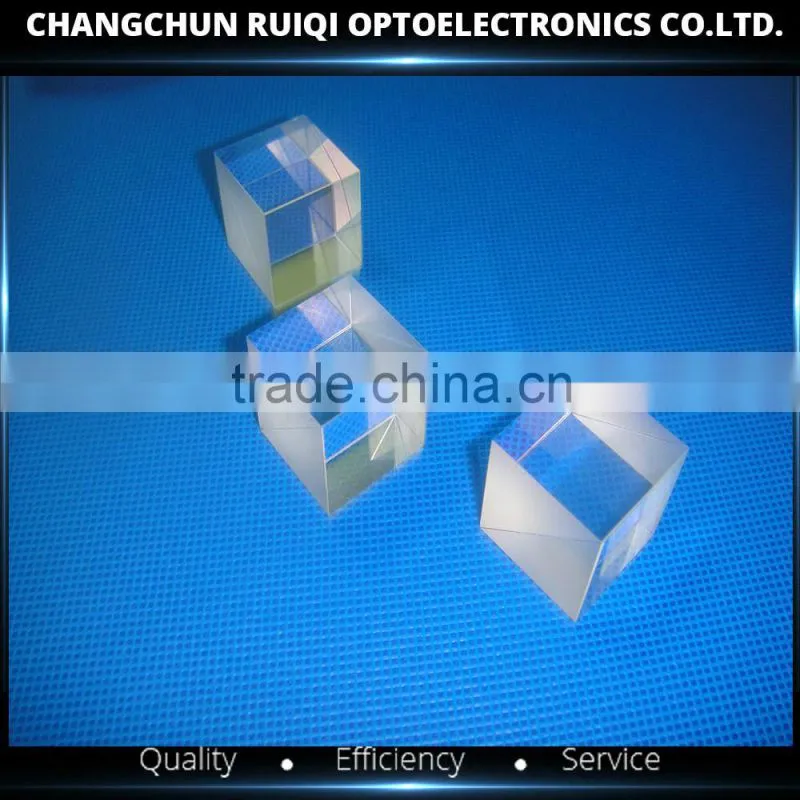

12.7mm 808nm AR coating 40/20 Surface Quality polarizing beamsplitters
Beamsplitters are optical components used to split input light into two separate parts. Beam splitters are common components in laser or illumination systems. Beamsplitters are also ideal for fluorescence applications, optical interferometry, or life science or semiconductor instrumentation. Light can be split by percentage of overall intensity, wavelength, or polarization state.
- Low Polarization Dependance Coating
- Constructed from High Tolerance Right Angle Prisms
- BBAR Coated Faces for Maximum Efficiency
- C-Mounted Visible and NIR Cube Beamsplitters Also Available
.
Technical Specifications:
| Material | BK7 Grade A optical glass |
| Dimension Tolerance | ± 0.2mm |
| Clear Aperture | >90% |
| Flatness | λ/20 at 632.8nm |
| Beam Deviation | High Precision: 0°±3’(T), 90°±5’(R) |
| Surface Quality | 40/20 |
| Transmission | Tp=Ts=46%(+/-4%),|Tp-Ts|<5% |
| Polarization | <6% |
| Coating | Non-polarizing beamsplitter coating on hypotenuse face AR coating on all entrances |
| Damage Threshold | >100mJ/cm 2 , 20ns, 20Hz, @1064nm |
