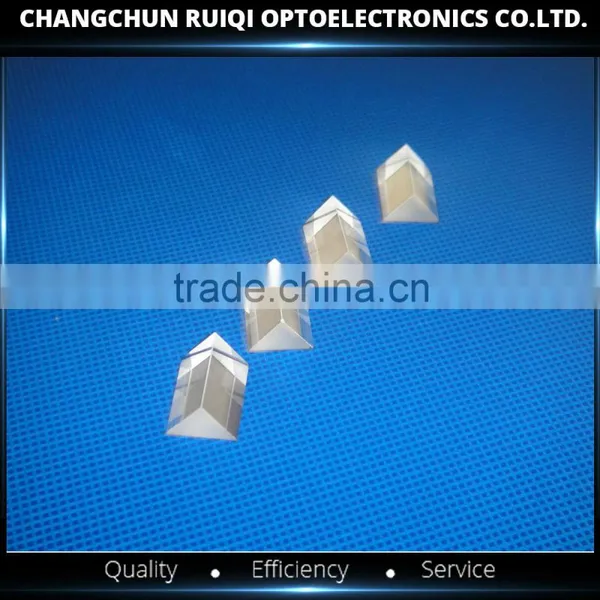

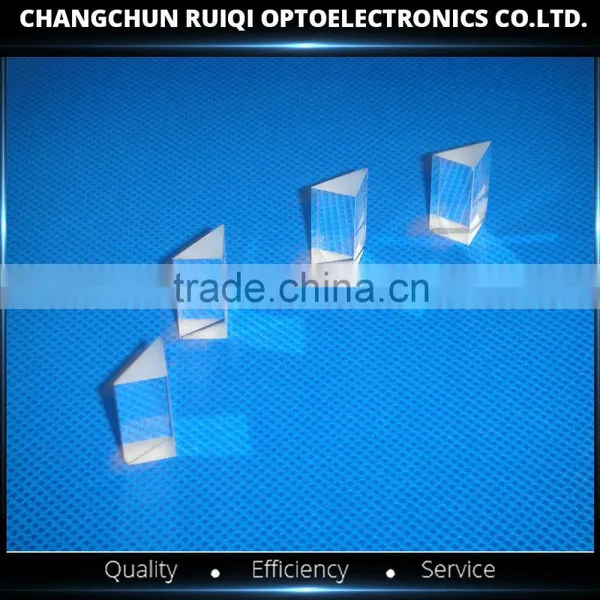

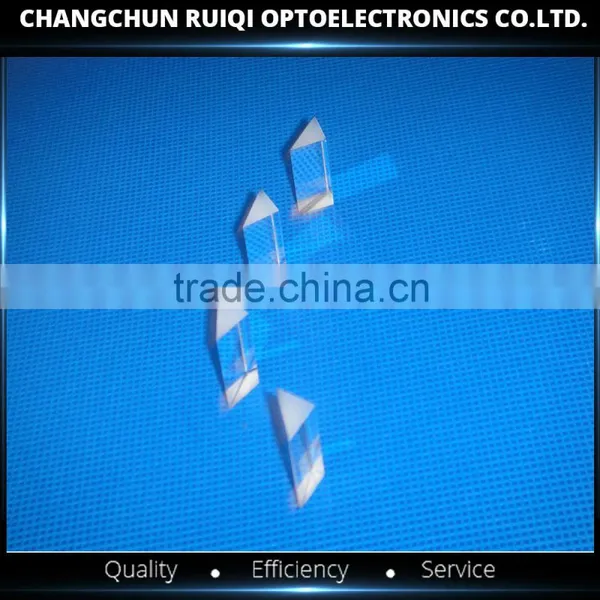

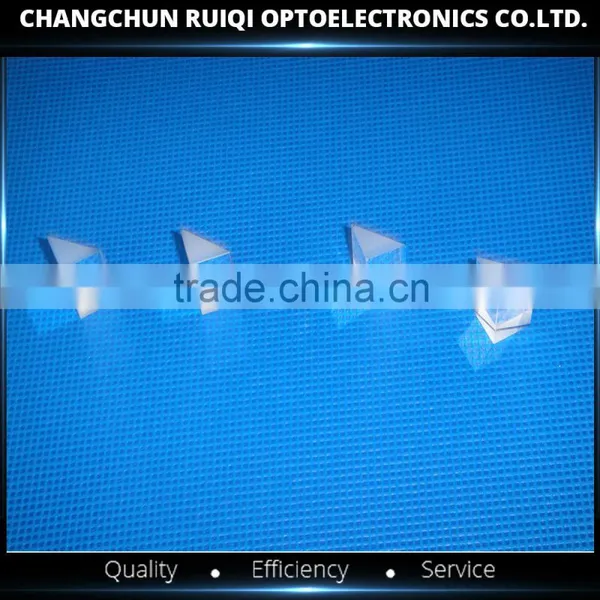

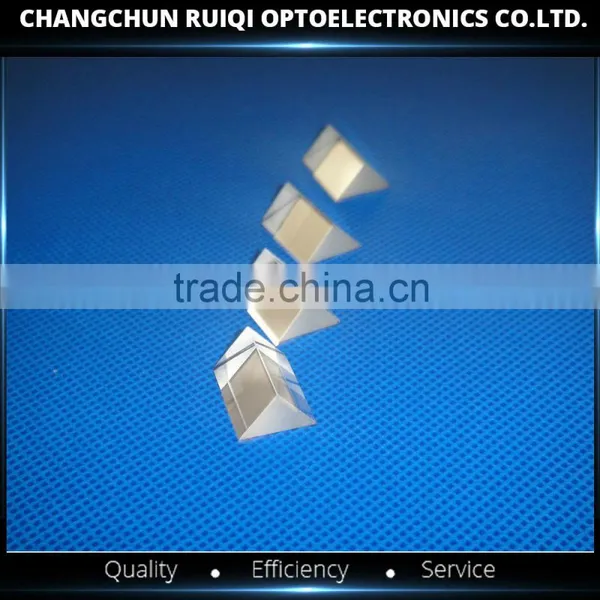

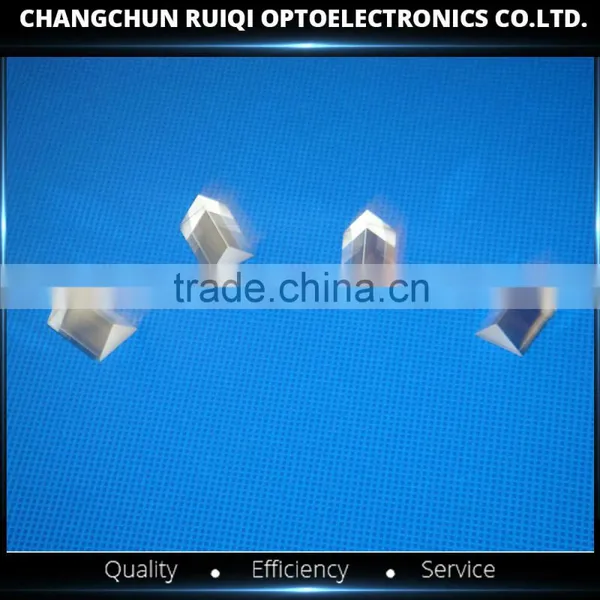

60 Degree Optical Glass Right Angle Trianular Prism for Sale
US$ 16 - 45
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
60 degree right angle prism
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BK7 Optical Glass ,uncoated, Right Angle(90 Degree) PrismUS$ 19 - 45MOQ: 10 Pieces -
Fused Silica Glass Right Angle Optical Prism for SaleUS$ 18 - 55MOQ: 5 Pieces
-
BK7 Glass Hot Sale Right Angle Prism for Horizontal Glasses, Optical Triangular Prisms Right Angle PrismUS$ 19 - 55MOQ: 5 Pieces
-
12x12x100mm Optical Glass Rectangular PrismUS$ 16.5 - 65MOQ: 5 Pieces
-
7mm Right Angle Prism Optical GlassUS$ 15 - 35MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
60 degree right angle prism
Material
Other, Glass, BK7, K9,Fused Quartz,Sapphire
Usage
Optical
Structure
Other, prism
Shape
Plano
60 degree Optical glass right angle trianular prism for sale
A 30-60-90 right triangle (literally pronounced "thirty sixty ninety") is a special type of right triangle where the three angles measure 30 degrees, 60 degrees, and 90 degrees.
Right-angle prism is the most common type of prisms. It is used to re-direct a beam of light at 90 degrees from the the incident direction or used as a 180 beam retro-reflector. They are often coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems.
- High transmission can be achieved, using the hypotenuse face in total internal reflection (TIR), with an antireflection coating on the entrance and exit faces.
- The prism can be used as an internal or external mirror by applying a metallic coating on the hypotenuse.
- We also offer fused silica prisms, and precision grade and ultra-precision grade glass prisms with tighter manufacturing tolerances.
.
Technical Specifications:
| Material | BK7,Fused Silica,Sapphire,CaF2 as customer request |
| Dimension | 5mm 10mm 15mm 20mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Clear Aperture | >90% |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Angle Tolerance | <3' |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
