Plastic geogrid machine, Plastic machine
- 40 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Wire | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Shandong, China |
Brand Name: | Tongjia | Model Number: | JG-TGSG | Certification: | CE, ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Plastic geogrid machine1.Width 4~6m
2.Aperture size 39-65mm
3.High strength15-55kN
Plastic geogrid machine, Plastic machine
Product introduction
The biaxial geogrid is made of macromolecule polymer through extruding, sheet forming, holes punching longitudinal and transveral stretching. This kind of material exhibits great strength at both longitudinal and transversal directions, such structure can also provide an ideal chain system for bearing and spreading the force in the soil, which is suitable for permanent reinforcement of large-area foundation.
Applications

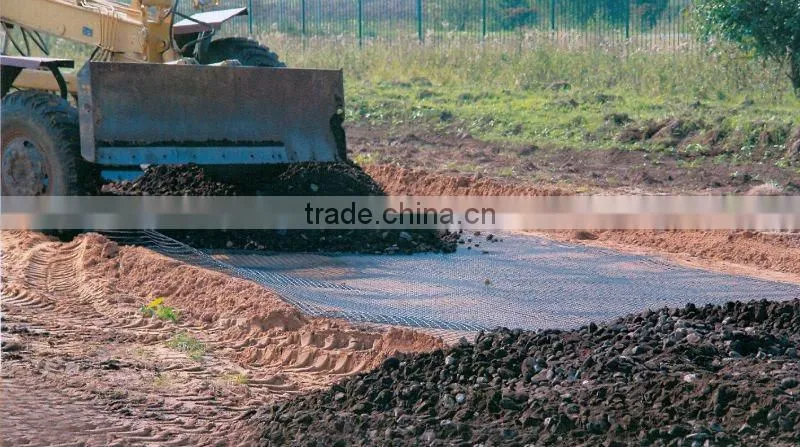

Enhance the slope, and prevent soil erosion.
Reduce cushion thickness, and save cost.

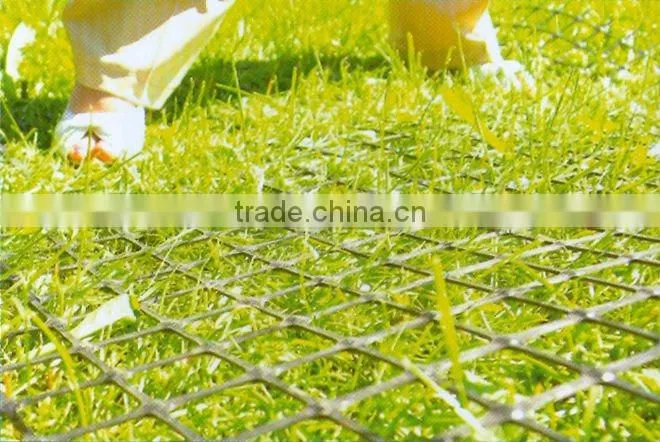

Keep the stability of the slope of grass mat for green environment.
Replace metal net to be used as the top net in the coal mine.
As the best manufacturer of Plastic Machine Plastic Geogrid Machine, we've supplied many lines to different customers. Geogrid production line from our machine as following features:
1. High strength, steady dimension, corrosion resistance, aging resistance

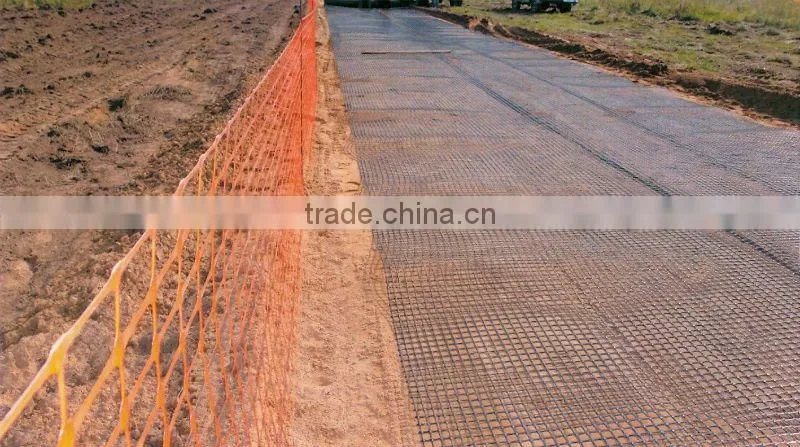

2. Widely used in the projects of highway, railway, airport and coal mine.
Main technical information for different models:
Model | JG-TGSG4000 | JG-TGSG5000 | JG-TGSG6000 | |
Extruder |
| Φ150/33 | Φ160/33 | Φ180/33 |
Screw dia. | mm | Φ150 | Φ160 | Φ180 |
Width of die head | mm | 1450 | 1750 | 2200 |
Punching pressure | KN | 110 | 110 | 160 |
Width of single-direction product | mm | 1200 | 1500 | 2000 |
Spec.of single-direction product | KN/m | 25-150 | ||
Width of double-direction product | mm | 4000 | 5000 | 6000 |
Spec.of double-direction product | KN/m | 15-15,20-20,30-30,40-40,45-45 | ||
Dimensions (L×W×H) (approx) | m | 90×14×4.8 | 100×14×4.8 | 110×15×5 |

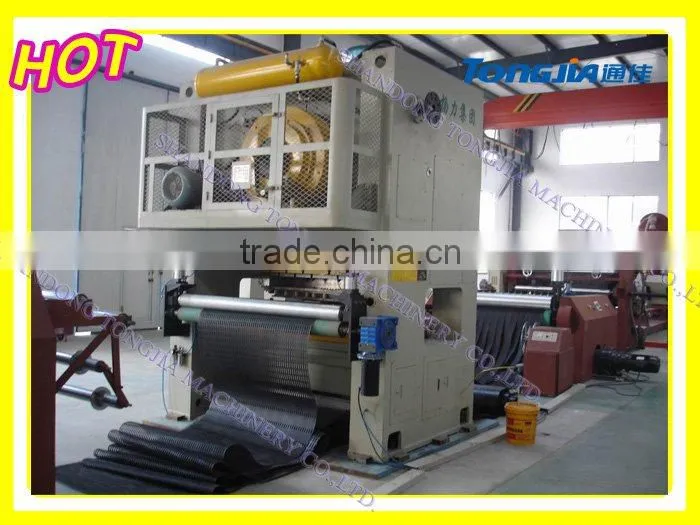

Plastic geogrid machine workshop pictures:

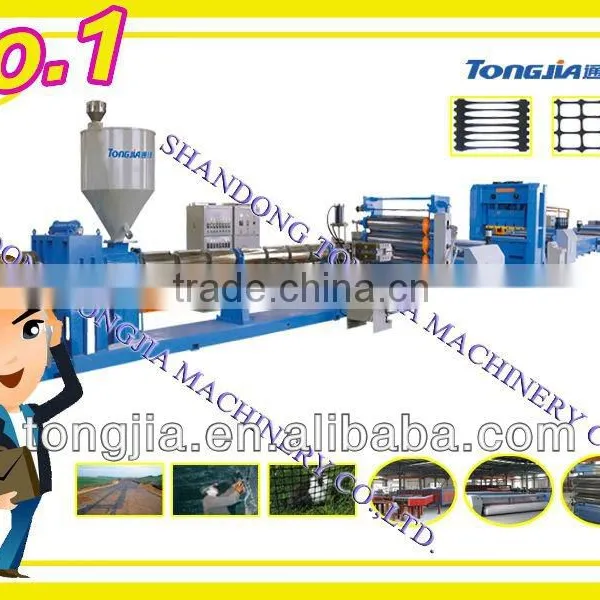

PP/PE Plastic Geogrid Machine
