Help CenterFull Automatic Vacuum Forming Machine (plastic Food Container Extruder Machine )
Related Products
-
EPE Foamed Film Production LineNegotiableMOQ: 1 Set -
PSP Foamed Sheet (KT Plate ) Production Line (fast Food Making Machine )NegotiableMOQ: 1 Set
-
PVC Rigid Pipe Production LineNegotiableMOQ: 1 Set
-
Wood Plastic Profile Production LineNegotiableMOQ: 1 Set
-
XPS Foamed Board Production LineNegotiableMOQ: 1 Set
Specifications
1. High output2. Low price
3. CE and ISO certificates
Establish in 1953 ,now have 3 factories , the vice-chairman of China Plastic Machinery Industry Association. The products exported more than 60 countries .
Our full-automatic vacuum forming machine

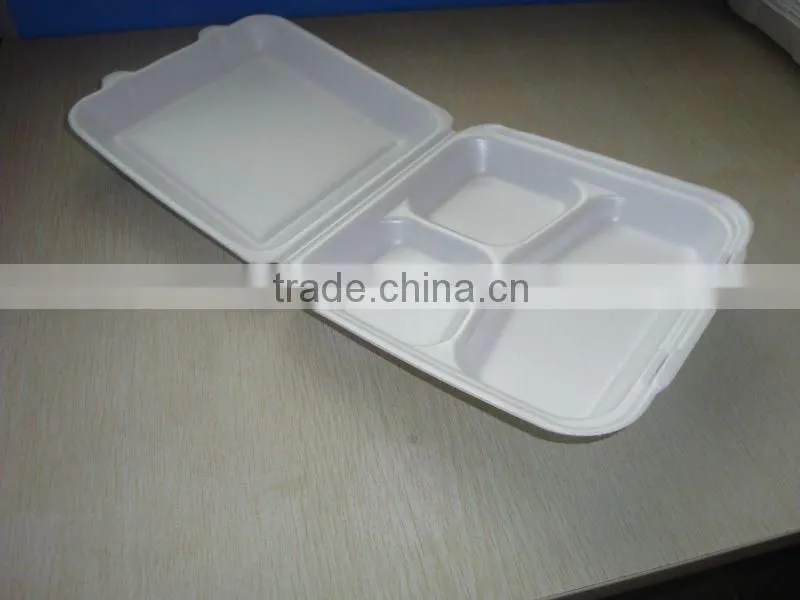

Some fast food box was produced by our machine .
Production Introduction
This machine adopts the international newest plastic sheet forming technology with computer digital forming system and PLC electromechanical integration full automatic control .
Main Technical Information
Model |
JG-ZXC600/900 |
|
Forming width |
mm |
500-700 |
Max. forming area |
mm2 |
600×900 |
Max. forming depth |
mm |
120 |
Heating power (approx) |
KW |
53 |
Production efficiency |
sec./mold |
4-8 |
Air source |
Mpa |
0.8-1 |
Install area of punching mould |
mm2 |
640×1080 |
Effective punching area |
mm2 |
620×900 |
Max. punching depth |
mm |
150 |
Punching force |
T |
15 |
Installed capacity (approx) |
KW |
90 |
Dimensions(L×W×W×H)(approx) |
m |
14×2.2×2.1 |
Total weight (approx) |
T |
8 |
