Help CenterWood Plastic Floor Making Machine
Related Products
1. processing material PVC, PP, PE with plant fibre.
2.CE certificate
3.famous brand accessories

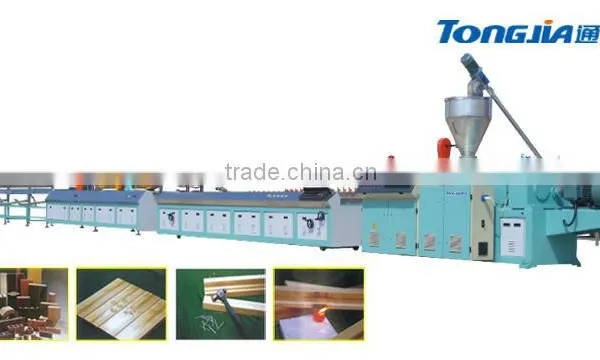

1.JG-MSX series high-efficiency extrusion equipment specially used for wood plastic profile,with advantages of steady capacity and energy conservation
2. Using international advanced CAD design software,38CrMoAIA alloy steel with superior quality and coating metal on surface,special and unique structure of screw and barrel
3.Cooling system of screw core uses constant temperature system controlled by hot oil,so that material can be plastified well;And barrel uses vacuum exhaust type,so that moisture content can volatilize fully and keep product quality.
4.Reducer uses domestic famous brand which is specially used for plastic machinery,and gear is treated by grinding and nitriding.
5.Low voltage apparatus uses import brand with advantages of precise control and convenient operation .It also can be installed with programmable computer control and realize whole line intelligentize.
6.Vacuum Calibrating part uses special designed cooling system for helping product to cool and calibrate.
Model |
JG-MSX51/105 |
JG-MSX65/132 |
|
Screw dia. |
mm |
Ø51/Ø105 |
Ø65/Ø132 |
Screw quantity |
piece |
2 |
2 |
Screw speed |
r/min |
1-40 |
1-38 |
Main extruder power |
KW |
15 |
37 |
Heating power (approx) |
KW |
8 |
24 |
Output(approx) |
kg/h |
50-150 |
80-200 |
Model |
YF180 |
YF240 |
|
Max. product size |
mm |
180 |
240 |
Draw-off height |
mm |
150 |
150 |
Draw-off force |
KN |
2 |
2 |
Draw-off speed |
m/s |
0-5 |
0-5 |
Auxiliary machines total power |
KW |
35 |
35 |
Cooling water consumption |
m³/h |
6 |
6 |
Compressed air pressure |
Mpa |
0.6 |
0.6 |
1.12 Hours----Your reply will be replied within 12 hours.
2.Service----We offer your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional designers, free designs.
5.Certificates----Third-party verification service provider
6.Service----OEM service offered; Design service offered; Buyer label offered.
OR
1.Any inquires will be replied in the first time.
2.High quality products, competitive price, fast lead time.
3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
Our Corner
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in china.
2.In the plastic machinery field, we have more than 20 years of relevant experience.
3.Our products extend all over the national and over 60 countries and areas of the world.
4. Our spare parts are brand components.
5. Engineering team provide you with the most suitable model towards your products.
6. Technical training and service is the advantage of us.
7. Tongjia Machinery hopes to create nice future with clients from home to overseas.
8. Welcome overseas people to our factory site visits.

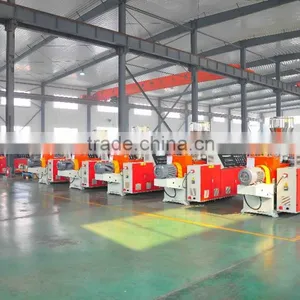

Our Strength
Our Certificate
1.Payment term: T/T,L/C;
2.Min order quantity:1 set or by negotiate with each other;
3.Service:Provide overseas service;
4.Tel:+86-537-2279166 2986622.
Your reliable supplier
With rich manufacturing experience and full strict control of raw materials, production and products inspection, we can provide good quality and competitive prices, timely delivery and excellent services. We sincerely would like to establish long-team business relationship with you.
