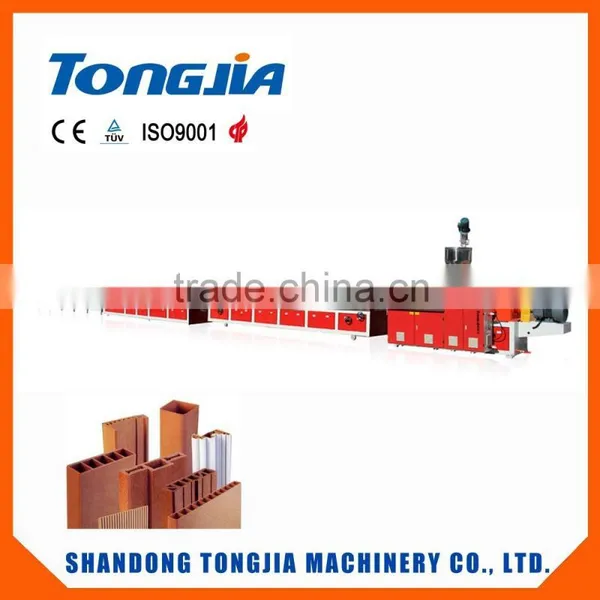

wpc profile production line
What is the details of our wpc profile production line ?
1. High-effciency extrusion equipment.
2. It also can be installed with programmable computer control and realize whole line intelligentize.
3. High yield, low cost.
4. Environmental protection.
What is the Specification of our wpc profile production line ?
| Model | JG-MSX51/105 | JG-MSX65/132 | |
| Screw dia. | mm | Ø51/Ø105 | Ø65/Ø132 |
| Screw quantity | piece | 2 | 2 |
| Screw speed | r/min | 1-40 | 1-38 |
| Main extruder power | KW | 15 | 37 |
| Heating power(approx) | KW | 8 | 24 |
| Output(approx) | kg/h | 60-150 | 100-250 |
| Model | YF180 | YF240 | |
| duct size | mm | 180 | 240 |
| Draw-off height | mm | 150 | 150 |
| Draw-off force | KN | 30 | 30 |
| Draw-off speed | m/s | 0-5 | 0-5 |
| Auxiliary machine's total power | KW | 19 | 30 |
| Cooling water consumption | m3/h | 6 | 7 |
| Conpressed air pressure | Mpa | 0.6 | 0.6 |

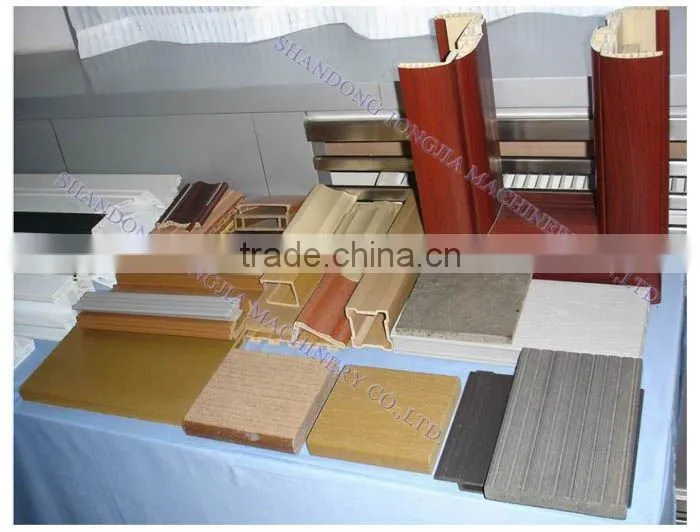

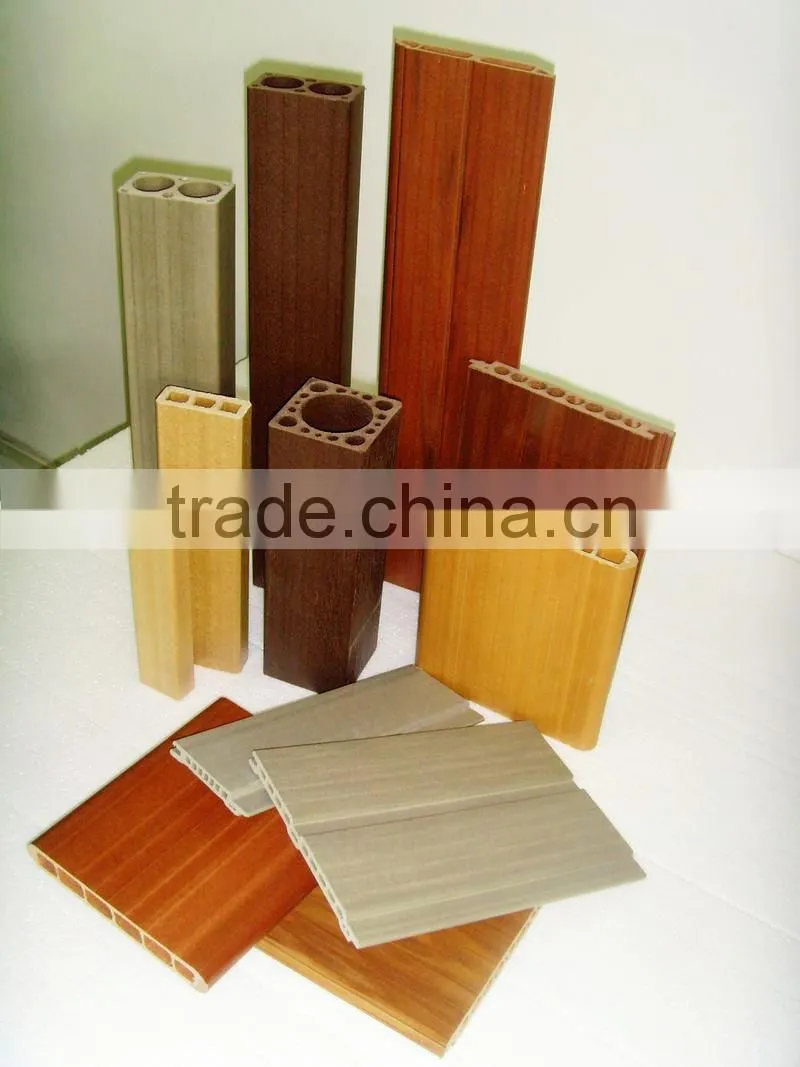

Product Photos
What is the Application of our wpc profile production line ?

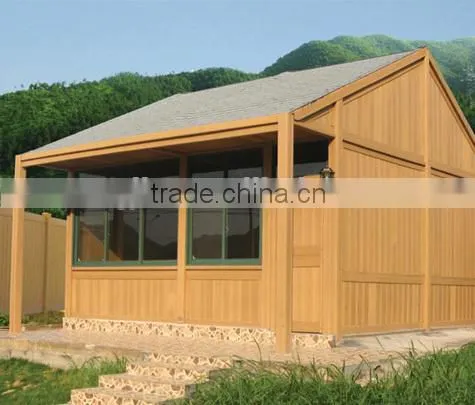

It has been widely used in fields of floor,guard bar,tray,packing cases,partition noard,window and door sheath,skirting line etc.
Why Choose US ?
1. We are Alibaba 10 years Gold Supplier.
2. We are a factory manufacturing plastic machinery, best production, best quality control, best service.
3. Inspected by the inspection institution of Bureau Veritas Certification.
4. 100% QC inspection before shipment.
5. CE listed, competitive price.
Company View
Our Cooperation
Our products extend all over the national and over 60 countries and areas of the world. And below is our customer acceptance of the scene, we are very much look forward to your cooperation.
FAQ
Q1:What’s your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller’s factory) or the Seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.
Q2:What’s your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3:Painted with anti-corrosion oil, and covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C.
Q8:What’s your contact way?
A8:Tel:+86-537-2279166, +86-537-2986622
Q9:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A9:Please click the “send” at the bottom of this page or contact our sales on Trade Mange online!
