Help CenterPlastic Water Tank Machine
Related Products
Specifications
1.plastic water tank machine2.hard-wearing, long service life
3.environmentally friendly
4.CE and ISO
This series machine is mainly used for producing 3 gallon and 5 gallon drinking water tank, lampshade, etc.
plastic water tank machine

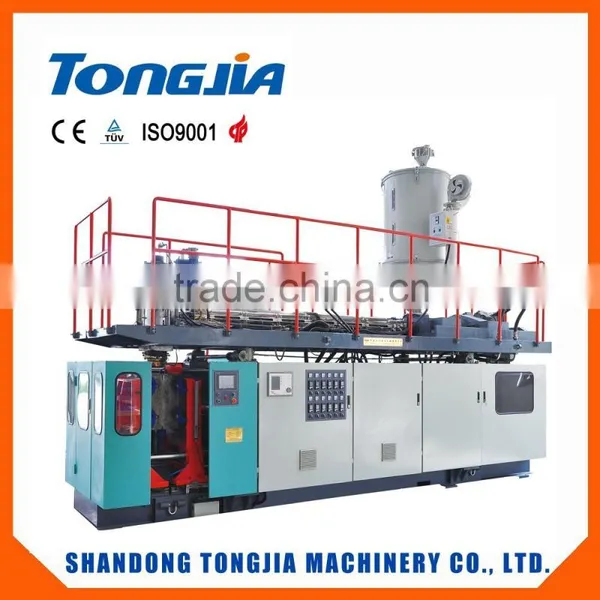

Plastic Water Tank Machine
Characteristic of the Plastic Water Tank Machine
1. Adopts import hydraulic control system. plastic water tank machine
2.Steady capacity and energy conservation. plastic water tank machine
3.The international most advanced parison control system. plastic water tank machine
4.Low cost. plastic water tank machine
Main technical specification
Model |
TJ-ZK82PC |
|
Material |
PC |
|
Max.Capacity of product |
L |
20 |
Number of die |
set |
1 |
Dimensions(L×W×H) |
m |
6.3*2.3*4.5 |
Machine weight(approx) |
T |
12.8 |
Claming force |
KN |
220 |
Distance between platens |
mm |
350-780 |
Max.size of mould(W×H) |
mm |
550*650 |
Driving power of main extruder |
KW |
30 |
Motor power of oil pump |
KW |
45 |
Total power(approx) |
KW |
75 |
Water pressure |
MPa |
0.2-0.3 |
Water consumption |
L/min |
60 |
Air pressure |
Mpa |
0.8 |
Air consumption |
m3/min |
1.6 |
Average energy consumption(approx) |
KW |
45 |
Dia.of main screw |
mm |
82 |
L/D ratio of screw |
L/D |
38:1 |
Number of heating zone of die |
zone |
4 |
Heating power of die |
KW |
12.3 |
Application of the Plastic Water Tank Machine

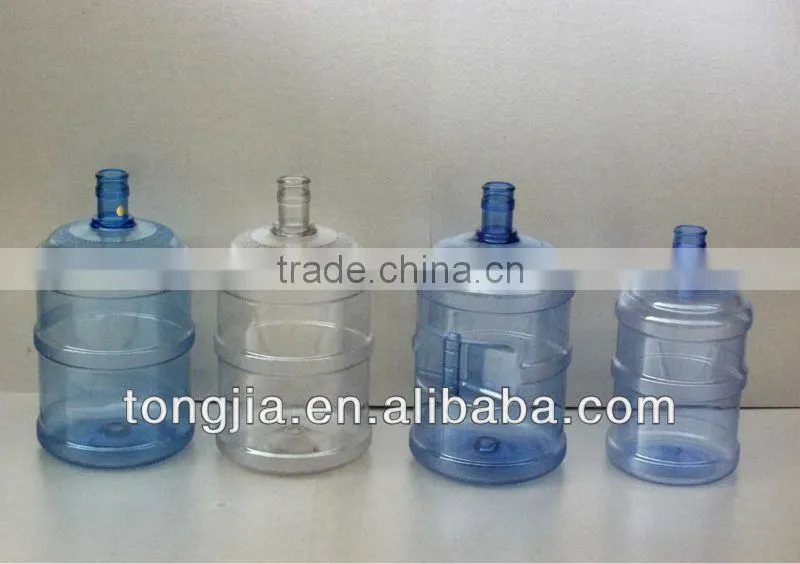

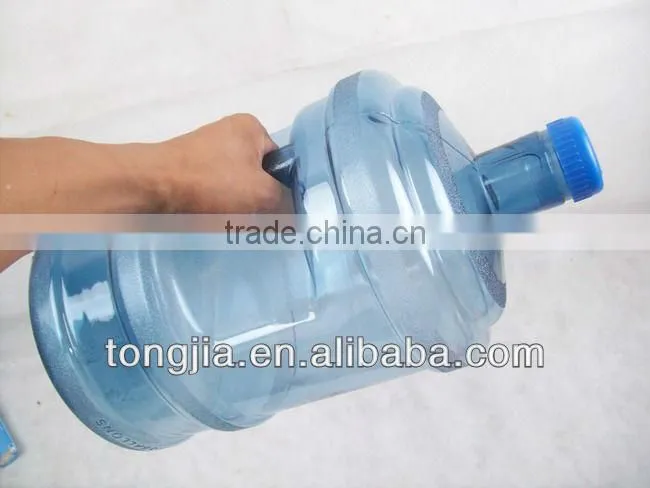

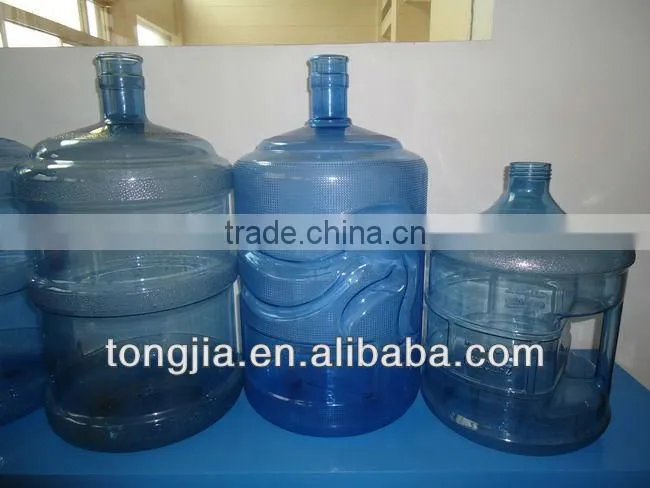

This series machine is mainly used for producing 3 gallon and 5gallon drinking water tank, lampshade.
plastic water tank machine

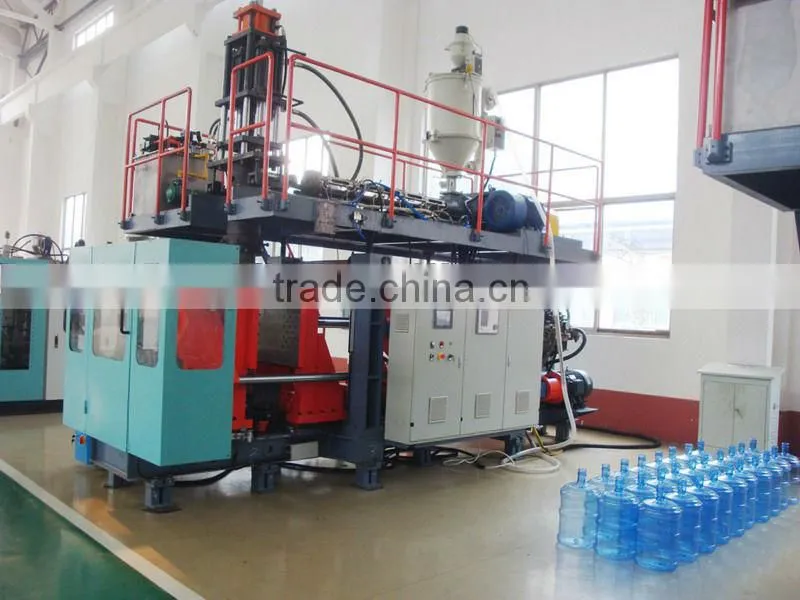

Product pictures
plastic water tank machine
1.Any inquires will be replied in the first time. plastic water tank machine
2.High quality products, competitive price, fast lead time. plastic water tank machine
3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment. plastic water tank machine
5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in china. plastic water tank machine
2.In the plastic machinery field, we have more than 20 years of relevant experience. plastic water tank machine
3.Our products extend all over the national and over 60 countries and areas of the world.
4.Our spare parts are brand components. plastic water tank machine
5.Engineering team provide you with the most suitable model towards your products.
6.Technical training and service is the advantage of us. plastic water tank machine
7.Tongjia Machinery hopes to create nice future with clients from home to overseas.
8.Welcome overseas people to our factory site visits. plastic water tank machine
Our strength
plastic water tank machine
Note: We participate in the exhibition, as Beijing Asia Pacific Exhibition, The China Export Commodities Fair, Guangzhou Yashi Exhibition, Shanghai Yashi Exhibition. plastic water tank machine
1.Payment term: T/T,L/C; plastic water tank machine
2.Min order quantity:1 set or by negotiate with each other; plastic water tank machine
3.Service:Provide overseas service; plastic water tank machine
4.Tel:+86-537-2279166 2986622; plastic water tank machine
5. Warranty:12 months after installation in local place. plastic water tank machine
Your reliable supplier
With rich manufacturing experience and full strict control of raw materials, production and products inspection, we can provide good quality and competitive prices, timely delivery and excellent services. We sincerely would like to establish long-team business relationship with you. plastic water tank machine
