Help CenterOil Bottle Blowing Machine
Related Products
Specifications
1.oil bottle blowing machine2.the well-designed die head and screw
3.high yield
4.CE and ISO
The international most advanced parison control system, get beautiful products with uniform wall thickness.

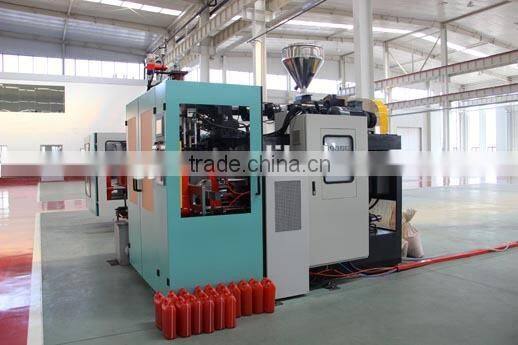

oil bottle blowing machine
Characteristic of the oil bottle blowing machine
1.Steady capacity and energy conservation.
2.It can add transparent mark line.
3.Automatic labelling system.
4.Best energy saving, low cost.
Main technical specification
Specifications |
JG-ZK65S |
JG-ZK70S |
JG-ZK75S |
|
Material |
|
PE, PP, PVC, PA, ABS… |
||
Max. capacity of product |
L |
2 |
9 |
12 |
Die quantity |
set |
1, 2, 4 |
||
Dimensions(L*W*H) |
m |
2.2*1.32*2.15 |
2.9*2.1*2.85 |
3.3*3.2*3.1 |
Total weight |
T |
3 |
5.5 |
6 |
Extrusion system | ||||
Dia. of main screw |
mm |
45 |
65 |
75 |
L/D ratio of screw |
L/D |
25 |
25 |
25 |
Clamping system | ||||
Clamping force |
KN |
25 |
40 |
110 |
Distance between platens |
mm |
100-320 |
100-550 |
240-620 |
Max. size of mould(W*H) |
mm |
220*270 |
350*400 |
530*510 |
Power |
|
|
||
Driving power of main extruder |
KW |
5.5 |
15 |
22 |
Motor power of oil pump |
KW |
5.5 |
5.5 |
11 |
Total power |
KW |
20 |
42 |
45 |
Water pressure |
MPa |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
Water consumption |
L/min |
25 |
50 |
60 |
Air pressure |
MPa |
0.7 |
0.7 |
0.6 |
Air consumption |
m³/min |
0.4 |
0.4 |
0.8 |
Average energy consumption |
KW |
13 |
20 |
25 |
Application of the oil bottle blowing machine
This series machine is mainly used to produced 0.1L-12L packing containers.It is suitable to produce lubrication oil barrels, chmical barrels and xivilian use packing bottles in bulk.

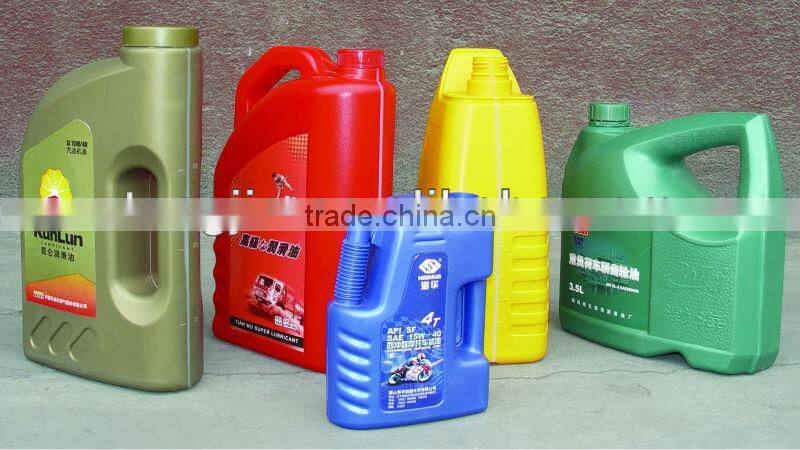

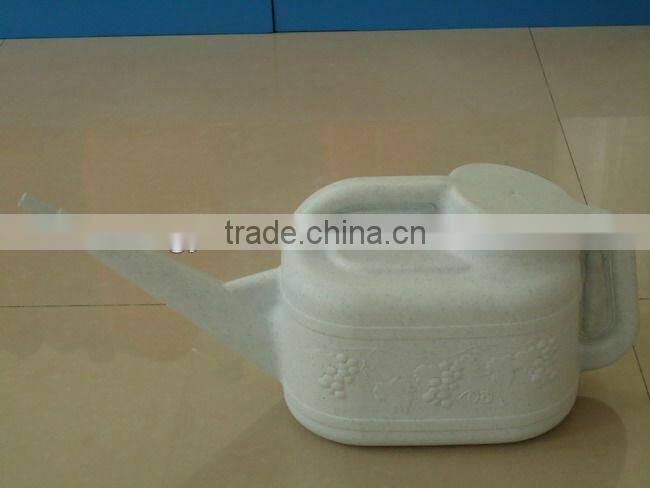

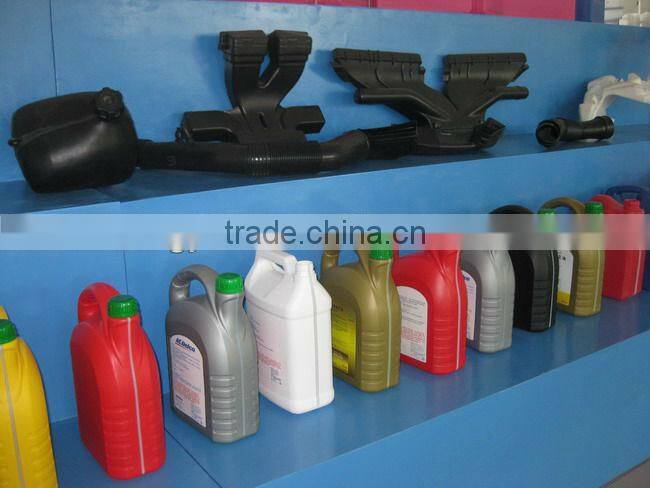

Product pictures
1.Any inquires will be replied in the first time.
2.High quality products, competitive price, fast lead time.
3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
6.Enterprises passes the ISO9001:2000 quality system certification and products has the CE certificate.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in china.
2.In the plastic machinery field, we have more than 20 years of relevant experience.
3.Our products extend all over the national and over 60 countries and areas of the world.
4.Our spare parts are brand components.
5.Engineering team provide you with the most suitable model towards your products.
6.Technical training and service is the advantage of us.
7.Tongjia Machinery hopes to create nice future with clients from home to overseas.
8.Welcome overseas people to our factory site visits.
1.Payment term: T/T,L/C; oil bottle blowing machine
2.Min order quantity:1 set or by negotiate with each other; oil bottle blowing machine
3.Service:Provide overseas service; oil bottle blowing machine
4.Tel:+86-537-2279166 2986622; oil bottle blowing machine
5. Warranty:12 months after installation in local place. oil bottle blowing machine
Your reliable supplier
With rich manufacturing experience and full strict control of raw materials, production and products inspection, we can provide good quality and competitive prices, timely delivery and excellent services. We sincerely would like to establish long-team business relationship with you. oil bottle blowing machine
