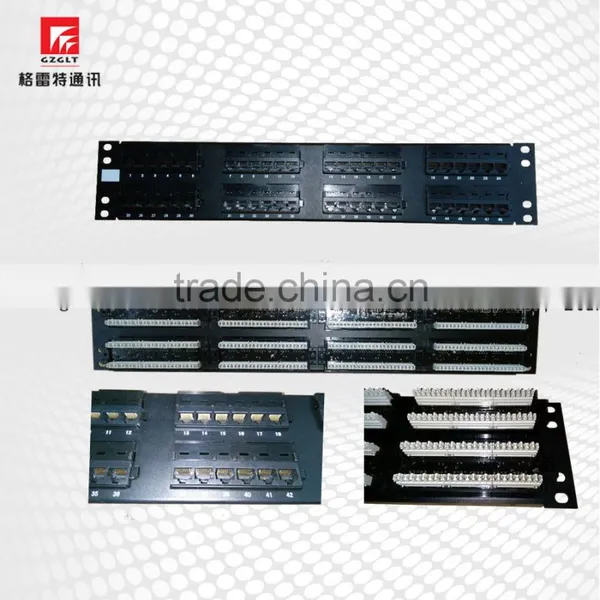

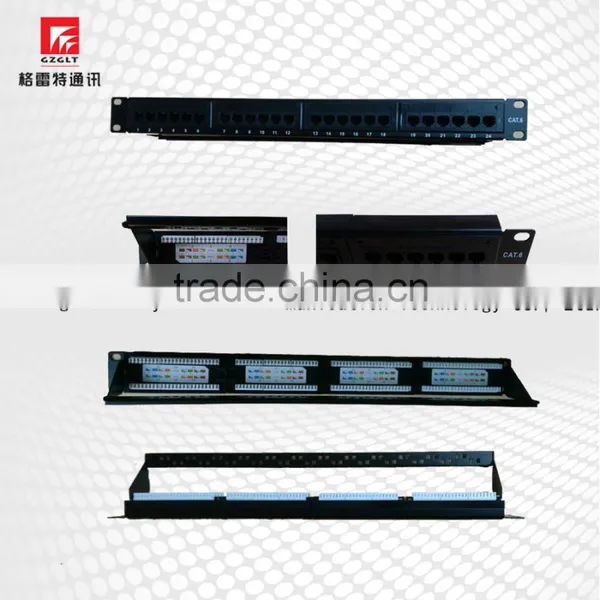

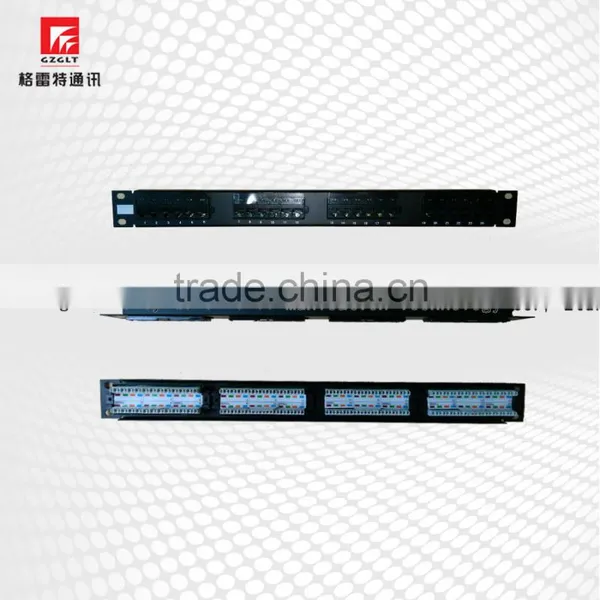

Help Center24 Ports UTP Cat5e/Cat6 Patch Panel 19'' 1U, Krone & 110 Dual IDC, With or WT Back Bar
Related Products
-
Fiber Distribution Terminal Frame ODF ANegotiableMOQ: 1 Unit -
4u~47u 19'' Standard Wall Mounted and Floor Standing Network CabinetNegotiableMOQ: 1 Unit
-
GLT3 Server CabinetNegotiableMOQ: 1 Unit
-
Fiber Cable Cross Connect CabinetNegotiableMOQ: 1 Unit
-
Digital Distribution Frame (DDF)NegotiableMOQ: 1 Set

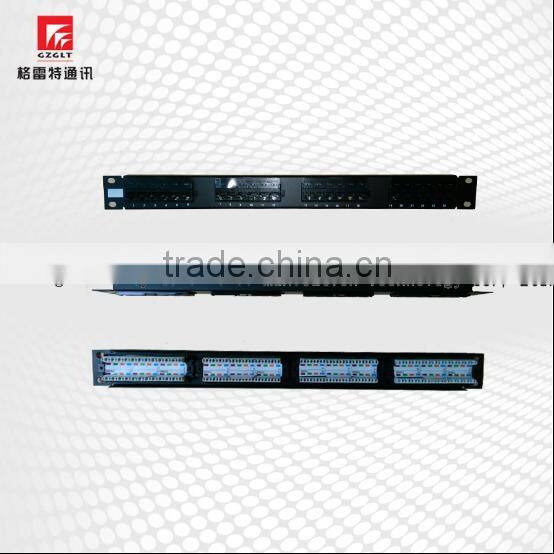

cat.5e 24 port patch panel
Quick Details
Place of Origin: |
Zhejiang, China (Mainland) |
Brand Name: |
Funway |
Model Number: |
CP240305 |
Type: |
Patch Panel |
Color: |
Black/White |
Port: |
24/48 |
IDC Accept: |
22/24/26 AWG Solid Wires |
Application: |
Networking |
Material: |
ABS or PC, UL94-V0 or UL94-V2 |
Termination: |
Dual IDC |
OEM: |
YES |
Packing: |
Inner Box |
Product Name: |
rj 45 / cat.5e 24 port patch panel |
|
|
|
|
Packaging & Delivery
Packaging Details: |
Standard export carton |
Delivery Detail: |
10-25 days after received the deposit |
Product Description
Production |
CAT 5e UTP 24-port patch panel |
Termination |
Dual IDC |
Available |
T568A/B wiring pattern |
IDC contact material |
phosphor bronze with tin/silver/gold plating over nickel |
Contact material |
phosphor bronze with 6 to 50 U" gold plating over nickel |
Panel frame |
Black or Ivory electrostatic powder-coated steel |
Inserting duration |
≥ 750 times |
Punching duration |
≥ 250 times |
Insulation Resistance |
500M-ohm |
Dielectric withstand voltage |
1000V AC RMS, 60Hz 1min |
Housing material |
ABS or PC, UL94-V0 or UL94-V2 |
Place of Origin: |
Guangzhou China (Mainland) |
Brand Name: |
GLT |
Model Number: |
SMT-2032D24C6 |
Housing: |
Steel with Black Painting |
Wiring scheme: |
T568A/B |
Spring Wire: Phosphor Bronze with gold-plated 3 u |
Phosphor Bronze with gold-plated 3 u-50u |
IDC Contact: |
Phosphor Bronze with nickle plated 100u |
IDC Accept: |
22-26AWG Solid Wire |
Specification: 19inch ,1U |
19inch ,1U |
Test Standard: |
TIA CAT6 Perm Link |
IDC Design: |
Dual IDC |
|
|
Packaging Details: |
10 PCS/CTN(53cm* 32cm*23Ccm), OEM Packing can provide |
Delivery Detail: |
10-15 days |
Description:
This PCB 1u patch panel comes complete with cable management, accessories and full installtion instruction.
Application:
-Horizontal Distribution & Backbone Cabling
-4/16 Mbps Token Ring
-155 Mbps ATM
-100 Mbps TP-PMD
Technical Details:
Electrical/Mechanical Characteristics
Current Rating: |
1.5 Amps |
Insulation Resistance: |
500 Megaohm |
DC Resistance: |
0.1 ohm MAX |
Contact Resistance |
20 Mili-ohm |
Voltage: |
150 VAC MAX |
Insertion Life: |
≥ 1000 Mating Cycles |
Plug Retention Force: |
89N |
Temperature: |
— 60~80 °C |
Humidity |
10%-90% RH |
IDC Accept: |
22-26 AWG Solid Wire |
Wire Scheme: |
T568A/B |
Material:
Panel |
Cold rolled steel(thickness1.5mm) |
Back Bar |
Cold rolled steel(thickness1.5mm) |
Housing |
ABS |
Spring Wire |
Phosphor Bronze With Gold-plated 3u -50 u |
IDC Contact |
Phosphor Bronze |
IDC Holder |
High Impact PC |
Guangzhou geleite Communication Science & Technology Co., Ltd was built in April, 1997. As a growing private hi-tech stock company, all of our staffs keep developing based on the management ideal of "regard customers as center, honest, creditable, more profit", now it has became a modern enterprise with high technology, strong production capacity, scientific management.
currently the products and services that company sales and offers are extended telecommunication, Unicom, CTT, electricity, China Mobile, nation defense, finance, education, stock, government and other large communication company, which receive widely reputation by clients.
The company owns over 3000 m2 factory area, with complete production facility, high accuracy processing, wealthy production and processing ability; exact testing equipment, complete testing project, complete office facility, achieve resource sharing and accelerate flow of information via intranet. The company set up functional department which can meet every management's demand plenty, it owns more than 200 well-trained management, operating and check staffs. All of the products developers and designers are of degree or above, close follow international advanced technology, scientific plot and control designing processing, adopt CAD to ensure our products' technology. The company continuous systemic training to ensure management and operating staffs' professional skill, so that meets the demand of enterprise manufacture

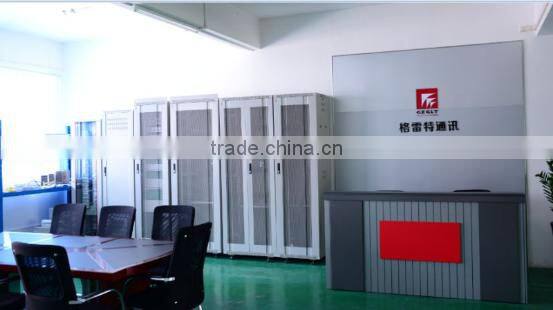

Company reception desk
Representatives of outstanding staff
Assemble
Install the Bunchy pigtail
Packing

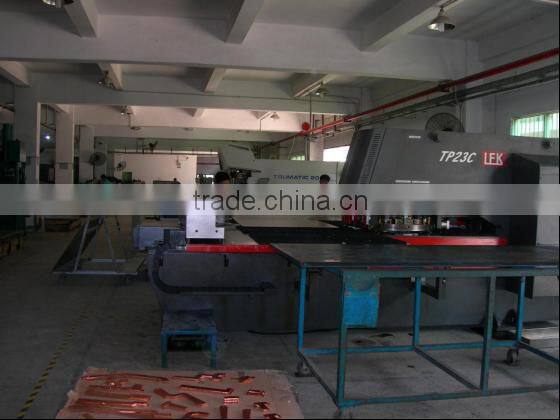

Sheet metal workshop
Quality control workshop
Business license
Related qualifications
