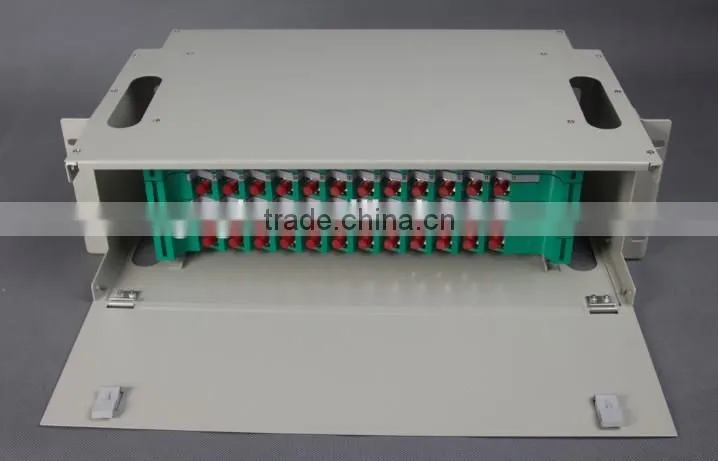

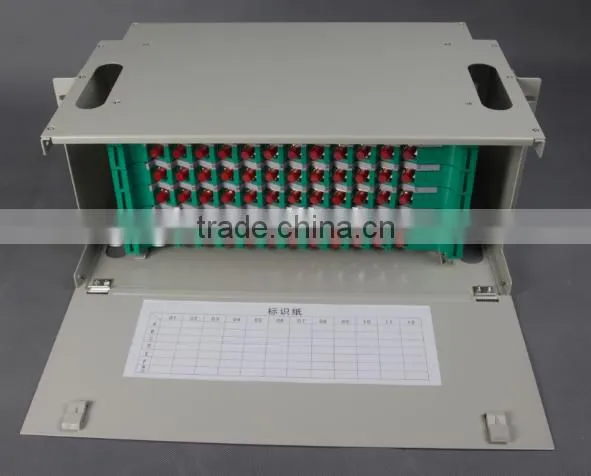

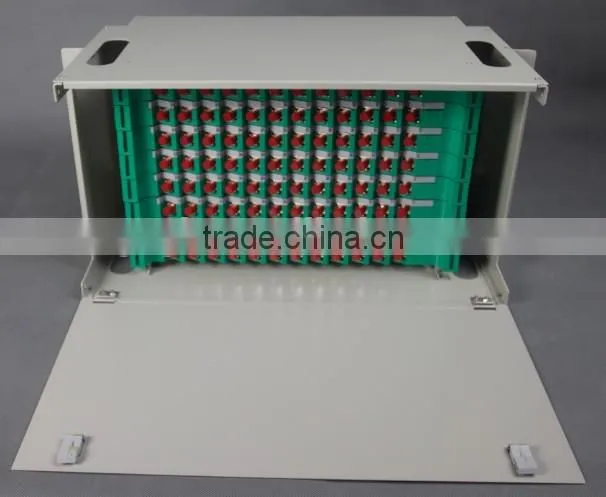

Best Fiber Optic Distribution Frame Unit ODF With Adaptor For 12,24,48,72,96,144 Cores

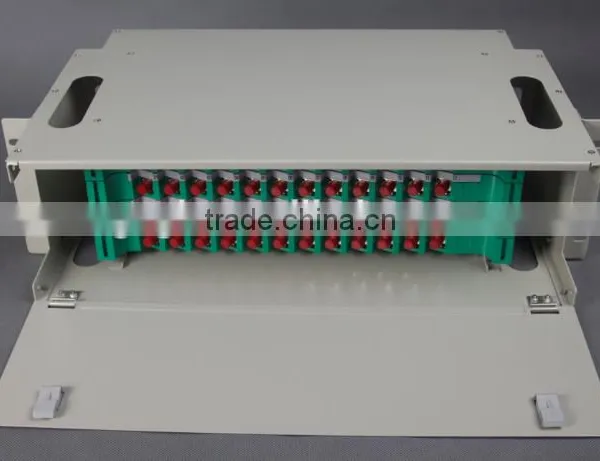

Fiber Optic Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
v Standard size, light weight and reasonable structure
v Splice tray inside changeable
v Can be used in 19''standard distribution frame
v Suitable for ribbon and single fiber
v Various panel plate to fit different adapter interface

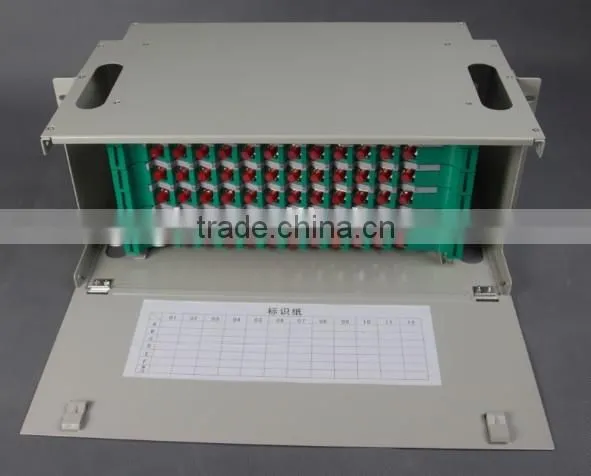

v Front mark on the plate is easy for identification and operation
v 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
v Easy for management and operation
Electricity Performance:
Environmental temperature |
-40~+60°C |
Atmosphere pressure |
70~106Kpa |
Insertion Loss |
≤0.2 dB |
Relative humidity |
≤95%(when the temperature is over 40°C) |
Return Loss |
PC: ≥40dB UPC: ≥50dB APC: ≥60dB |
Pluggable Durability |
>1000 |
It can be customized as your request.
Name |
Model |
Size(mm) |
Maximum capacity |
12 cores ODF unit |
GPX72-A12 |
1U 45*485*260 |
12 |
24 cores ODF unit |
GPX72-A24 |
2U 89*485*260 |
24 |
48 cores ODF unit |
GPX72-A48 |
3U 133*485*260 |
48 |
72 cores ODF unit |
GPX72-A72 |
4U 178*485*260 |
72 |
96 cores ODF unit |
GPX72-A96 |
|
96 |

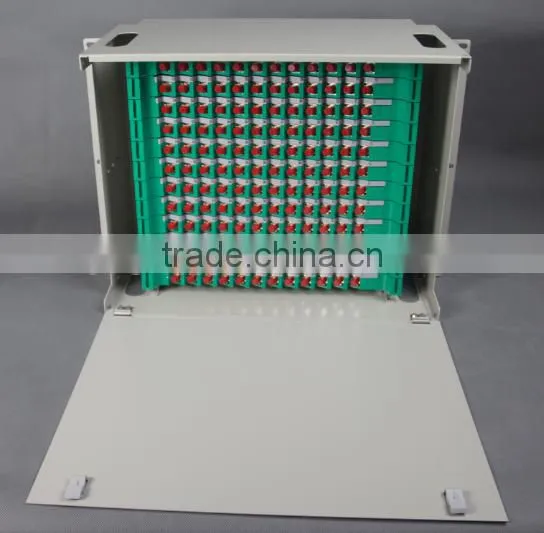

144 cores ODF unit |
GPX72-A144 |
|
144 |

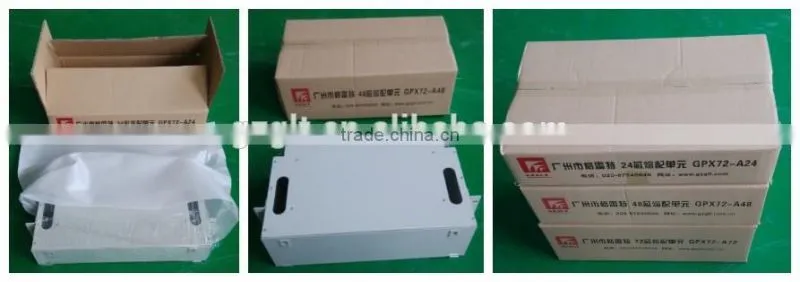

Package:
Shipping:
Contact me,24 hours online!
Skype:Haru Lo
Trade Manager:gzglt1997
Or send me inquiry below!
