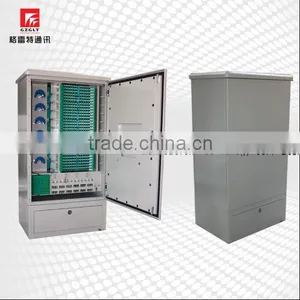

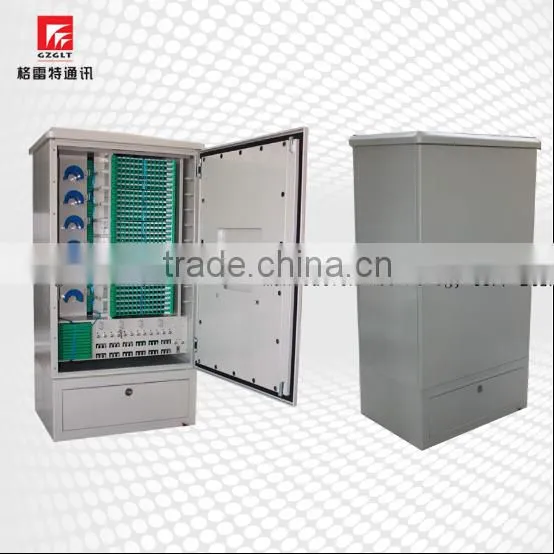

Fiber optic cross cabinet is used for connecting trunk and distribution optical fiber cable,it carries out the function of splicing,storage,and distribution.It is mainly used in the CATV,telecommunication equipment room and network equipment room
Structure Characteristic:
•Modular design provides the largest flexibility, satisfy the needs of the present and future development
•The body using the stainless steel and surface using electrostatic spray so it has good corrosion resistance and anti-aging function, the wind protection class of the body achieves the IP66 level. The effect of defense dewing is excellent.
•The module tray can spin out of 90 degrees around the axis in the left front, and the bevel of the adapters within the module takes on 30 degrees. The clip-locked installation ensures the bending radius of the fiber directly and prevents the eyes from injury.
•Weld disk can spin out of 90 degrees, and then draw out, so its convenient to construction, and also convenient to expansion and maintenance
•Have doors in the front and back, have ample space for cabling, convenient to operation and maintenance
•
•Have reliable device for fastness, peeling and grounding of the optical cables
•Insulation resistance between high voltage protection earth and box20,000MΩ /500V (DC)
•Bearing pressure voltage> 3000VAC (50Hz) 1min not breakdown, arcings
•Mechanical Durability Test : ≥1000 times

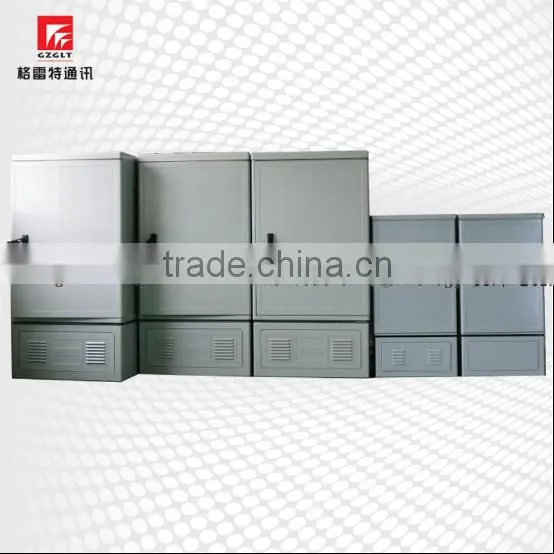

Type
Size of outside(mm)
Remark Fiber quantity
FOCC-576 1450(L)*360(W)*1500(H) left-right double doors 576 ports
FOCC-576 750(L)*320(W)*1450(H) front-back single door 576 ports
FOCC-288 750(L)*320(W)*1435(H) / 288 ports
FOCC-144 550(L)*300(W)*1035(H) / 144 ports
Feature:
•High quality
•12 ports one tray
•30 degree installation of adaptors,preventing eyes from laser's hurt
•Easy to operate and convenient maintenance
•The tray suitable for FC,SC adapters
Application:
•Telecommunication
•CATV
NO. |
Name |
Model
|
Material Science |
Size(mm) |
maximum capacity |
01 |

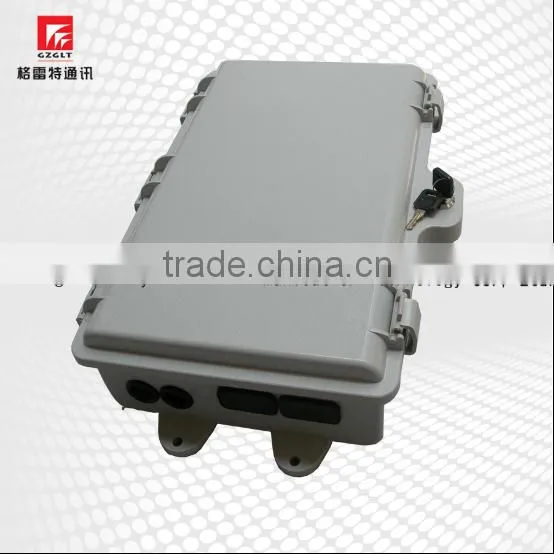

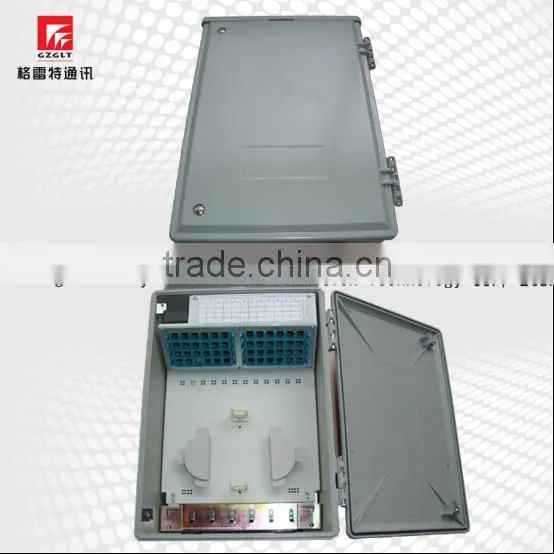

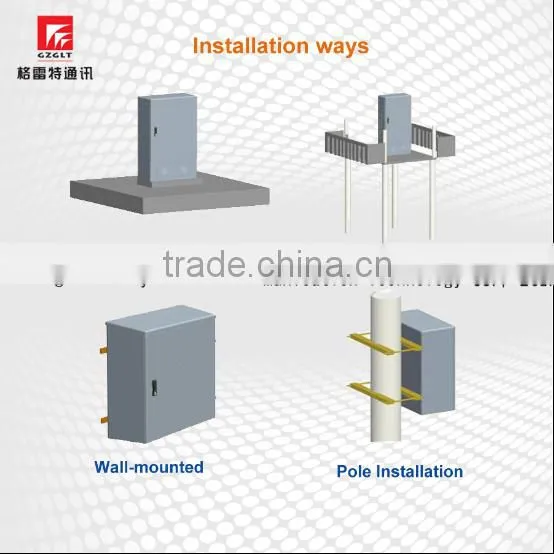

24 cores fiber cable cross connection cabinet (Wall mounted) |
GPX80-A24 |
SMC: |
420×320×120 |
24 |
02 |
48 cores fiber cable cross connection cabinet (Wall mounted) |
GPX80-A48 |
SMC: |
450×315×185 |
48 |
03 |
72 cores fiber cable cross connection cabinet (Wall mounted) |
GPX80-A72 |
SMC: |
450×315×185 |
72 |
04 |
144 cores fiber cable cross connection cabinet(pole mounted) |
GPX80-B144 |
SMC: |
960×525×325 |
144 |
plastic |
450×315×185 |
||||
05 |
288 cores fiber cable cross connection cabinet(pole mounted) |
GPX80-B288 |
SMC: |
1150×750×325 |
288 |
plastic |
1450×750×320 |
||||
06 |
576 cores fiber cable cross connection cabinet(pole mounted) |
GPX80-B576 |
SMC: |
1450×750×620 |
576 |
plastic |
1450×750×640 |
Parameter:
Company reception desk
Representatives of outstanding staff
Assemble
Install the Bunchy pigtail
Packing
Sheet metal workshop
Business license
Related qualifications
