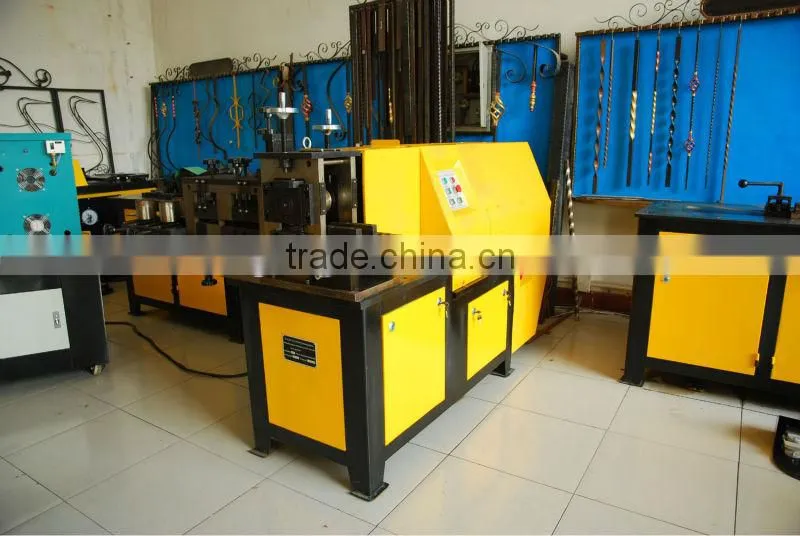

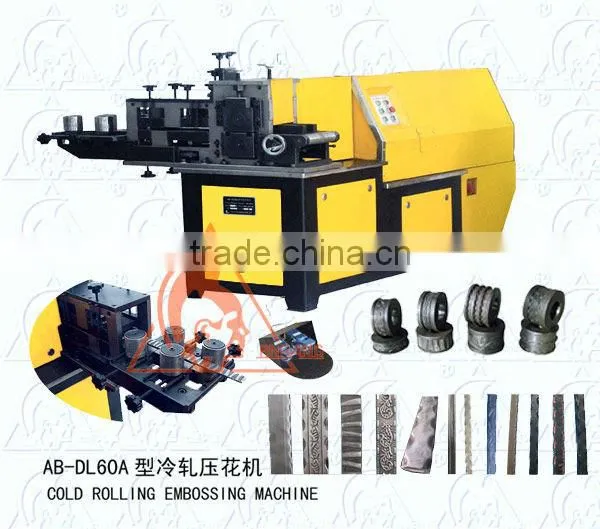

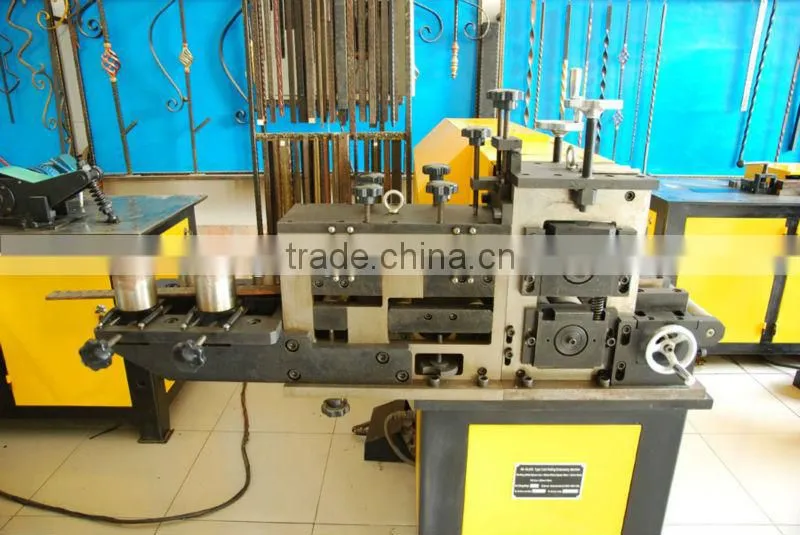

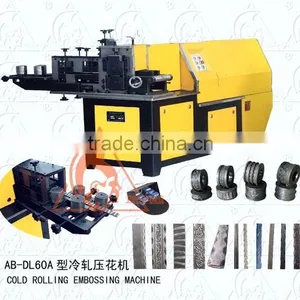

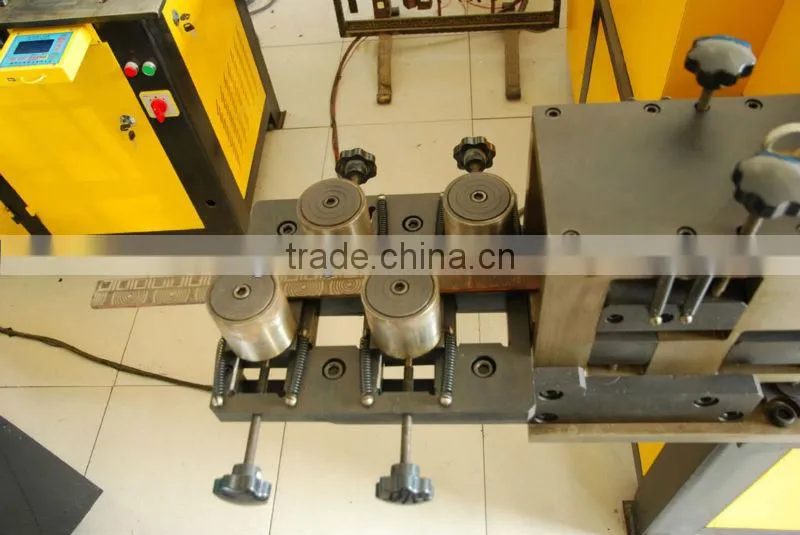

AB-DL60A Cold rolling embossing machine
- 1000 Set / Sets per Month
- TIANJIN XINGANG
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
Place of Origin: | Hebei, China | Brand Name: | ANBANG | Model Number: | AB-DL60A |
Product Description
Specifications
This machine is the special equipment for cold rolling or forging materials.
This machine is the special equipment for cold rolling or forging materials. Its advent breaks through the forging material monopolization of imported equipments, and it can convert mediocre into miracle only by rolling and thus the common steel products become super sectional materials. The machine has established the way for the high-grade iron craft work forging iron work popularization, and met the rush market, and it will yield very good social returns. The machine can process embossed and indented flat iron materials.
There are 15 kinds of attachment dies, otherwise 160 kinds of the dies for choosing.
Technological Depiction
| AB-DL60A COLD ROLLING EMBOSSIING MACHINE | |
Max Work Ability | Flat Iron | ≤10mm×60mm |
Square Steel | ≤25mm×25mm | |
Square Tube | ≤60mm×60mm | |
Rolling Speed | 380M/H | |
Motor Performance | Power: 5.5KW Voltage: 380V | |
Main Features | 1)This machine using modular composite structure, rational design and advanced technology. 2)It used cyclonical two-speed reducer, running smooth, safe and reliable 3)Comprehensive processing performance, and cold-rolled moderate speed, a leveling, straighten framework. 4)It has manual control and foot switch. High Production efficiency. | |
Packing Dimension | 1900MM*710MM*1420MM | |
N. W.(kg) | 1180 | |
G. W.(kg) | 1300 |
