Specifications
The machine can twist not only pretzel shape but also flower basket (bird cage).The machine is special electric equipment for iron craftwork processing, and it makes use of the plastic metal deformation in warping to convert the material into pretzel shape resulting in esthetical art. The machine is set by timer control with automatic repetition, and can powerfully and efficiently twist metal material into pretzel shape and flower basket shape. Take apart the stretching slide guide of the torsion and twist tailstock, then push on the flower basket mechanism and connect it with the original power outlet to twist flower basket shape. If we replace the flower basket mechanism with the torsion and twist tailstock, we can twist pretzel shape again. Therefore the machine can twist not only pretzel shapes but also flower basket (bird cage) shapes.
1. Pretzel twisting ability:
1). Length: 200 - 800mm
2). Specification ≤25 x 25mm
2. Processing flower basket material size:
1). Square steel: 6 x 6mm, 7 x 7mm, 8 x 8mm
2). Round steel: Φ6mm, Φ8mm
3. Quantity at one time processing: ≤8mm, 4 bars
4. Basic shaft rotation speed:
1). Fast speed: 12.6r/min
2). Slow speed: 10r/min (slow speed for pretzel twisting)
5. Electric motor performance:
1). Power: 3kW (class 6)
2). Electric voltage: 220V / 380V
3). Frequency: 50Hz
4). Rated current: 6A
6. Main features:

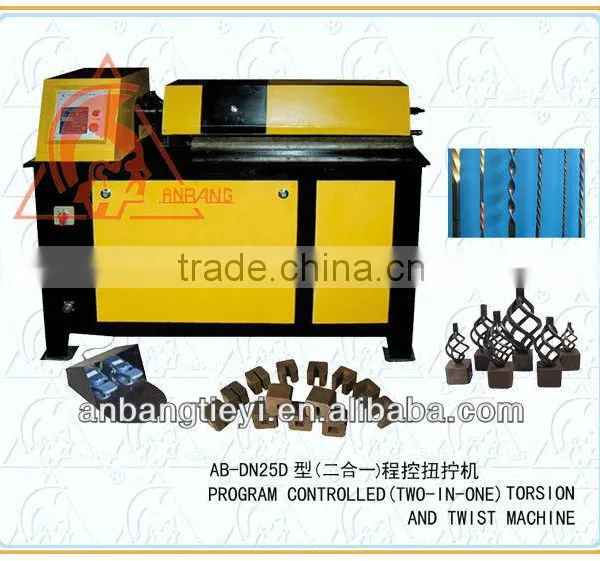

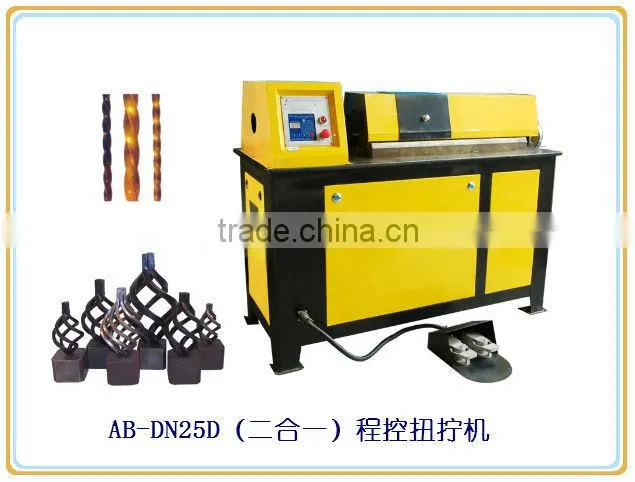

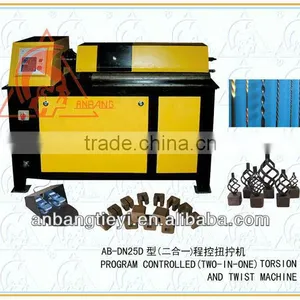

1). The AB-DN25B type (two-in-one) torsion and twist machine is made with all the performances and properties of the original machine
2). The flower basket processing mechanism is installed in the original electric torsion and twist machine, and uses its holster and dynamic power parts. We have added the important flower basket (bird cage) twisting function, but the price has increased not much, thus the clients cost less and benefit more

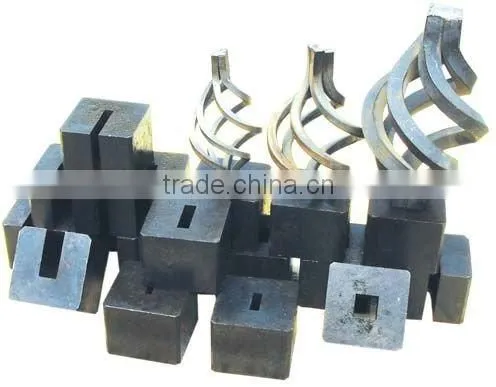

3). It can produce 6 x 6mm, 7 x 7mm and 8 x 8mm four-strand flower basket shaped irons, as well as a kind of eight-strand flower basket shaped irons. The standard flower basket shaped irons are usually made of the 150mm, 170mm and 210mm long materials. The clients can change the length according to the need to get the baskets of different shapes
4). The flower basket processing mechanism is made with the following properties: rational design, convenient operation and high efficiency, and it can produce 500 - 600 baskets per shift
5). The products produced by this mechanism have the following advantages: uniform shape, canonical size, and standard and beautiful basket body, up to the export requirements
7. External dimensions (L x W x H): 1,400 x 620 x 1,100mm
8. Weight: 650kg
