Specifications

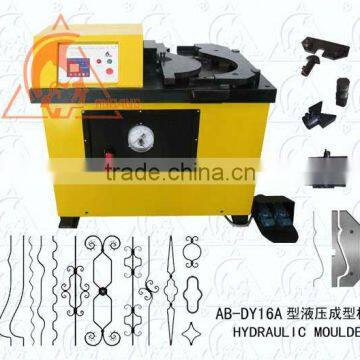

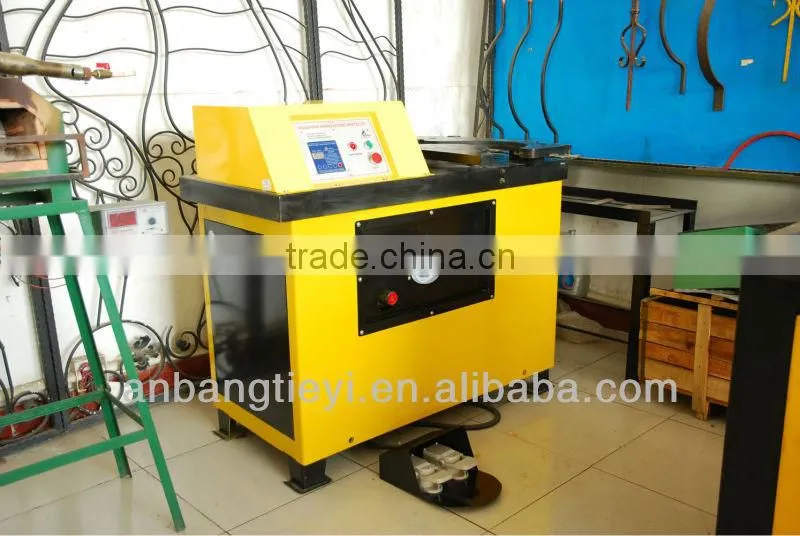

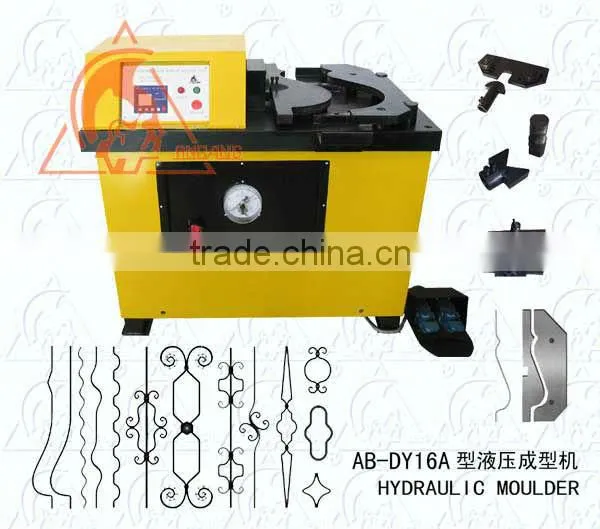

AB-DY16A Hydraulic MoulderAB-DY16A Hydraulic Moulder can extrude square steel, round steel and flat iron into round, arc, angle and some different shapes in one time. Production efficiency and consistency of decorative pieces are Iron, furniture and furniture industries, municipal garden, construction equipment ideal

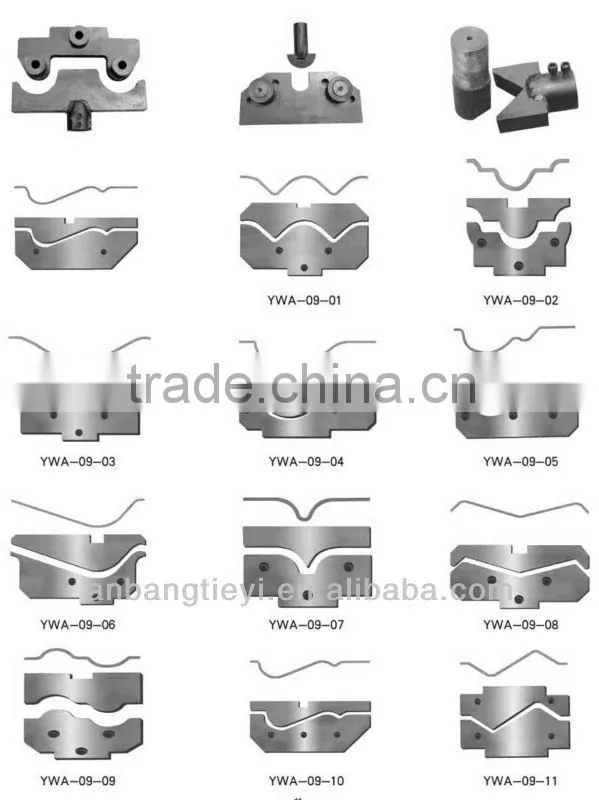

There are 4 sets dies come with the machine (1 set for angle bending and round stewing, 1 set for arc arching and alignment, 2 sets for extruding moulding).
Technological Depiction
|
AB-DY16A Hydraulic Moulder |
|
Max Working Ability |
Flat Iron |
≤10mm×50mm |
Round Steel |
≤Φ16mm |
|
Square Steel |
≤16mm×16mm |
|
Motor Performance |
Power7.5KW Voltage380V |
|
Main Features |
1)The machine can finish the moulding and processing of heteromorphosis iron craftwork with good consistency, and can process parts in batches and high efficiency. 2)It have manual control and pedal switch, it can be operated conveniently and reliably. 3)It is mechanically designed with proper structure, which can make sure the following: convenient operation and maintenance, expedient die and holding device replacement. 4)The working deck plate is made with rational size and location, ensuring that it is fit for 90% iron craftwork parts of various sizes in the bending and moulding industry. |
|
Packing Dimension |
1300mm×700mm×1400mm |
|
N.W. (kg) |
750 |
|
G.W. (kg) |
850 |
|
